Husqvarna Auto Mower 220 AC (2008-02) Auto Mower

Model: Auto Mower 220 AC (2008-02)

Back To Assemblies

Save Part Not Listed?
product name

Lower Chassis / Wheels

...
...
501003702
MAIN WIRING HUS-501003702
...
504200801
COVER WASHER HUS-504200801
...
535087601
WHEEL, FRONT HUS-575231701
...
535087801
WASHER, SEALING HUS-535087801
...
535091201
RETAINER, AXLE CAP HUS-535091201
...
535120901
BATTERY HUS-535120902
...
535122102
CUTTING HEIGHT NUT HUS-535122102
...
535122401
SPRING HUS-535122401
...
535123102
Circuits HUS-592852201
...
535125201
PLUG HUS-535125201
...
535125601
BRACKET HUS-535125601
...
535125701
LOUD SPEAKER HUS-535125701
...
535130310
SCREW HUS-535130310
...
535130310
SCREW HUS-535130310
...
535130314
SCREW HUS-535130314
...
535130314
SCREW HUS-535130314
...
535130316
SCREW HUS-575543316
...
535132901
WHEEL HUS-535132901
...
535135002
WHEEL LOGO ADDED HUS-535135002
...
535136003
GEAR WHEEL HUS-535136003
...
535137202
WHEEL MOTOR W/GEARBOX HUS-535137202
...
535138101
WHEEL MOTOR W/GEARBOX HUS-535137202
...
535139201
GASKET HUS-535139201
...
535139401
SCREW HUS-535139401
...
535139601
HOLDER HUS-535139601
...
540056401
PRINTED CIRCUIT ASSY PCBA AM22 HUS-592852001
...
544905202
HUB CAP HUS-544905202
...
544906802
HUB HUS-544906802
...
544907801
BRACKET HUS-544907801
...
544918302
CHASSIS 220AC HUS-544918302
...
734114571
Washer 0 5.3 HUS-734114571
...
735583509
WASHER HUS-735583509
...
738229555
BEARING HUS-738229555

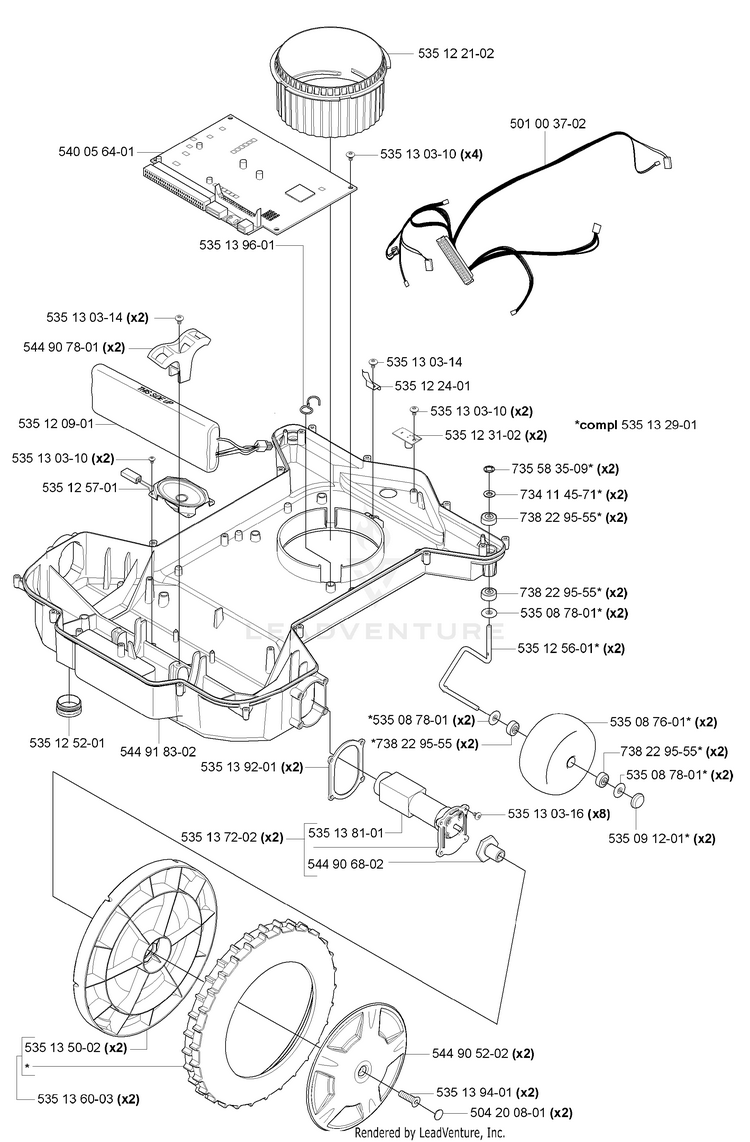

Schematic Image Zoomed
