Husqvarna Auto Mower (1999-02) Auto Mower

Model: Auto Mower (1999-02)

Back To Assemblies

Save Part Not Listed?
product name

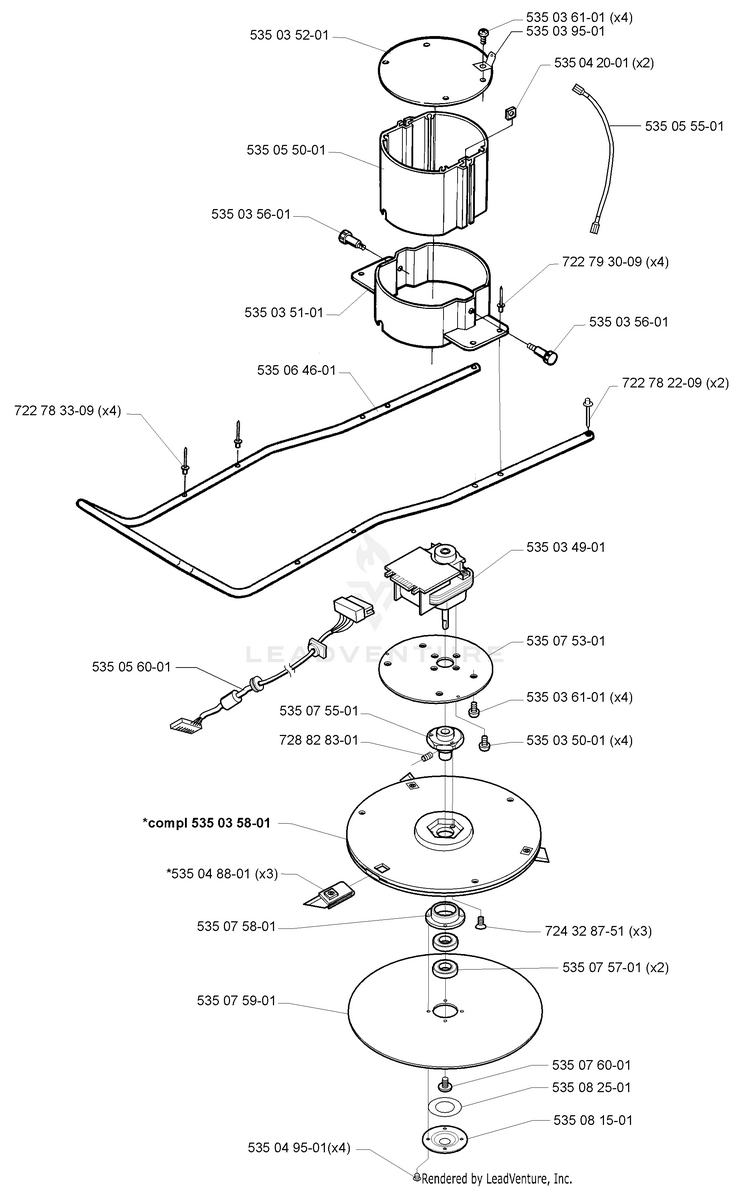

Motor/Blade System

...
...
535034901
MOTOR CUTTING HUS-535034901
...
535075301
COVER CUTTING MOTOR (New Part) HUS-535075301
...
535036101
SCREW HUS-535036101
...
535035001
SCREW, MOTOR HUS-535035001
...
724328751
Screw (New Part) HUS-724328751
...
535075701
SPACER (New Part) HUS-535075702
...
535076001
SCREW (New Part) HUS-535076001
...
535082501
GASKET (New Part) HUS-535082501
...
535081501
COVER SKID PLATE (New Part) HUS-535081501
...
535075801
HOLDER BEARING (New Part) HUS-535075801
...
535075901
PLATE SKID (New Part) HUS-535075901
...
535049501
SCREEW HUS-535049501
...
535075501
HUB CUTTING DISC (New Part) HUS-535075501
...
728828301
Setscrew Hub HUS-728828301
...
535035801
BLADE KIT HUS-535098602
...
535048801
CUTTING BLADE (SET 3) HUS-535048801
...
535056001
HARNESS HUS-535056001
...
722783309
RIVET POP HUS-722783309
...
535055001
HOUSING HUS-535055001
...
535035101
MOUNT CUTTING MOTOR HUS-535035101
...
535035601
BOLT HEIGHT ADJUSTMENT HUS-535035601
...
535035201
COVER CUTTING MOTOR HUS-535035201
...
535036101
SCREW HUS-535036101
...
535039501
TERMINAL GROUND HUS-535039501
...
535042001
NUT HEIGHT ADJUSTMENT HUS-535042001
...
535055501
GROUND HUS-535055501
...
722793009
RIVET POP HUS-722793009
...
535035601
BOLT HEIGHT ADJUSTMENT HUS-535035601
...
722782209
RIVET POP HUS-722782209
...
535064601
TUBE FRAME HUS-535064601
