Husqvarna AYP9182B79 (1997) Tractor

Model: AYP9182B79 (1997)

Back To Assemblies

Save Part Not Listed?
product name

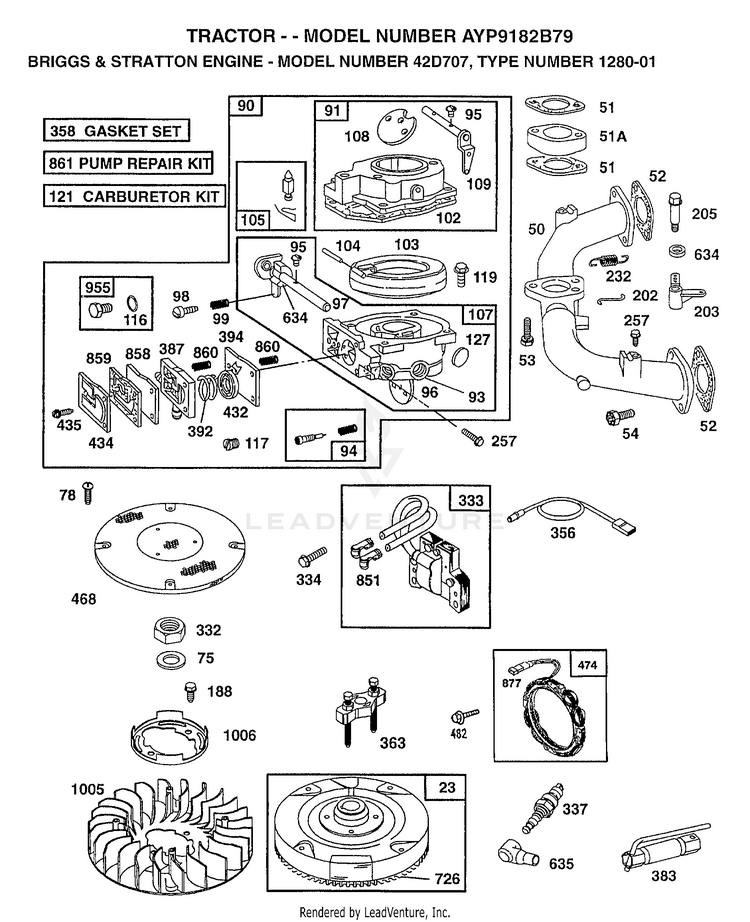

BRIGGS AND STRATTON ENGINE

...
...
1
CYLINDER ASSEMBLY HUS-497074
...
2
P/N CONFLICT - CHECK WITH SUPPLIER HUS-399265
...
3
SEAL, OIL HUS-391086
...
4
BASE ASSEMBLY, CRANKCASE HUS-493304
...
5
HEAD, CYLINDER #1 HUS-493457
...
5A
HEAD CYLINDER #2 HUS-493458
...
7
GASKET, CYLINDER HEAD #1 HUS-271867
...
7A
GASKET, CYLINDER HEAD #2 HUS-271868
...
8
BREATHER ASSEMBLY #1 HUS-495754
...
8A
COVER, BREATHER CYLINDER #2 HUS-222892
...
9
GASKET, VALVE COVER HUS-27803
...
10
SCREW, SEMS HUS-94382
...
10A
SCREW, SEMS HUS-94830
...
11
TUBE, BREATHER HUS-280225
...
12
GASKET, CRANKCASE, .015" THICK HUS-273208
...
12A
GASKET, CRANKCASE COVER,.005" HUS-271188
...
12B
GASKET, CRANKCASE COVER,.009" HUS-271189
...
13
SCREW, CYLINDER HEAD HUS-94565
...
15
PLUG, OIL DRAIN HUS-94239
...
16
CRANKSHAFT HUS-394028
...
16A
KEY, TIMING GEAR HUS-94196
...
20
SEAL, OIL HUS-291675
...
22
SCREW HUS-94724
...
23
FLYWHEEL & RING GEAR ASSY, MAGNETO HUS-491180
...
24
KEY, FLYWHEEL HUS-222698
...
25
PISTON ASSEMBLY STANDARD SIZE HUS-498584
...
25A
PISTON ASSEMBLY .010" OVERSIZE HUS-498585
...
25B
PISTON ASSEMBLY .020" OVERSIZE HUS-498586
...
25C
PISTON ASSEMBLY .030" OVERSIZE HUS-498507
...
26
RING SET, PISTON, STANDARD SIZE HUS-394959
...
26A
RING SET, PISTON,.010" OVERSIZE HUS-394960
...
26B
RING SET, PISTON,.020" OVERSIZE HUS-394961
...
26C
RING SET, PISTON,.030" OVERSIZE HUS-394962
...
27
LOCK, PISTON PIN HUS-263129
...
28
PIN, PISTON, STD SIZE HUS-498319
...
28A
PIN ASSEMBLY, PISTON .005" OVER HUS-391286
...
29
ROD ASSEMBLY, CONNECTING HUS-394306
...
29A
ROD ASSEMBLY, CONNECTING HUS-397158
...
32
SCREW, CONNECTING ROD HUS-94671
...
33
VALVE, EXHAUST HUS-390420
...
34
VALVE, INTAKE HUS-261528
...
35
SPRING, INTAKE VALVE HUS-65906
...
36
SPRING, EXHAUST VALVE HUS-26828
...
40
RETAINER, INTAKE VALVE HUS-221596
...
41
RETAINER, EXHAUST VALVE HUS-292260
...
42
KEEPER VALVE HUS-494553
...
45
TAPPET, VALVE HUS-261368
...
46
GEAR, CAM HUS-213520
...
50
MANIFOLD, INTAKE HUS-213290
...
51
GASKET, CARBURETOR & INTAKE ELBOE HUS-271412
...
51A
SPACER, CARBURETOR HUS-281411
...
52
GASKET, INTAKE MANIFOLD MOUNTING HUS-270884
...
53
SCREW, SEMS, CARBURETOR MOUNTING HUS-93970
...
54
SCREW, SEMS INTAKE MANIFOLDING MOUNTING HUS-93208
...
75
WASHER SPRING HUS-222511
...
78
SCREW HEX HUS-95039
...
90
CARBURETOR ASSEMBLY HUS-495181
...
91
BODY ASSEMBLY, UPPER CARBURETOR HUS-495035
...
93
BUSHING, THROTTLE SHAFT HUS-231209
...
94
VALVE ASSEMBLY, CARBURETOR IDLE HUS-491538
...
95
SCREW HUS-93499
...
96
VALVE, THROTTLE HUS-221939
...
97
SHAFT AND LEVER, THROTTLE HUS-392672
...
98
SCREW, MACHINE, FILLISTER HEAD HUS-91920
...
99
SPRING, THROTTLE ADJUSTMENT HUS-26157
...
102
GASKET, CARBURETOR BODY HUS-271607
...
103
FLOAT, CARBURETOR HUS-298514
...
104
PIN FLOAT HINGE HUS-231435
...
105
VALVE, FUEL INLET HUS-394683
...
107
BODY, LOWER CARBURETOR HUS-491543
...
108
VALVE, CHOKE HUS-223534
...
109
SHAFT AND LEVER, CHOKE HUS-392673
...
116
O-RING HUS-280474
...
117
JET, NEEDLE VALVE HUS-231338
...
117A
JET NEEDLE VALV FXD HI ALT HUS-231333
...
119
SCREW, SEMS, HEX HEAD HUS-94152
...
121
CARBURETOR OVERHAUL KIT HUS-491539
...
127
PLUG, WELCH HUS-223472
...
161
BODY, AIR CLEANER HUS-496599
...
165
NUT, WING HUS-94289
...
187
LINE, FUEL, 28"(CUT TO SUIT) HUS-299146
...
188
SCREW, SEMS 3/4" HUS-94627
...
201
LINK, GOVENOR HUS-262683
...
202
LINK. THROTTLE HUS-262684
...
203
CRANK, BELL HUS-280997
...
205
SCREW, SHOULDER HUS-93971
...
206
NUT, SQUARE HUS-94298
...
207
SPRING, COMPRESSION HUS-262337
...
209
SPRING, GOVERNOR HUS-262352
...
209A
SPRING, GOVERNOR IDLE HUS-261563
...
219
GEAR, GOVERNOR HUS-394348
...
219A
OIL SLINGER ASSEMBLY HUS-393415
...
220
WASHER, THRUST HUS-222773
...
222
PLATE ASSEMBLY, GOVERNOR CONTROL HUS-491282
...
224
SCREW, PAN HEAD HUS-94297
...
227
LEVER ASSEMBLY, GOVERNOR HUS-491297
...
229
WASHER HUS-62199
...
230
WASHER, GOVERNOR CRANK, INSIDE HUS-223882
...
235
SHIELD, SPITBACK HUS-224995
...
240
FILTER, FUEL HUS-394358
...
244
CONNECTOR, IMPULSE PUMP HUS-230318
...
257
SCREW, SEMS HUS-93897
...
258
SCREW, SEMS, CYLINDER SHIELD MTG. HUS-94623
...
259
BRACKET, CABLE HUS-223890
...
265
CLAMP HUS-221535
...
267
SCREW HUS-94906
...
284
SCREW, HEX HEAD HUS-94674
...
284A
SCREW, HEX HEAD HUS-94882
...
304
HOUSING, BLOWER, RED HUS-495469
...
305
SCREW HUS-94786
...
306
SHIELD, CYLINDER HUS-222846
...
306A
SHIELD, CYLINDER HUS-223734
...
307
SCREW HUS-94930
...
308
COVER, AIR GUIDE HUS-224774
...
308A
COVER, AIR GUIDE HUS-224775
...
309
MOTOR, STARTER HUS-497596
...
310
BOLT HUS-94003
...
311
BRUSH SET HUS-497608
...
332
NUT, HEX HUS-230674
...
333
ARMATURE GROUP MAGNETRON IGNITION HUS-394891
...
334
SCREW, SEMS HUS-94731
...
337
PLUG, SPARK HUS-802592
...
356
WIRE, STOP HUS-494705
...
358
GASKET SET HUS-491856
...
363
PULLER, FLYWHEEL HUS-19203
...
383
WRENCH SPARK PLUG HUS-89838
...
387
BODY, PUMP HUS-280197
...
392
SPRING, PUMP HUS-261395
...
394
DIAPHRAGM HUS-270988
...
414
WASHER HUS-220680
...
422
CLAMP, OIL FILLER HUS-222875
...
432
CAP, SPRING HUS-221377
...
434
COVER, DIAPHRAGM HUS-223688
...
435
SCREW, DIAPHRAGM COVER HUS-93829
...
445
CARTRIDGE AIR CLEANER HUS-394019
...
468
SCREEN, ROTATING HUS-497908
...
474
STATOR, ALTERNATOR, DUAL CIRCUIT HUS-393474
...
482
SCREW, SEMS HUS-93621
...
510
DRIVE, STARTER HUS-497606
...
523
CAP AND DIPSTICK HUS-494947
...
524
SEAL, FILLER TUBE HUS-271157
...
525
TUBE, OIL FILLER HUS-495348
...
528
HOSE, VACUUM HUS-383815
...
534
SCREW ROUND HEAD HUS-94823
...
535
ELEMENT, FILTER HUS-272490
...
537
GASKET AIR CLEANER HUS-271411
...
544
ARMATURE, STARTER HUS-497603
...
552
LOWER BUSHING, GOVERNOR HUS-262332
...
552A
UPPER BUSHING GOVERNOR HUS-262331
...
556
SCREW, HEX HEAD HUS-93585
...
562
BOLT, GOVERNOR LEVER HUS-93853
...
567
SCREW, HEX HEAD HUS-94811
...
569
GASKET, CRANKCASE HUS-272645
...
572
BAFFLE, AIR, CYLINDER #2 HUS-224816
...
573
BACK PLATE ASSEMBLY HUS-491304
...
592
NUT, HEX HUS-92278
...
601
CLAMP, HOSE, GREEN HUS-93053
...
615
RETAINER, E-RING HUS-94296
...
615A
RETAINER HUS-263080
...
616
CRANK, GOVERNOR HUS-491530
...
634
WASHER, THROTTLE SHAFT HUS-271013
...
634A
SEAL, GOVERNOR SHAFT HUS-491287
...
635
ELBOW, SPARK PLUG HUS-66538
...
642
COVER, AIR CLEANER HUS-225008
...
643
CARTRIDGE PLATES AIR CLEANER HUS-496700
...
653
SCREW, HEX HEAD HUS-93585
...
726
GEAR, RING HUS-391362
...
741
GEAR, TIMING HUS-262989
...
783
GEAR, STARTER HUS-280104
...
801
CAP, DRIVE HUS-394860
...
802
P/N CONFLICT - CHECK WITH SUPPLIER HUS-497607
...
803
HOUSING, STARTER HUS-497604
...
819
SCREW, HEX HEAD HUS-94675
...
842
SEAL, OIL FILLER CAP HUS-270920
...
847
DIPSTICK & TUBE ASSY HUS-495715
...
851
TERMINAL, IGNITION CABLE HUS-493880
...
858
DIAPHRAGM, DAMPING HUS-270989
...
859
GASKET, CARBURETOR HUS-271025
...
860
SPRING, DIAPHRAGM HUS-261358
...
861
PUMP REPAIR KIT HUS-393397
...
868
SEAL, VALVE HUS-497212
...
869
SEAT, INTAKE VALVE, STANDARD HUS-261463
...
870
SEAT, EXHAUST VALVE, STANDARD HUS-213316
...
871
GUIDE, EXHAUST VALVE HUS-261961
...
871A
GUIDE, INTAKE VALVE HUS-231218
...
877
DIODE & CONNECTOR ASSY HUS-393456
...
881
COVER PLATE HUS-495901
...
955
PLUG & SEAL, SOLENOID HUS-397882
...
1005
FAN, FLYWHEEL HUS-281053
...
1006
RETAINER, FAN HUS-224901
...
1019
LABEL KIT HUS-496726
...
1058
OWNER'S MANUAL HUS-272112
...
1090
P/N CONFLICT - CHECK WITH SUPPLIER HUS-497605
