Husqvarna AYP9167D79 (1997) Tractor

Model: AYP9167D79 (1997)

Back To Assemblies

Save Part Not Listed?
product name

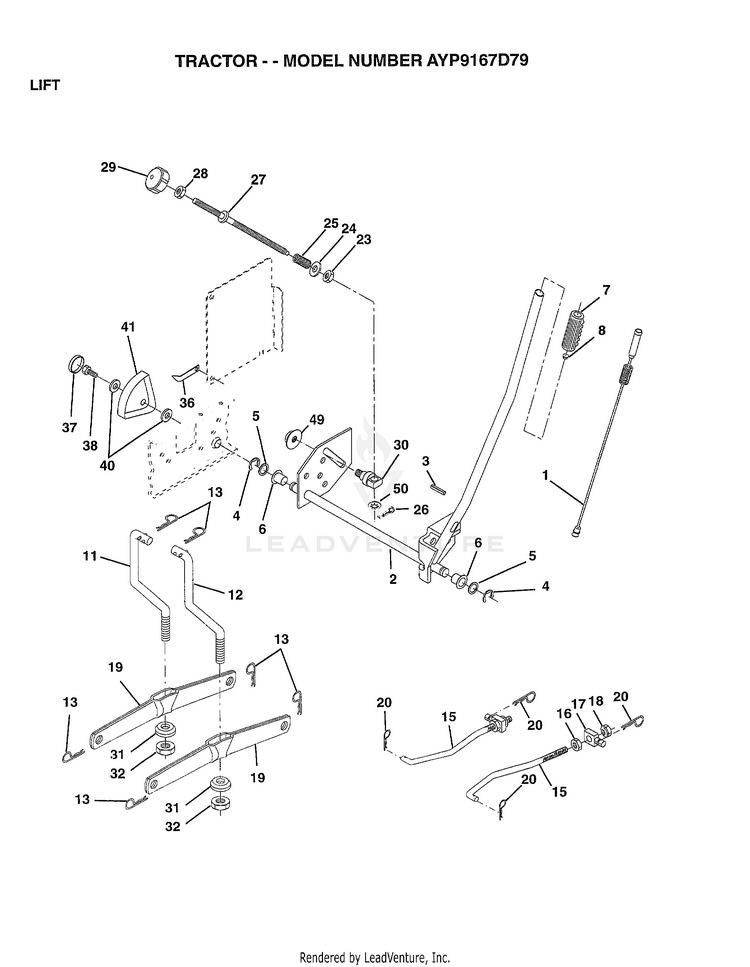

LIFT

...
...
1
WIRE ASM W.SPRING HUS-159460
...
2
"SHAFT ASM LIFT,RH" HUS-159471
...
3
PIN-GROOVE LT HUS-105767X
...
4
SUB= 2225J HUS-12000002
...
5
WASHER HUS-19211621
...
6
NYLON BEARING HUS-120183X
...
7
GRIP HANDLE HUS-125631X
...
8
SUB= 125925X HUS-122365X
...
11
SUB= 918139865 HUS-139865
...
12
SUB= 151140 HUS-139866
...
13
SUB= 85902 HUS-4939M
...
15
LINK.FRONT HUS-127218
...
16
NUT HUS-73350800
...
17
TRUNION HUS-130171
...
18
NUT.LK.W/WSH.1/2. HUS-73800800
...
19
ARM SUSP REAR HUS-139868
...
20
RETAINER.SPRING HUS-3146R
...
23
NUT T HUS-110807X
...
24
WASHER HUS-19131016
...
25
SPRING T HUS-2876H
...
26
SUB= 3145 HUS-76020308
...
27
SUB= 532126971 HUS-126971X
...
28
NUT HUS-73350600
...
29
KNOB INF 3/8-16 HUS-138057
...
30
TRUNNION HUS-150233
...
31
BEARING PVT LH HUS-140302
...
32
NUT.CROWNLOCK.3/8 HUS-73540600
...
36
POINTER-INDICAT HUS-155097
...
37
"PLUG,HOLE" HUS-123935X
...
38
SCREW HUS-17490512
...
40
WASHER HUS-19112410
...
41
HEIGHT INDICATOR HUS-123934X
...
49
NUT.HXFLG.LOCK. HUS-145212
