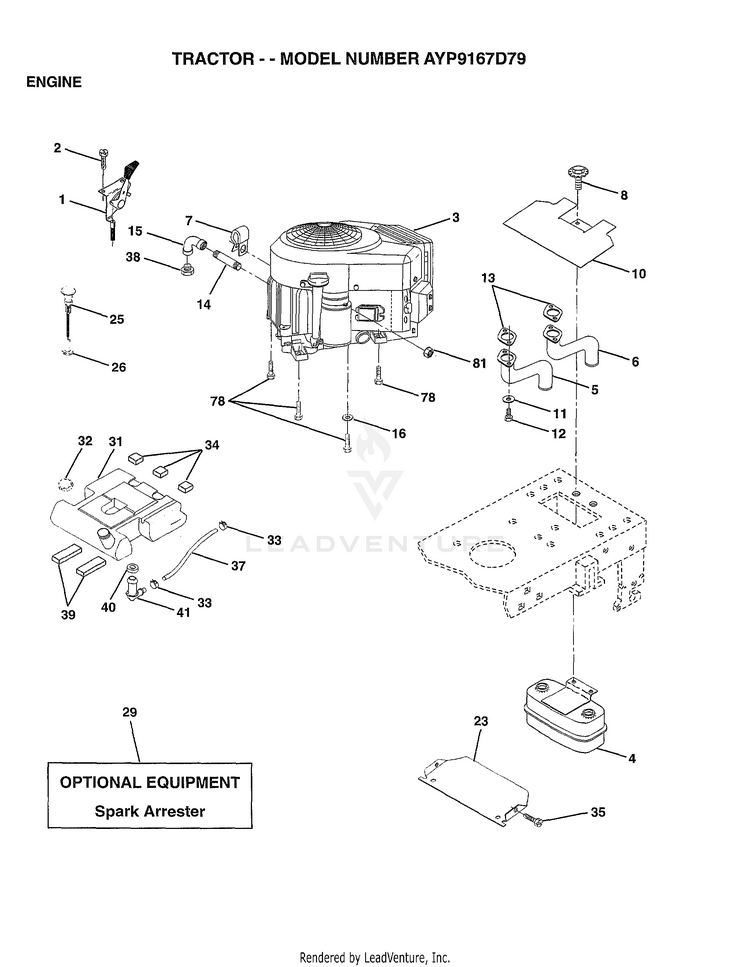

Husqvarna AYP9167D79 (1997) Tractor

Model: AYP9167D79 (1997)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
1
CONTROL THROT. LH HUS-148875
...
2
SCREW LT HUS-17720410
...
4
MUFFLER.TW.LOTONE HUS-149723
...
5
TUBE ASSY EXH LH HUS-122434X
...
6
TUBE ASSY EXH RH HUS-122435X
...
7
CLAMP.TUBE.DBL.EN HUS-138129
...
8
BOLT.5/16-18.UNC HUS-150176
...
10
SHIELD.HEAT. HUS-145552
...
14
PIPE NIPPLE LT HUS-13280336
...
15
ELBOW HUS-13200300
...
16
LOCKWASHER HUS-11050600
...
23
SHIELD-HEAT HUS-156123
...
25
CONTROL.CHOKE.37 HUS-145996
...
26
"NUT,KEPS 3/8-24IM" HUS-73920600
...
29
SUB= 532137180 HUS-137180
...
31
TANK FUEL REAR HUS-151346
...
32
CAP ASM FUEL HUS-140527
...
33
HOSE CLAMP HUS-123487X
...
34
PAD-SPACER LT HUS-106082X
...
35
SCREW HUS-17490512
...
37
FUEL LINE T HUS-8543R
...
39
PAD IDLER TI HUS-109227X
...
40
BUSHING OUTLET T HUS-3645J
...
41
STEM.TANK.FUEL HUS-139277
...
78
SCREW HUS-17490620
...
81
NUT HUS-128861
