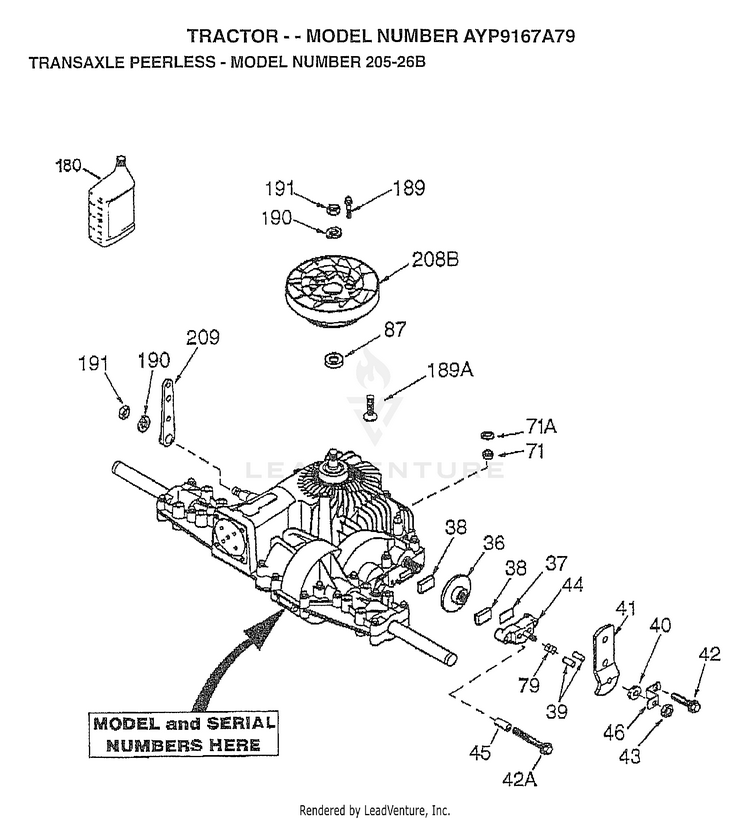

Husqvarna AYP9167A79 (1997) Tractor

Model: AYP9167A79 (1997)

Back To Assemblies

Save Part Not Listed?
product name

TRANSAXLE

...
...
36
BRAKE DISC HUS-790075
...
37
PLATE BRAKE PAD HUS-790007
...
38
BRAKE PAD HUS-799021
...
39
PIN DOWEL HUS-786026
...
40
WASHER HUS-792076A
...
41
BRAKE LEVER HUS-790085
...
42
SCREW, 1/4-20 X 1-1/4 HUS-792073
...
42A
SCREW, 1/4-20 X 2-1/4 HUS-792085A
...
43
LOCKNUT 5/16-24 HUS-792075
...
44
HOLDER BRAKE PAD HUS-790025
...
45
SPACER HUS-786066
...
46
BRAKE LEVER BRACKET HUS-790086
...
71
SEAL SQUARE CUT HUS-788069
...
71A
PUSHNUT HUS-792162
...
79
SPRING HUS-792144
...
87
OIL SEAL HUS-788035
...
180
GEAR OIL 80W90 HUS-730229A
...
189
DRIVE SCREW HUS-792168
...
189A
SCREW HUS-792169
...
190
LOCKWASHER HUS-792150
...
191
NUT HUS-792151
...
208B
FAN/COUPLING HUS-798025
...
209
CONTROL LEVER HUS-798024
