Husqvarna AYP9167A79 (1997) Tractor

Model: AYP9167A79 (1997)

Back To Assemblies

Save Part Not Listed?
product name

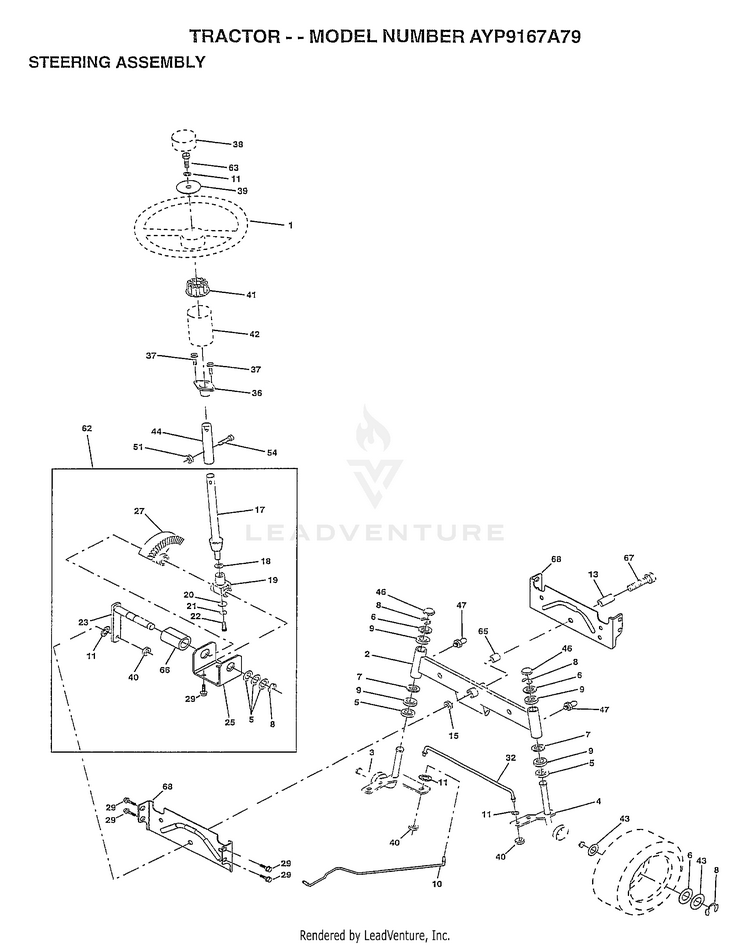

STEERING

...
...
1
WHEEL STR AYP BLK HUS-140044
...
2
SUB= 532137094 HUS-137094
...
3
SPINDLE ASM LH HUS-154920
...
4
SPINDLE AMS RH HUS-154921
...
5
WASHER .T HUS-6266H
...
6
WASHER HUS-121748X
...
7
WASHER HUS-19272016
...
8
RING HUS-12000029
...
9
COL. SRTG. BEAR. HUS-3366R
...
10
LINK.DRAG HUS-154432
...
11
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
13
BEARING AXLE HUS-154779
...
15
"NUT-LOC,FLANGE LT" HUS-73901000
...
17
SHAFT ASM STEERIN HUS-156546
...
18
THRUST WASHER HUS-57079
...
19
SUPPORT.SHAFT HUS-124035X
...
20
SUB= 532126684 HUS-126684X
...
21
LOCKWASHER HUS-10040400
...
22
SCREW.SCKTHD.CAP HUS-71100410
...
23
SUB= 918127501 HUS-127501
...
25
BRKT-STEERING HUS-154406
...
27
GEAR SECTOR HUS-136874
...
29
SCREW HUS-17490612
...
32
ROD.ASM.TIE.BALL HUS-137347
...
36
BUSHING.STEERING HUS-155099
...
37
"SCREW-TT,10-32 FL" HUS-152927
...
38
CAP STEER AYP HUS-140045
...
39
WASHER T HUS-19133808
...
40
GRIPCO NUT HUS-7810H
...
41
ADAPTER LT HUS-100711L
...
42
BOOT.STEER.PL HUS-145054
...
43
WASHER HUS-121749X
...
44
EXT SHAFT STEERIN HUS-153720
...
46
CAP HUS-121232X
...
47
ZERK M HUS-6855M
...
51
NUT HUS-73800500
...
54
BOLT HUS-74780520
...
62
KIT STEERING ASM HUS-156594
...
63
BOLT HUS-74780616
...
65
SPACER AXLE HUS-154780
...
66
"BEARING-ARM,PITMA" HUS-154404
...
67
BOLT HUS-74781044
...
68
BRACE AXLE HUS-154429
