Husqvarna AYP9167A79 (1997) Tractor

Model: AYP9167A79 (1997)

Back To Assemblies

Save Part Not Listed?
product name

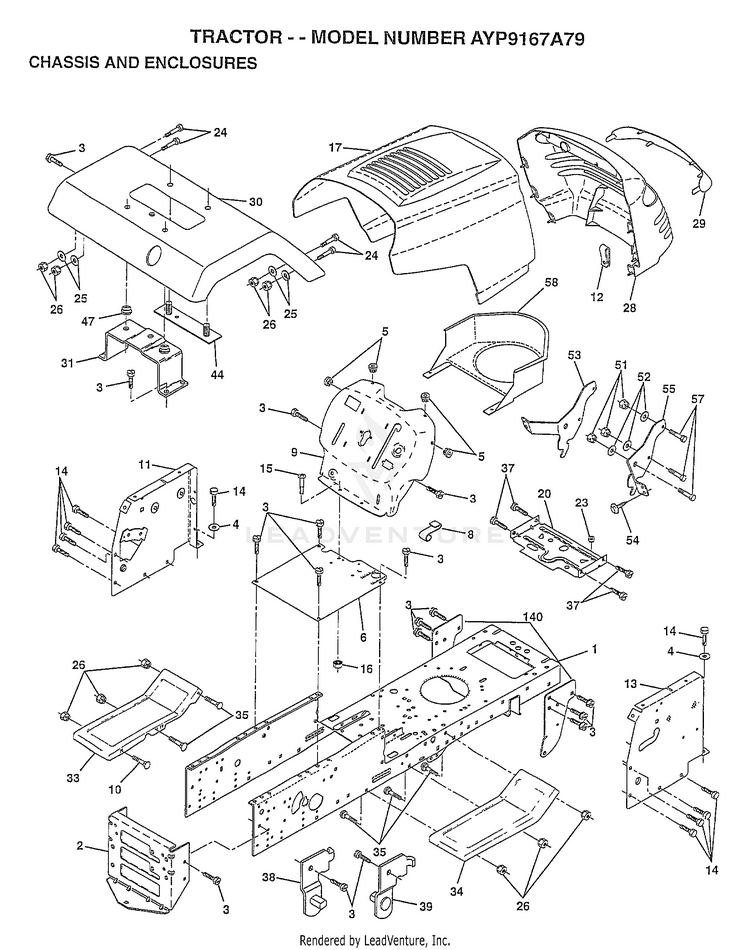

CHASSIS AND ENCLOSURES

...
...
1
CHASSIS ASM HUS-155051
...
2
SUB= 145009 HUS-140356
...
3
SCREW HUS-17490612
...
4
WASHER HUS-19131216
...
5
BUMPER-HOOD/DASH HUS-155272
...
6
SADDLE HUS-155923
...
8
"CLIP,INSULATOR" HUS-126471X
...
9
DASH SILKSCREEN HUS-147633X011
...
10
SUB= 72110608 HUS-72140608
...
11
"PANEL-DASH,LH" HUS-155927
...
12
CLIP.TINNERMAN HUS-145660
...
13
"PANEL-DASH,RH" HUS-155936
...
14
SCREW LT HUS-17490608
...
15
SCREW HUS-74180512
...
16
NUT HUS-73510500
...
17
HOOD.STL.PRV.LB HUS-139394X418
...
20
PLATE MEG BATTERY/FUEL TANK HUS-156737
...
23
SUB= 532124028 HUS-124028X
...
24
BOLT HUS-74780616
...
25
WASHER HUS-19131312
...
26
NUT HUS-73800600
...
28
GRILL HUS-157428
...
29
LENS.EURO.W/DECAL HUS-146654
...
30
FENDER.YT/GT HUS-140002X418
...
31
BRKT.ASM.FENDER HUS-137113
...
33
FOOTREST.LT.LT/GT HUS-145244X418
...
34
FOOTREST.RH.LT/GT HUS-145243X418
...
35
BOLT HUS-72110606
...
37
SCREW LT HUS-17490508
...
38
BRACKET ASM LH HUS-139886
...
39
BRACKET ASM RH HUS-139887
...
44
STRAP ASM FENDER HUS-140675
...
47
NUT-PUSH YT HUS-105531X
...
51
NUT HUS-73800400
...
52
WASHER HUS-19091416
...
53
BRACKET.GRILLE.LH HUS-144697
...
54
SUB= 91817030814 HUS-17030814
...
55
BRACKET.GRILLE.RH HUS-144696
...
57
SUB= 74780414 HUS-74780412
...
58
AIR DUCT HUS-150127
...
140
BRKT SUSPENSION HUS-158418
