Husqvarna AYP9167A59 (1995) Tractor

Model: AYP9167A59 (1995)

Back To Assemblies

Save Part Not Listed?
product name

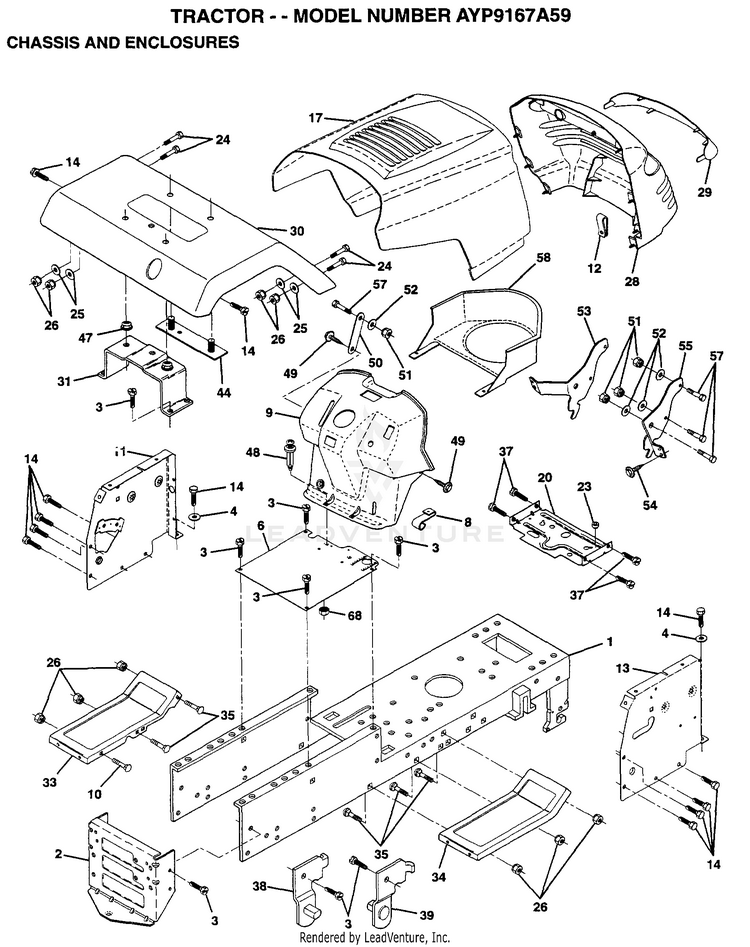

CHASSIS AND ENCLOSURES

...
...
1
CHASSIS.WLD.11GA HUS-145501
...
2
SUB= 145009 HUS-140356
...
3
SCREW HUS-17490612
...
4
WASHER HUS-19131216
...
6
SUB= 145206X431 HUS-145206
...
8
"CLIP,INSULATOR" HUS-126471X
...
9
SUB= 532142467 HUS-140622
...
10
SUB= 72110608 HUS-72140608
...
11
PANEL ASM DASH HUS-140311
...
12
CLIP.TINNERMAN HUS-145660
...
13
SUB= 146959 HUS-140178
...
14
SCREW LT HUS-17490608
...
17
HOOD.STL.PRV.LB HUS-139394X418
...
20
PLATE.MTG.BTRY.TK HUS-145210
...
23
SUB= 532124028 HUS-124028X
...
24
BOLT HUS-74780616
...
25
WASHER HUS-19131312
...
26
NUT HUS-73800600
...
28
SUB= 157373 HUS-140141
...
29
LENS GRILLE HUS-140273
...
30
FENDER.YT/GT HUS-140002X418
...
31
BRKT.ASM.FENDER HUS-137113
...
33
FOOTREST.LT.LT/GT HUS-145244X418
...
34
FOOTREST.RH.LT/GT HUS-145243X418
...
35
BOLT HUS-72110606
...
37
SCREW HUS-17490512
...
38
BRACKET ASM LH HUS-139886
...
39
BRACKET ASM RH HUS-139887
...
44
STRAP ASM FENDER HUS-140675
...
47
NUT-PUSH YT HUS-105531X
...
48
RIVET.PUSH.PLATE HUS-138096
...
49
SCREW HEX CRT HUS-17490412
...
50
BRACE SUPT DASH HUS-142779
...
51
NUT HUS-73800400
...
52
WASHER HUS-19091416
...
53
BRACKET.GRILLE.LH HUS-144697
...
54
SUB= 91817030814 HUS-17030814
...
55
BRACKET.GRILLE.RH HUS-144696
...
57
SUB= 74780414 HUS-74780412
...
58
DUCT AIR 12-15H HUS-140806
...
68
NUT HUS-73510400
