product name

Husqvarna AYP9128B29 (1992) Tractor

Model: AYP9128B29 (1992)

Back To Assemblies

Save Part Not Listed?
product name

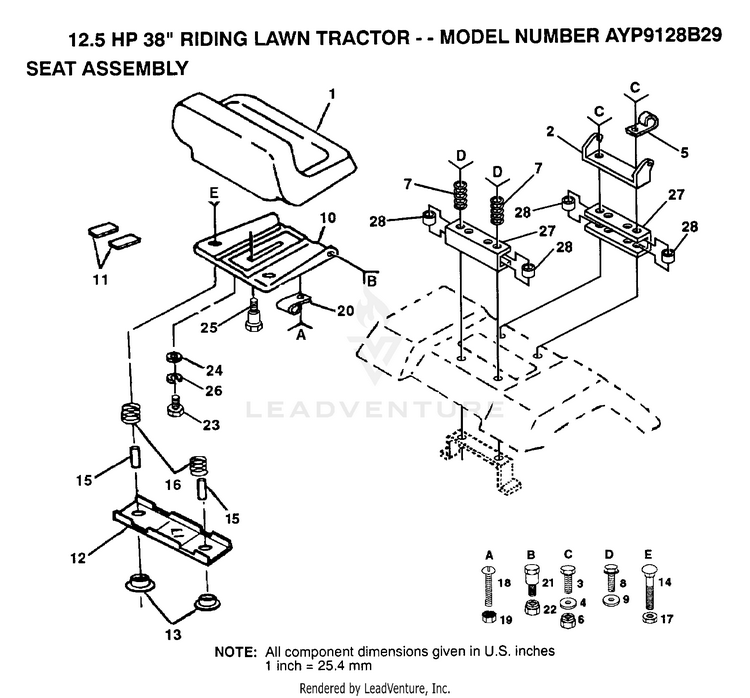

SEAT

...
...
1
SHAFT.PU.2003022 HUS-122756X
...
2
RETAINIANG RING-(2003016) HUS-122716X
...
3
BALL BEARING HUS-122745X
...
4
SPACER HUS-122715X
...
5
SEAL LIP HUS-122700X
...
6
RING.RET.2003052 HUS-122699X
...
8
CRADLE BEARING (2003023) HUS-122767X
...
11
BEARING HUS-122747X
...
12
SEAL.9008000-0126 HUS-122717X
...
13
TRUNION ARM (2003005) HUS-122748X
...
14
GUIDE.2000015.HYD HUS-122749X
...
15
SUB= 121430X HUS-127146X
...
17
SUB= 142936 HUS-122770X
...
18
PLUG PIPE HUS-122771X
...
19
"KIT,CTR SECTION (2513007)" HUS-127147X
...
20
NEEDLE BEARING HUS-122773X
...
21
LIP SEAL-9008000-0127 HUS-122722X
...
22
SHAFT HUS-122750X
...
25
"SWASHPLATE,VARIAB" HUS-127148X
...
30
SEAL LIP HUS-122723X
...
31
"KIT,BLOCK CYLINDE" HUS-127149X
...
36
"PLUG,PLASTIC 9005200-8700" HUS-127151X
...
37
PIN HUS-122786X
...
38
GASKET.20030600 HUS-122718X
...
39
FILTER HUS-122731X
...
40
WASHER (2000011) HUS-122730X
...
41
SPRING HUS-122728X
...
42
KIT.VALVE.2513014 HUS-127152X
...
46
PLUG HUS-122787X
...
47
SCREW9007314-0808 HUS-122752X
...
50
WASHER HUS-122788X
...
51
PIN HUS-122789X
...
52
PLUG HUS-122754X
...
55
"KIT,BYPASS VALVE" HUS-127153X
...
58
PLUG HUS-122790X
...
59
"KIT,OVERHEAD SEAL -2513013" HUS-127154X
