Husqvarna AYP9128B29 (1992) Tractor

Model: AYP9128B29 (1992)

Back To Assemblies

Save Part Not Listed?
product name

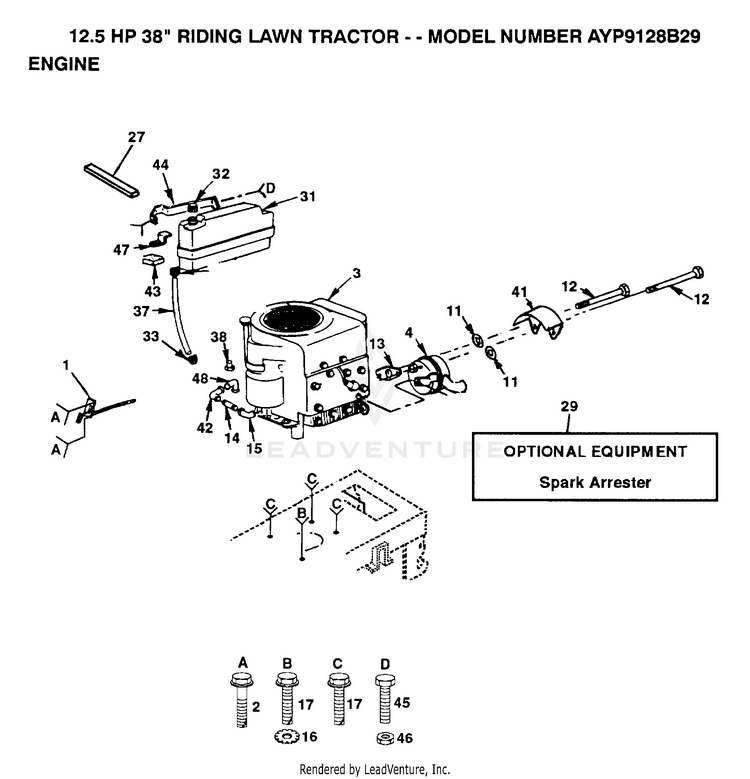

ENGINE

...
...
1
THROTTLE CONTROL HUS-132753
...
2
SCREW LT HUS-17720410
...
4
MUFFLER HUS-121304X
...
11
SUB= 19171616 HUS-19151616
...
12
BOLT HUS-121744X
...
13
SUB= 272293 HUS-125593X
...
14
PIPE NIPPLE HUS-13280328
...
15
STREET ELBOW LT HUS-13310300
...
16
LOCKWASHER HUS-11050600
...
17
SCREW HUS-17490620
...
27
FOAM-STRIP LT HUS-105037X
...
29
SUB= 532137180 HUS-121851X
...
31
FUEL TANK HUS-121280X
...
32
SUB= 9188504J HUS-8504J
...
33
HOSE CLAMP HUS-123487X
...
37
SUB= 8548R HUS-101335K
...
41
HEAT SHIELD HUS-121742X
...
42
STREET ELBOW LT HUS-13240300
...
43
PAD-SPACER T HUS-6431J
...
44
SUPT TANK FUEL HUS-121281X
...
45
BOLT HUS-74780512
...
46
SUB= 73690500 HUS-73680500
...
47
BRACE-TANK LT HUS-104799X
...
48
ELBOW HUS-13200300
