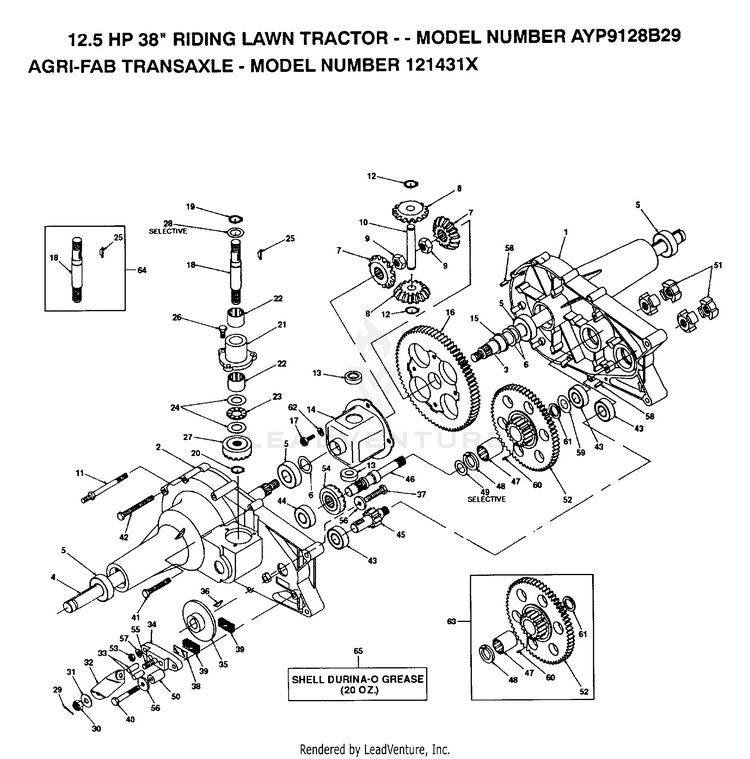

Husqvarna AYP9128B29 (1992) Tractor

Model: AYP9128B29 (1992)

Back To Assemblies

Save Part Not Listed?
product name

TRANSAXLE

...
...
1
HSG HALF LH-44077 HUS-122614X
...
2
HSG HALF RH-44076 HUS-122615X
...
3
AXLE LH -44273 HUS-122616X
...
4
AXLE RH-44272 HUS-122620X
...
5
BEARING.44121.AGR HUS-122621X
...
6
WASHER -44008 HUS-122622X
...
7
GEAR MITER -44096 HUS-122623X
...
8
GEAR MITER -44097 HUS-122624X
...
9
NUT -44133 HUS-122625X
...
10
SHAFT CROSS HUS-122626X
...
11
SCREW-STUD -44271 HUS-122688X
...
12
SNAP RING -44146 HUS-122629X
...
13
"THRUST, BEARING -44128" HUS-122631X
...
14
HOUSING.ASM.DIFF.-62590 HUS-122633X
...
15
"FLANGE, BEARING-44129" HUS-122634X
...
16
GEAR HUS-122640X
...
17
BOLT -44126 HUS-122641X
...
18
SHAFT INPUT-44270 HUS-122642X
...
19
SNAP RING -44145 HUS-122643X
...
20
RET RING (44144) HUS-122644X
...
21
SUB= 155892 HUS-122645X
...
22
"NEEDLE, BEARING 44099" HUS-122646X
...
23
BEARING.NEE.44139 HUS-122647X
...
24
WASHER-44109 HUS-122648X
...
25
KEY.44136.HYDRO HUS-122649X
...
26
SCREW HUS-122650X
...
27
SUB= 155892 HUS-122651X
...
28
WASHER -44371 HUS-123061X
...
xx
NLA HUS-122678X
...
xx
WASHER-44151 HUS-122654X
...
29
PIN COTTER -44101 HUS-122656X
...
30
WASHER -44150 HUS-122653X
...
31
WASHER FLAT -44130 HUS-122659X
...
32
ARM BRAKE 23710 HUS-122660X
...
33
PIN BRAKE ACTUATO -44127 HUS-122662X
...
34
BRAKE YOKE HUS-122663X
...
35
DISC BRAKE -(44090) HUS-122664X
...
36
KEY -44143 HUS-123065X
...
37
SCREW -44277 HUS-122666X
...
38
PLATE PUCK -44134 HUS-122667X
...
39
SUB= 142883 HUS-122668X
...
40
SCREW -44300 HUS-123066X
...
41
SCREW -44123 HUS-122670X
...
42
SCREW -44124 HUS-122671X
...
43
SUB= 122672X HUS-126982X
...
44
"BALL, BEARING -44232" HUS-122673X
...
45
SHAFT PINION 44083 HUS-122674X
...
46
SHAFT DRIVE-44080 HUS-122675X
...
47
NEEDLE BEARING -44342 HUS-123059X
...
48
THRUST.BRONZE -44343 HUS-123060X
...
49
THRUST.BRONZE -44343 HUS-123060X
...
xx
WASHER-44151 HUS-122654X
...
50
SPACER -23711 HUS-122689X
...
51
COUPLING- 44084 HUS-121839X
...
52
GEAR.60/17.44523 HUS-126975X
...
53
NUT -43178 HUS-122682X
...
54
PINION-DR.44079 HUS-122683X
...
55
BOLT SQ HD HUS-122684X
...
56
WASHER -44278 HUS-122685X
...
57
WASHER -44137 HUS-122686X
...
58
PIN ROLL-44269 HUS-122687X
...
59
WASHER -44125 HUS-122652X
...
60
DOWEL PIN -44346 HUS-123062X
...
61
SEAL GREASE -44394 HUS-123063X
...
62
WASHER.43177.AGRI HUS-126977X
...
63
ASS'Y GEAR REDUCT HUS-126980X
...
64
SUB= 122642X HUS-126981X
...
65
GREASE.50416.10OZ HUS-126976X
...
xx
TRANSAXLE.AGRIFAB HUS-121431X
