Husqvarna AYP9128A29 (1992) Tractor

Model: AYP9128A29 (1992)

Back To Assemblies

Save Part Not Listed?
product name

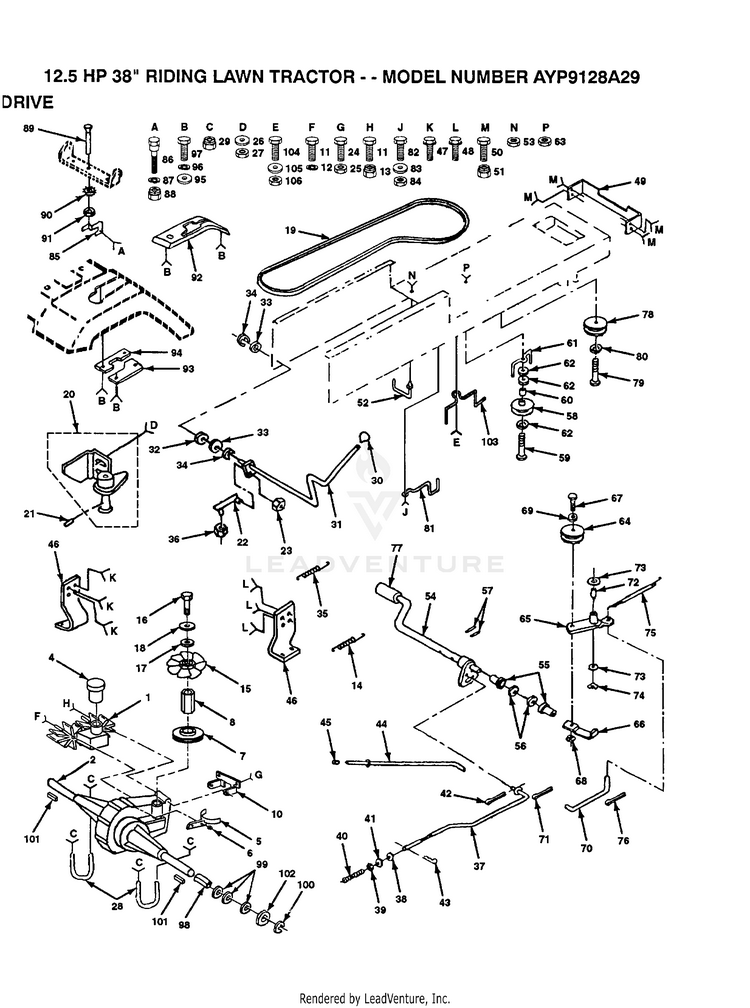

DRIVE

...
...
1
PUMP.BDU-10S-114 HUS-121430X
...
2
TRANSAXLE.AGRIFAB HUS-121431X
...
4
PUMP.2003081. HUS-121323X
...
5
"GRD ASS'Y,BELT" HUS-126581X
...
6
SUB= 73690400 HUS-73680400
...
7
"PULLEY,TRANSAXLE" HUS-126579X
...
8
STANDOFF HUS-121211X
...
10
BRACKET HUS-121188X
...
11
BOLT HUS-74760572
...
12
LOCKWASHER HUS-10040500
...
13
SUB= 73690500 HUS-73680500
...
14
SUB= 146682 HUS-110422X
...
15
"FAN,HYDRO" HUS-126578X
...
16
SUB= 74780414 HUS-74780412
...
17
WASHER HUS-19092016
...
18
LOCKWASHER HUS-10040400
...
19
SUB= TH4H810 HUS-126576X
...
20
"FRICTION,PACK ASS" HUS-126912X
...
21
"PIN,ROLL METRIC" HUS-126655X
...
22
"LINK,PUMP CONTROL" HUS-126589X
...
23
NUT WIZLOC T HUS-73040400
...
24
SUB= 74780612 HUS-74760612
...
25
SUB= 73690600 HUS-73680600
...
26
WASHER HUS-19131216
...
27
SUB= 73690600 HUS-73680600
...
28
U BOLT HUS-121189X
...
29
SUB= 73690600 HUS-73680600
...
30
KNOB T (1/2-HOLE) HUS-106933X
...
31
"LEVER,CONTROL" HUS-126592X
...
32
"BUSHING,PIVOT" HUS-126590X
...
33
"WSHER,SHIM" HUS-126591X
...
34
RING T HUS-12000003
...
35
"SPRING,EXTENTION" HUS-126910X
...
36
NUT WIZLOC T HUS-73040400
...
37
SUB= 532132654 HUS-132654
...
38
NUT HUS-73800600
...
39
NUT HUS-73350600
...
40
SPRING ROD LT HUS-106888X
...
41
WASHER HUS-19131316
...
42
SPRING.RETAINER HUS-4921H
...
43
RETAINER M HUS-4497H
...
44
BRAKE PARK ROD HUS-133261
...
45
PLUNGER CAP T HUS-71673
...
46
BRKT TRANSAXLE HUS-126649X
...
47
SCREW GTV HUS-17490616
...
48
SCREW HUS-17490612
...
49
PLATE TRANS SUPT HUS-121187X
...
50
SUB= 74780612 HUS-74760612
...
51
SUB= 73690600 HUS-73680600
...
52
"KEEPER,CENTERSPAN" HUS-126577X
...
53
SUB= 73690600 HUS-73680600
...
54
SUB= 149001 HUS-122424X
...
55
NYLON BEARING HUS-120183X
...
56
WASHER LT HUS-19211616
...
57
SUB= 2882J HUS-1572H
...
58
PULLEY.IDLER.FLAT HUS-123674X
...
59
BOLT HUS-74760644
...
60
SPACER T HUS-4470J
...
61
BELT KEEPER LT HUS-109070X
...
62
WASHER HUS-19131312
...
63
SUB= 73690600 HUS-73680600
...
64
SUB= 139245 HUS-127783
...
65
ARM IDLER HUS-123789X
...
66
RETAIN BELT HUS-123205X
...
67
SUB= 74930624 HUS-74760624
...
68
SUB= 73690600 HUS-73680600
...
69
WASHER HUS-19131316
...
70
"LINK, CLUTCH T" HUS-105710X
...
71
COTTER PIN HUS-76020412
...
72
"LY, BEARING" HUS-105706X
...
73
WASHER LT HUS-110812X
...
74
KLIP RING HUS-12000039
...
75
"SPRING, RETURN LT" HUS-105709X
...
76
COTTER PIN HUS-76020412
...
77
PEDAL COVER T HUS-8883R
...
78
SUB= 136004 HUS-134825
...
79
BOLT HUS-71170764
...
80
LOCKWASHER HUS-10040700
...
81
KEEPER.BELT.ENG.L HUS-129921
...
82
BOLT HUS-74760616
...
83
WASHER HUS-19131312
...
84
SUB= 73690600 HUS-73680600
...
85
"ARM,BYPASS CONTRO" HUS-126575X
...
86
BOLT T HUS-7605J
...
87
WASHER T HUS-110739X
...
88
SUB= 73690400 HUS-73680400
...
89
CONTROL BYPASS HUS-133836
...
90
LOCKWASHER HUS-11050600
...
91
SUB= 7810H HUS-73610600
...
92
"CONSOLE,SHIFT FEN" HUS-126600X
...
93
"PLATE,NEUTRAL RH" HUS-126597X
...
94
"PLATE,NEUTRAL LH" HUS-126598X
...
95
WASHER PM HUS-19091216
...
96
LOCKWASHER HUS-10040400
...
97
SUB= 74230408 HUS-74760408
...
98
SPACER SPLIT HUS-121199X
...
99
WASHER HUS-121749X
...
100
E-RING LT HUS-12000001
...
101
SQUARE KEY HUS-123583X
...
102
WASHER HUS-121748X
...
103
GUIDE BLT DR MWR HUS-131402
...
104
BOLT HUS-74760616
...
105
WASHER HUS-19132012
...
106
SUB= 73690600 HUS-73680600
