Husqvarna AYP8228A59 (1995) Tractor

Model: AYP8228A59 (1995)

Back To Assemblies

Save Part Not Listed?
product name

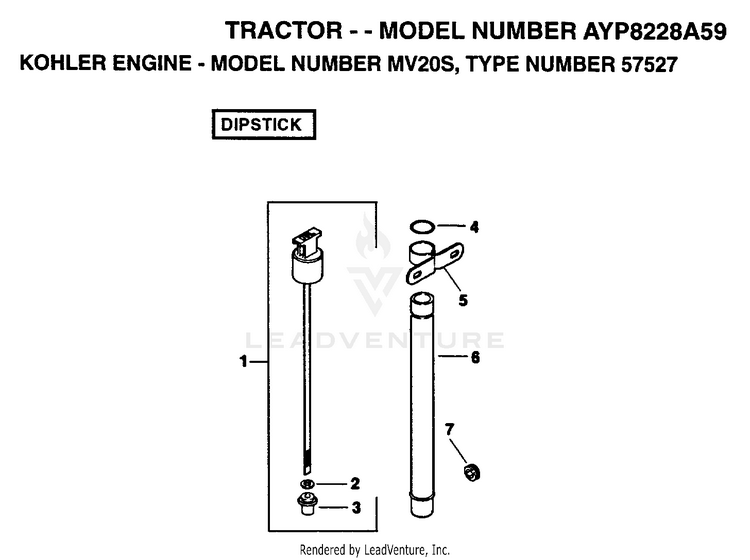

DIPSTICK

...
...
1
DIPSTICK HUS-52-038-14
...
2
WASHER, PLAIN 5/16 HUS-X-25-44
...
3
SEAL RUBBER HUS-52-032-14
...
4
O-RING HUS-41-153-01
...
5
BRKT HUS-52-126-11
...
6
TUBE HUS-52-123-20
...
7
PLUG, HEX 3/4 HUS-47-139-01
