Husqvarna AYP8209A59 (1995) Tractor

Model: AYP8209A59 (1995)

Back To Assemblies

Save Part Not Listed?
product name

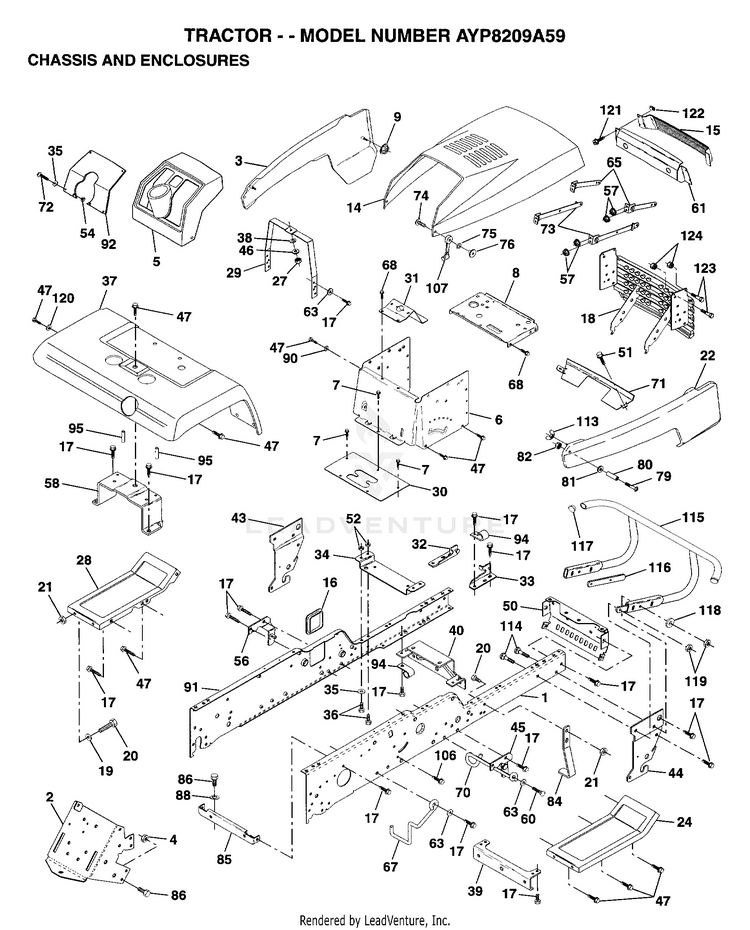

CHASSIS AND ENCLOSURES

...
...
1
SUB= 150383 HUS-144737
...
2
DRAWBAR GT HUS-140506
...
3
PANEL SD LH YT/GT HUS-140678X418
...
4
NUT.7/16 HUS-73800700
...
5
DASHBOARD BLACK HUS-140398
...
6
DASH.1PC.LOWER HUS-145053
...
7
SCREW HUS-17720408
...
8
SUPPORT.DASH.BTRY HUS-145166
...
9
PAL NUT LT HUS-108067X
...
14
SUB= 150301X505 HUS-132635X505
...
15
LENS LT HUS-106395X
...
16
COVER ACCESS HUS-121794X
...
17
SCREW HUS-17490612
...
18
GRILLE HUS-140037X
...
19
WASHER HUS-19131312
...
20
BOLT HUS-74760616
...
21
SUB= 73690600 HUS-73680600
...
22
PANEL SD RH YT/GT HUS-140679X418
...
24
SUB= 145243X505 HUS-105464X505
...
26
SCREW HUS-17490512
...
27
SUB= 50675 HUS-73220400
...
28
SUB= 145244X505 HUS-105465X505
...
29
DASH.SUPT.YP/HUSQ HUS-145205
...
30
SADDLE.SCR.6SP HUS-145051X014
...
31
BRAKET.SUPT.STEER HUS-145183
...
32
BRACKET ASM FRAME HUS-141315
...
33
BRACKET ASM FRAME HUS-141314
...
34
BRACKET.ENG.SUPT. HUS-142131
...
35
WASHER HUS-19111116
...
36
BOLT HUS-74760512
...
37
FENDER HUS-121642X505
...
38
LOCKWASHER HUS-10040400
...
39
BRACKET.AXLE.FRT. HUS-136961
...
40
SUB= 156111 HUS-142132
...
43
BRACKET.SUS.FT.LH HUS-136939
...
44
BRACKET.SUS.FT.RH HUS-136940
...
45
SUB= 155887 HUS-138460
...
46
WASHER PM HUS-19091216
...
47
SCREW LT HUS-17490608
...
50
BRACKET.CHASSIS. HUS-136575
...
51
SCREW CRT HUS-17580408
...
52
SUB= 73690500 HUS-73680500
...
54
NUT HUS-73510500
...
56
SUB= 155886 HUS-138461
...
57
NUT HUS-73510400
...
58
BRKT.ASM.FENDER HUS-137113
...
60
SCREW HUS-17490620
...
61
SUB= 147717 HUS-124392X417
...
63
WASHER HUS-19131614
...
65
SUB= 155013 HUS-104618X
...
67
GUIDE BELT TRANS HUS-140737
...
68
SCREW LT HUS-17490508
...
70
GUIDE.BELT.MID.SP HUS-137159
...
71
STRAP.GRILL HUS-144916X418
...
72
SCREW HUS-74180512
...
73
SCREW HUS-74180512
...
73
SUB= 155013 HUS-106784X
...
74
SCREW HUS-74191008
...
75
LOCKWASHER HUS-10071000
...
76
WELDNUT HUS-2029J
...
81
WASHER HUS-19070818
...
82
NUT HUS-73731000
...
84
STOP.OVER.CENTER HUS-142992
...
85
BRACKET.SUPT.TRAN HUS-144911
...
86
BOLT HUS-74760716
...
88
LOCKWASHER HUS-10040700
...
90
LOCKWASHER HUS-11050600
...
91
SUB= 151630 HUS-144735
...
92
PLATE SLKSCR YP HUS-140299X012
...
93
SCREW LT HUS-17490608
...
94
CLIP GTV HUS-100207K
...
95
NUT-PUSH YT HUS-105531X
...
106
SUB= 157722 HUS-138776
...
107
HOOD LATCH T HUS-109808X
...
112
WASHER HUS-19131210
...
113
SUB= 146525 HUS-123198X
...
114
BOLT.3/8-14X1.25 HUS-72140610
...
115
BUMPER.ASM.W/PY HUS-141460
...
116
BRACKET.EXT.BUMP. HUS-141461
...
117
PLUG.PLASTIC HUS-143679
...
118
WASHER HUS-19131316
...
119
SUB= 73690600 HUS-73680600
...
120
WASHER HYT HUS-19131616
...
121
SCREW LT HUS-17211010
...
122
"""J"" FASTENER LT" HUS-104755X
...
123
SUB= 7605J HUS-123481X
...
124
NUT HUS-73800400
...
xx
PLUG-DASH T HUS-8022J
