product name

Husqvarna AYP8186A49 (1994) Tractor

Model: AYP8186A49 (1994)

Back To Assemblies

Save Part Not Listed?
product name

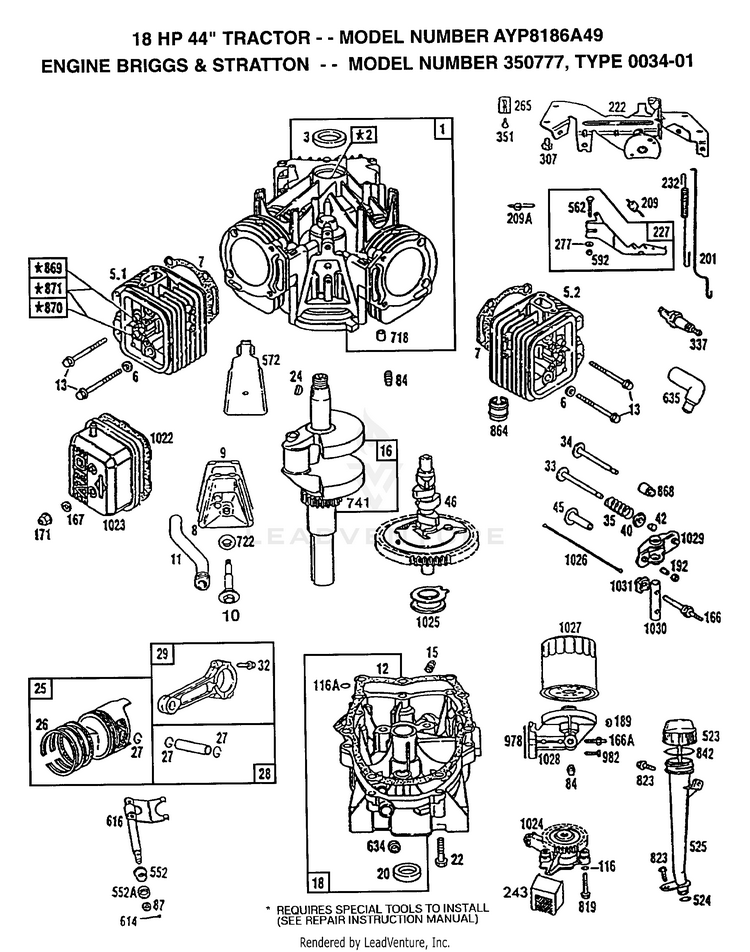

ENGINE/B&S

...
...
1
CYLINDER ASSEMBLY HUS-807787
...
2
BEARING, CYLINDER HUS-805107
...
3
SEAL, OIL HUS-805101
...
5.1
HEAD, CYLINDER, CYLINDER #1 HUS-807821
...
5.2
HEAD, CYLINDER 2 HUS-807822
...
6
WASHER, CYLINDER HEAD HUS-805193
...
7
GASKET, CYLINDER HEAD HUS-805653
...
8
BREATHER ASSEMBLY HUS-807795
...
9
GASKET, BREATHER HUS-805379
...
10
SCREW HUS-805751
...
11
TUBE, BREATHER HUS-805362
...
12
GASKET, CRANKCASE COVER HUS-805112
...
13
SCREW, CYLINDER HEAD HUS-805097
...
15
PLUG, OIL DRAIN HUS-805048
...
16
CRANKSHAFT HUS-807779
...
xx
KEY, TIMING GEAR HUS-94196
...
18
COVER ASSEMBLY, CRANKCASE HUS-807638
...
20
SEAL, OIL HUS-805049
...
22
SCREW, CRANKCASE COVER HUS-805017
...
23
FLYWHEEL, MAGNETO HUS-807790
...
24
KEY, FLYWHEEL HUS-805016
...
25
PISTON ASSEMBLY, STANDARD SIZE HUS-807888
...
xx
PISTON ASSEMBLY HUS-807991
...
xx
PISTON ASSEMBLY HUS-807992
...
xx
PISTON ASSEMBLY HUS-807993
...
26
RING SET, PISTON, STANDARD SIZE HUS-807889
...
xx
RING SET, PISTON HUS-807994
...
xx
RING SET, PISTON HUS-807995
...
xx
RING SET, PISTON HUS-807996
...
27
LOCK, PISTON PIN HUS-805099
...
28
PIN ASSEMBLY, PISTON, STANDARD HUS-807886
...
29
ROD, ASSEMBLY HUS-80790
...
32
SCREW, CONNECTING ROD HUS-805395
...
33
VALVE, EXHAUST HUS-805089
...
34
VALVE, INTAKE HUS-805090
...
35
SPRING, VALVE HUS-805078
...
37
COVER, STARTER HUS-805506
...
40
RETAINER, VALVE SPRING HUS-805092
...
42
RETAINER, VALVE HUS-805161
...
45
TAPPET, VALVE HUS-805354
...
46
GEAR, CAM HUS-807542
...
50
MANIFOLD, INTAKE HUS-807802
...
51
GASKET, CARBURETOR MOUNTING HUS-805700
...
52
GASKET, INTAKE MANIFOLD HUS-805023
...
53
SCREW, SEMS HUS-805669
...
54
SCREW, SEMS HUS-805006
...
75
WASHER, SPRING HUS-805007
...
78
SCREW, SEMS HUS-805447
...
84
PLUG, PIPE HUS-805059
...
87
SEAL, GOVERNOR SHAFT HUS-805054
...
95
SCREW, VALVE MOUNTING HUS-94457
...
95A
SCREW, VALVE MOUNTING HUS-94466
...
98
SCREW, THROTTLE ADJUSTMENT HUS-494690
...
104
PIN, FLOAT HINGE HUS-231652
...
105
FUEL INLET ASSEMBLY HUS-808023
...
108
VALVE CHOKE HUS-224534
...
116
O-RING, OIL PUMP HUS-805058
...
116A
O-RING, CRANKCASE COVER HUS-805198
...
116B
WASHER, BOWL HUS-224531
...
117
JET, MAIN HUS-231780
...
117A
JET, PILOT HUS-231779
...
117B
JET, SHUT-OFF HUS-231823
...
118
VALVE, IDLE ADJUSTING NEEDLE HUS-494923
...
121
CARBURETOR OVERHAUL KIT HUS-807917
...
122
SPACER, CARBURETOR HUS-805674
...
125
CARBURETOR ASSEMBLY HUS-907806
...
130
VALVE, THROTTLE HUS-224533
...
131
SHAFT, THROTTLE ASSEMBLY HUS-807909
...
133
FLOAT, BOWL HUS-492283
...
139
LOCK WASHER HUS-805449
...
141
SHAFT, CHOKE HUS-807911
...
147
NOZZLE, CARBURETOR HUS-231781
...
161
BASE ASSEMBLY, AIR CLEANER HUS-807857
...
166
STUD, ROCKER ARM HUS-805343
...
166A
STUD, OIL FILTER ADAPTER HUS-805073
...
167
WASHER, VALVE COVER HUS-805420
...
171
NUT, NYLOCK HUS-805019
...
187
HOSE (CUT TO SUIT) HUS-393815
...
xx
PIPE, FUEL HUS-296004
...
188
SCREW, HEX HEAD HUS-93535
...
188A
SCREW, STARTER MOUNTING HUS-805247
...
192
SCREW, VALVE ADJUSTMENT HUS-307623
...
201
LINK, GOVERNOR HUS-805480
...
209
SPRING, GOVERNOR HUS-805462
...
209A
SPRING, GOVERNED IDLE HUS-805453
...
216
LINK, CHOKE HUS-805439
...
222
BRACKET, GOVERNOR CONTROL HUS-807610
...
227
LEVER ASSEMBLY, GOVERNOR HUS-807528
...
232
SPRING, GOVERNOR LINK HUS-805465
...
240
FILTER, FUEL HUS-394358
...
243
SCREEN, OIL HUS-805312
...
254
DRAIN, CARBURETOR BOWL HUS-492274
...
265
CLAMP HUS-221535
...
271
BRACKET, CHOKE CONTROL HUS-807609
...
277
WASHER HUS-805018
...
304
HOUSING, BLOWER, BLACK HUS-807773
...
305
SCREW, SEMS HUS-805406
...
307
SCREW, SEMS HUS-805025
...
308.1
COVER, AIR GUIDE, CYLINDER #1 HUS-807868
...
308.2
COVER, AIR GUIDE, CYLINDER #2 HUS-807869
...
309
MOTOR, STARTING HUS-399169
...
310
BOLT HUS-94169
...
311
SCREEN ROTATING HUS-490311
...
324
SCREEN, ROTATING HUS-280829
...
332
NUT, HEX HUS-805021
...
333
ARMATURE, MAGNETO HUS-492341
...
334
SCREW, MOUNTING HUS-805407
...
337
PLUG, SPARK HUS-491055
...
351
SCREW HUS-805169
...
353
WASHER, LOCK HUS-94791
...
354
NUT, HEX HUS-90576
...
354A
NUT, HEX WASHER HEAD HUS-810078
...
356
WIRE ASSEMBLY, GROUND HUS-493792
...
358
GASKET SET HUS-807887
...
363
PULLER, FLYWHEEL HUS-19203
...
387
PUMP, FUEL HUS-491922
...
423
SCREW, SEMS HUS-805260
...
445
CARTRIDGE, AIR CLEANER HUS-394018
...
467
KNOB, AIR CLEANER HUS-491875
...
474
STATOR, ALTERNATOR HUS-393295
...
501
REGULATOR, ALTERNATOR HUS-394890
...
510
STARTER DRIVE GROUP HUS-490421
...
513
CLUTCH ASSEMBLY HUS-398003
...
520
TERMINAL, SPADE HUS-93722
...
523
DIPSTICK HUS-807516
...
524
SEAL, FILLER TUBE HUS-805011
...
525
TUBE, OIL FILLER HUS-807611
...
526
SCREW, REGULATOR MOUNTING HUS-805448
...
527
CLAMP, FUEL PUMP HUS-223167
...
535
ELEMENT, AIR CLEANER HUS-271271
...
537
GASKET, AIR CLEANER HUS-805655
...
544
ARMATURE ASSEMBLY HUS-490309
...
552
BUSHING, GOVERNOR SHAFT HUS-805412
...
552A
BUSHING, GOVERNOR SHAFT HUS-805413
...
562
BOLT HUS-805381
...
572
BAFFLE, BREATHER HUS-805197
...
573
BACK PLATE ASSEMBLY HUS-807663
...
592
NUT, HEX HUS-805383
...
601
CLAMP, HOSE, GREEN HUS-93053
...
613
SCREW, SEMS HUS-805158
...
614
PIN, COTTER HUS-805417
...
616
FORK, GOVERNOR HUS-807596
...
634
WASHER, GOVERNOR SHAFT HUS-805416
...
634A
SHAFT SEAL KIT HUS-808022
...
635
ELBOW, SPARK PLUG HUS-805529
...
642
COVER ASSEMBLY, AIR CLEANER HUS-807862
...
643
PLATE, AIR FILTER HUS-805631
...
657
SCREW, SEMS HUS-805009
...
668
SPACER, ROTATING SCREEN HUS-805402
...
718
DOWEL, CRANKCASE HUS-805103
...
722
SEAL, BREATHER SCREW HUS-805483
...
726
GEAR, FLYWHEEL RING HUS-807805
...
727
SHIELD, STARTER HUS-805505
...
729
GROMMET, IGNITION CABLE HUS-805641
...
729A
CLIP, DEBRIS HUS-224356
...
741
GEAR, TIMING HUS-805675
...
783
GEAR, STARTER HUS-280104
...
788
BRACKET, FUEL PUMP HUS-807685
...
801
CAP, DRIVE HUS-394856
...
802
CAP ASSEMBLY, COMMUTATOR END HUS-490310
...
803
HOUSING ASSEMBLY HUS-399172
...
819
SCREW, SEMS HUS-805057
...
823
SCREW, MOUNTING HUS-805317
...
842
O-RING HUS-805012
...
851
TERMINAL, IGNITION CABLE HUS-221798
...
862
BRACKET, AIR CLEANER HUS-807859
...
864
LINER, EXHAUST PORT HUS-805083
...
866
VALLEY, COVER, AIR GUIDE HUS-805738
...
868
SEAL, VALVE GUIDE HUS-805094
...
869
SEAT, INTAKE VALVE HUS-805085
...
870
SEAT, EXHAUST VALVE HUS-805086
...
871
GUIDE, VALVE HUS-805084
...
876
PINION SPRING KIT HUS-490467
...
879
COVER, CARBURETOR HUS-805636
...
883
GASKET, EXHAUST MANIFOLD HUS-805024
...
896
ROLL PIN HUS-94288
...
947
SOLENOID HUS-494312
...
975
BOWL, FUEL ASSEMBLY HUS-807913
...
977
GASKET SET, CARBURETOR HUS-807916
...
978
GASKET, OIL FILTER ADAPTOR HUS-805250
...
982
SCREW, SEMS HUS-805030
...
985
INSULATOR ASSEMBLY HUS-398525
...
1003
BRUSH SPRING SET HUS-490316
...
1004
TUBE, AIR INLET HUS-805632
...
1005
FAN, FLYWHEEL HUS-807863
...
1006
RETAINER, FAN HUS-224413
...
1014
DEFLECTOR, BREATHER, A.C. HUS-807797
...
1022
NUT, HEX HUS-805028
...
1023
COVER, VALVE HUS-805100
...
xx
COVER, VALVE HUS-807665
...
1024
OIL PUMP ASSEMBLY HUS-807546
...
1025
SLIDER, GOVERNOR HUS-805313
...
1026
ROD, PUSH, INTAKE HUS-805352
...
xx
ROD, PUSH, EXHAUST HUS-805617
...
1027
FILTER, OIL HUS-492932
...
1028
ADAPTER, OIL FILTER HUS-805292
...
1029
ARM, ROCKER HUS-807557
...
1030
SHAFT, ROCKER ARM HUS-805342
...
1031
SUPPORT, ROCKER ARM HUS-805341
...
1033
OVERHAUL KIT, VALVE HUS-807910
...
1036
BREATHER GASKET SET HUS-807688
...
1037
BALL, CHOKE LOCATOR HUS-807915
