Husqvarna AYP7158A49 (1994) Tractor

Model: AYP7158A49 (1994)

Back To Assemblies

Save Part Not Listed?
product name

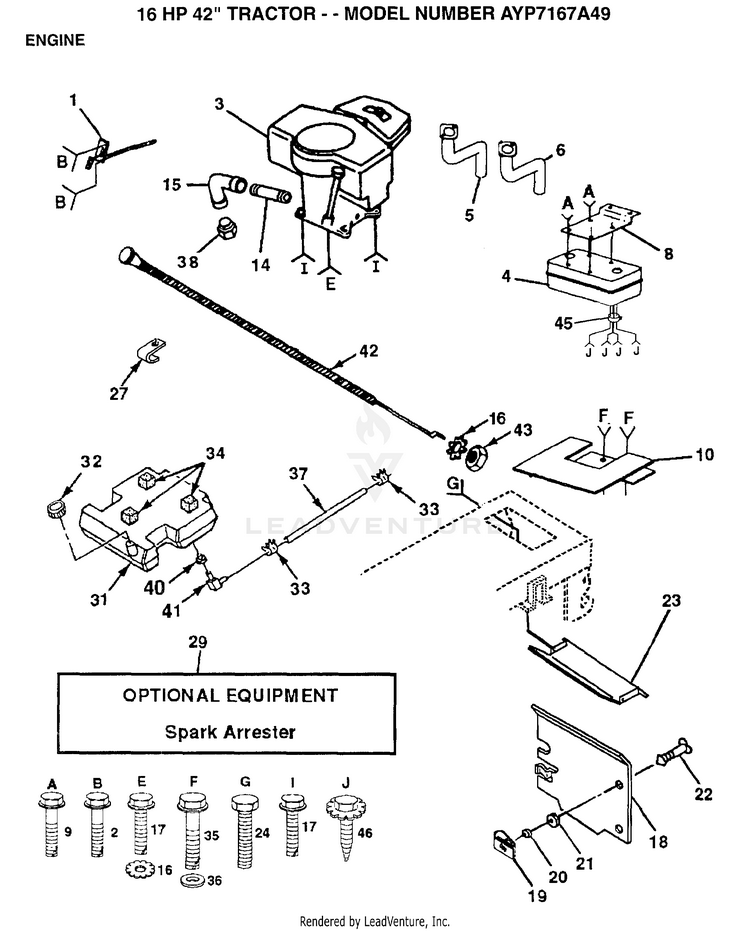

ENGINE, 16 HP, BASIC PTS.

...
...
1
CONTROL THRT 35.5 HUS-141295
...
2
SCREW LT HUS-17720410
...
3
ENGINE HUS-131958
...
4
SUB= 149723 HUS-122440X
...
5
TUBE ASSY EXH LH HUS-122434X
...
6
TUBE ASSY EXH RH HUS-122435X
...
8
BRACKET MUFFLER HUS-122439X
...
9
SCREW ST HUS-17190408
...
10
SHIELD HEAT LT HUS-143600
...
14
PIPE NIPPLE LT HUS-13280336
...
15
ELBOW HUS-13200300
...
16
LOCKWASHER HUS-11050600
...
17
SCREW HUS-17490620
...
18
SHIELD HEAT HUS-136718
...
19
RECEPTACLE LT HUS-105839X
...
20
RETAINER LT HUS-105838X
...
21
WASHER HUS-19091016
...
22
STUD.1/4.TURN HUS-123650X
...
23
HEAT SHIELD HUS-128953
...
24
SCREW HUS-17021008
...
27
"CLIP,INSULATOR" HUS-126471X
...
29
SUB= 532137180 HUS-137180
...
30
SUB= 532127057 HUS-127057X
...
31
SUB= 151346 HUS-141069
...
32
CAP ASM FUEL HUS-140527
...
33
HOSE CLAMP HUS-123487X
...
34
PAD-SPACER LT HUS-106082X
...
35
SCREW HUS-17490512
...
36
WASHER HUS-19132012
...
37
FUEL LINE T HUS-8543R
...
39
PAD IDLER TI HUS-109227X
...
40
BUSHING OUTLET T HUS-3645J
...
41
SUB= 139277 HUS-139227
...
42
SUB= 532132780 HUS-132780
...
43
SUB= 7810H HUS-73610600
...
45
DEFLECTOR.222573 HUS-101326L
...
46
SUB= 17030814 HUS-17030808
