Husqvarna AYP7143B59 (1995) Tractor

Model: AYP7143B59 (1995)

Back To Assemblies

Save Part Not Listed?
product name

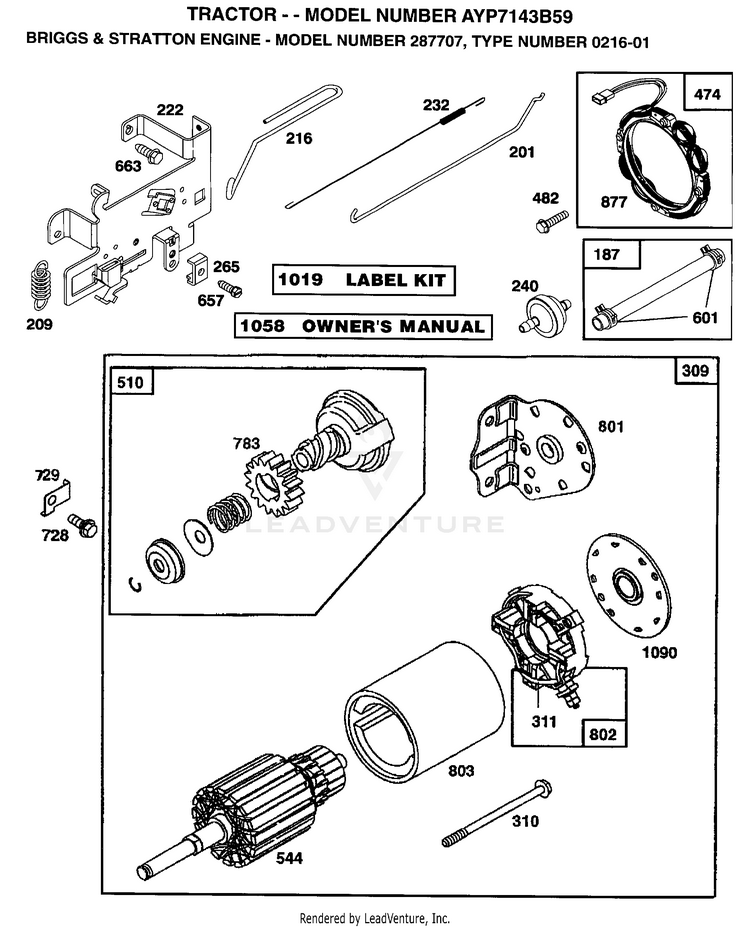

ENGINE/B&S

...
...
1
CYLINDER ASSEMBLY HUS-490450
...
2
P/N CONFLICT - CHECK WITH SUPPLIER HUS-399265
...
3
SEAL, OIL HUS-391086
...
5
HEAD, CYLINDER HUS-494240
...
7
GASKET, CYLINDER HEAD HUS-271866
...
8
BREATHER ASSEMBLY HUS-391406
...
9
GASKET, VALVE COVER HUS-27803
...
10
SCREW, STEMS HUS-94621
...
11
TUBE, BREATHER HUS-280100
...
12
GASKET, CRANKCASE COVER 1/64" HUS-271916
...
xx
GASKET, CRANKCASE COVER .005" HUS-271997
...
xx
GASKET, CRANKCASE COVER .009" HUS-271996
...
13
SCREW, CYLINDER HEAD 3" HUS-94622
...
15
PLUG, OIL DRAIN HUS-94239
...
16
CRANKSHAFT HUS-495162
...
xx
KEY, TIMING GEAR HUS-94196
...
18
BASE, ENGINE HUS-494238
...
20
SEAL, OIL HUS-291675
...
22
SCREW, SEMS, BASE MOUNTING HUS-94624
...
23
FLYWHEEL & RING GEAR ASSY, MAGNETO HUS-492326
...
24
KEY, FLYWHEEL HUS-222698
...
25
PISTON ASSEMBLY, STANDARD HUS-394661
...
xx
PISTON ASSEMBLY .010" OVERSIZE HUS-394662
...
xx
PISTON ASSEMBLY .020" OVERSIZE HUS-394663
...
xx
PISTON ASSEMBLY .030" OVERSIZE HUS-394664
...
xx
RING SET, PISTON, STANDARD HUS-391780
...
26
RING SET, PISTON, STANDARD HUS-391780
...
xx
RING SET, PISTON, STANDARD SIZE HUS-392331
...
xx
RING SET, PISTON .010" OVERSIZE HUS-391781
...
xx
RING SET, PISTON .020" OVERSIZE HUS-391782
...
xx
RING SET, PISTON .030" OVERSIZE HUS-391783
...
27
LOCK, PISTON PIN HUS-260924
...
28
PIN ASSEMBLY, PISTON, STANDARD HUS-299691
...
xx
PIN ASSEMBLY, PISTON .005" OVER HUS-391286
...
29
ROD ASSEMBLY, CONNECTING HUS-490348
...
xx
ROD ASSEMBLY, CONNECTING .020" UNDERSIZE CRANKPIN HUS-490469
...
32
SCREW, CONNECTING ROD HUS-94671
...
33
VALVE, EXHAUST HUS-262246
...
34
VALVE, INTAKE HUS-262247
...
35
SPRING, INTAKE VALVE HUS-65906
...
36
SPRING, EXHAUST VALVE HUS-26828
...
37
GUARD, FLYWHEEL HUS-224502
...
40
RETAINER, INTAKE VALVE HUS-221596
...
41
RETAINER, EXHAUST VALVE HUS-292260
...
42
RETAINER, EXHAUST VALVE ROTOCOIL(2) HUS-93630
...
45
TAPPET-VALVE HUS-262248
...
46
GEAR, CAM HUS-212897
...
51
GASKET, CARBURETOR (CARBURETOR TO ELBOW) HUS-272465
...
52
GASKET CARB HUS-272554
...
53
STUD, CARBURETOR MOUNTING HUS-94637
...
75
WASHER, SPRING HUS-224061
...
78
SCREW, SEMS HUS-93805
...
95
SCREW, THROTTLE HUS-94098
...
98
SCREW, IDLE SPEED HUS-495800
...
104
PIN, FLOAT HINGE HUS-231789
...
105
VALVE ASSY, INLET NEEDLE HUS-231855
...
106
INLET VALVE SEAT HUS-231854
...
108
VALVE, CHOKE HUS-224540
...
118
VALVE, NEEDLE HUS-494383
...
121
IN CARBURETOR OVERHAUL KIT HUS-495799
...
123
SCREW, ELBOW MOUNTING HUS-94616
...
125
CARBURETOR ASSEMBLY HUS-495706
...
130
VALVE, THROTTLE HUS-224539
...
131
SHAFT & LEVER, THROTTLE HUS-494379
...
133
FLOAT, CARBURETOR HUS-494381
...
137
GASKET, FLOAT BOWL HUS-281165
...
138
WASHER, FLOAT BOWL SCREW HUS-281164
...
141
SHAFT AND LEVER, CHOKE HUS-494380
...
142
NOZZLE/JET, CARBURETOR HUS-494537
...
147
PILOT, JET HUS-231794
...
164
ELBOW, INTAKE HUS-213819
...
171
P/N CONFLICT - CHECK WITH SUPPLIER HUS-281051
...
187
HOSE (CUT TO SUIT) HUS-393815
...
188
SCREW, HEX HEAD HUS-93535
...
201
LINK, GOVERNOR HUS-262767
...
209
SPRING, GOVERNOR HUS-260871
...
216
LINK, CHOKE HUS-262766
...
219
GOVERNOR GEAR HUS-490815
...
222
PLATE, GOVERNOR CONTROL HUS-494887
...
224
SCREW, SEMS, AIR CLEANER HUS-94513
...
225
CRANK, GOVERNOR HUS-231058
...
xx
GASKET SET HUS-494241
...
xx
IN CARBURETOR OVERHAUL KIT HUS-495799
...
xx
CARBURETOR GASKET KIT HUS-494385
...
227
LEVER ASSY, GOVERNOR HUS-493935
...
230
WASHER, GOVERNOR CRANK, 1/4" I.D. HUS-94742
...
323
SPRING, GOVERNOR LINK HUS-262785
...
240
FILTER, FUEL HUS-394358
...
265
CLAMP HUS-221535
...
284
SCREW, AIR CLEANER HUS-94326
...
304
HOUSING, BLOWER HUS-494269
...
305
SCREW, SEMS, BLOWER, HOUSING MOUNTING HUS-94619
...
306
SHIELD, CYLINDER HUS-224545
...
307
SCREW, SEMS, CYLINDER SHIELD MTG. HUS-94623
...
308
COVER, CYLINDER HEAD HUS-491490
...
333
ARMATURE, MAGNETO HUS-492341
...
334
SCREW, SEM, ARMATURE MOUNTING HUS-93381
...
337
PLUG, SPARK HUS-802592
...
346
SUB= 69485 HUS-93705
...
356
WIRE, GROUND HUS-494328
...
358
GASKET SET HUS-494241
...
363
PULLER, FLYWHEEL HUS-19203
...
383
WRENCH SPARK PLUG HUS-89838
...
422
CLAMP, OIL FILLER TUBE HUS-223721
...
423
SCREW, HEX HEAD HUS-94073
...
445
CARTRIDGE, AIR CLEANER HUS-493909
...
455
CUP, SCREEN MOUNTING HUS-222561
...
467
KNOB, AIR CLEANER HUS-493903
...
468
SCREEN, FLUSH ROTATING HUS-222562
...
474
STATOR, ALTERNATOR, DUAL CIRCUIT HUS-393474
...
482
SCREW, SEMS HUS-93621
...
523
CAP AND DIPSTICK, OIL FILLER HUS-490327
...
524
SEAL, FILLER TUBE HUS-68838
...
525
TUBE, OIL FILLER HUS-280741
...
535
ELEMENT, AIR CLEANER HUS-272403
...
537
O-RING, AIR CLEANER HUS-281106
...
552
BUSHING, GOVERNOR CRANK, 1/4" I.D. HUS-231597
...
562
BOLT, GOVERNOR LEVER HUS-92613
...
592
NUT, HEX HUS-231082
...
601
CLAMP, HOSE, GREEN HUS-93053
...
611
FUEL INLET TUBE HUS-494451
...
614
COTTER, HAIR PIN HUS-93306
...
615
RETAINER, E-RING HUS-93307
...
618
SPRING, CHOKE RETURN HUS-262803
...
634
SEAL, CHOKE SHAFT HUS-281168
...
634A
SEAL, GOVERNOR HUS-491323
...
634B
WASHER, THROTTLE SHAFT HUS-281167
...
635
ELBOW, SPARK PLUG HUS-66538
...
646
BRACE, AIR CLEANER HUS-224546
...
657
SCREW, SEMS HUS-93496
...
663
SCREW, HEX HEAD HUS-94620
...
668
SPACER HUS-280848
...
726
GEAR, RING HUS-392134
...
727
COVER, STARTER HUS-490324
...
728
SCREW, SEMS 3/4" HUS-94627
...
729
CLIP, LEAD WIRE HUS-281159
...
729A
RETAINER, WIRE HUS-224723
...
741
GEAR, TIMING HUS-262135
...
757
LINK, COUNTERWEIGHT HUS-212359
...
758
COUNTERWEIGHT ASSY HUS-399891
...
759
PIN ASSY, PISTON, STD HUS-298909
...
761
SCREW, COUTENWEIGHT HUS-93875
...
842
SEAL, OIL FILLER CAP HUS-270920
...
847
FILL GROUP, OIL HUS-490474
...
851
TERMINAL, IGNITION CABLE HUS-221798
...
869
SEAT, INTAKE VALVE, STANDARD HUS-261463
...
870
SEAT, EXHAUST VALVE, STANDARD HUS-213316
...
871
GUIDE, EXHAUST VALVE HUS-261961
...
xx
GUIDE, INTAKE VALVE HUS-231218
...
872
COVER, AIR CLEANER HUS-281104
...
875
BODY, AIR CLEANER HUS-494237
...
877
DIODE & CONNECTOR ASSY HUS-393456
...
955
SCREW, FUEL BOWL HUS-94642
...
965
LOCKNUT, AIR CLEANER MOUNTING HUS-94108
...
975
BOWL ASSEMBLY, CARBURETOR HUS-494378
...
977
CARBURETOR GASKET KIT HUS-494385
...
987
SEAL, THROTTLE SHAFT HUS-281166
...
1005
FAN, FLYWHEEL HUS-280687
...
1006
RETAINER, FAN HUS-224413
...
1019
LABEL KIT HUS-491255
...
1044
SCREW, SHOULDER, HEX HEAD HUS-94673
