Husqvarna AYP7143A69 (1996) Tractor

Model: AYP7143A69 (1996)

Back To Assemblies
Save
Part Not Listed?Part Not Listed?
product name

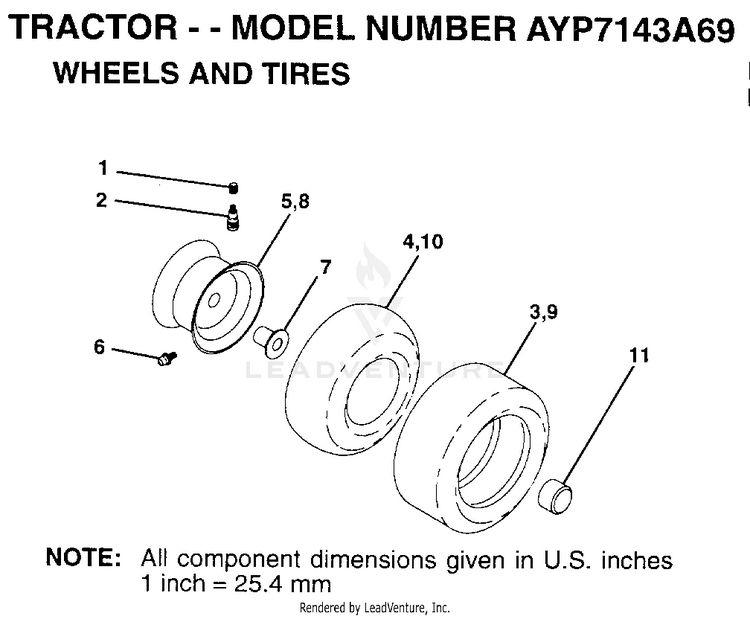

WHEELS AND TIRES

...
...
1
VALVE CAP PLN-59192

...
2
VALVE STEM LT PLN-65139

...
3
SUB= 122073X PLN-106222X

...
4
TUBE.5.3/4.5/6 PLN-59904

...
5
"RIM ASM 6"" FRT" PLN-106732X427

...
6
FITTING LT PLN-278H

...
7
"FLANGE, BEARING" PLN-9040H

...
8
"RIM AS 8"" REAR" PLN-106108X427

...
9
SUB= 122074X PLN-106268X

...
10
TUBE.18X9.5-8 PLN-7152J

...
11
HUB CAP PLN-104757X

...
xx
SEALANT.TIRE 10 OZ. TUBE PLN-144334
...
...
...
