Husqvarna AYP7143A49 (1994) Tractor

Model: AYP7143A49 (1994)

Back To Assemblies

Save Part Not Listed?
product name

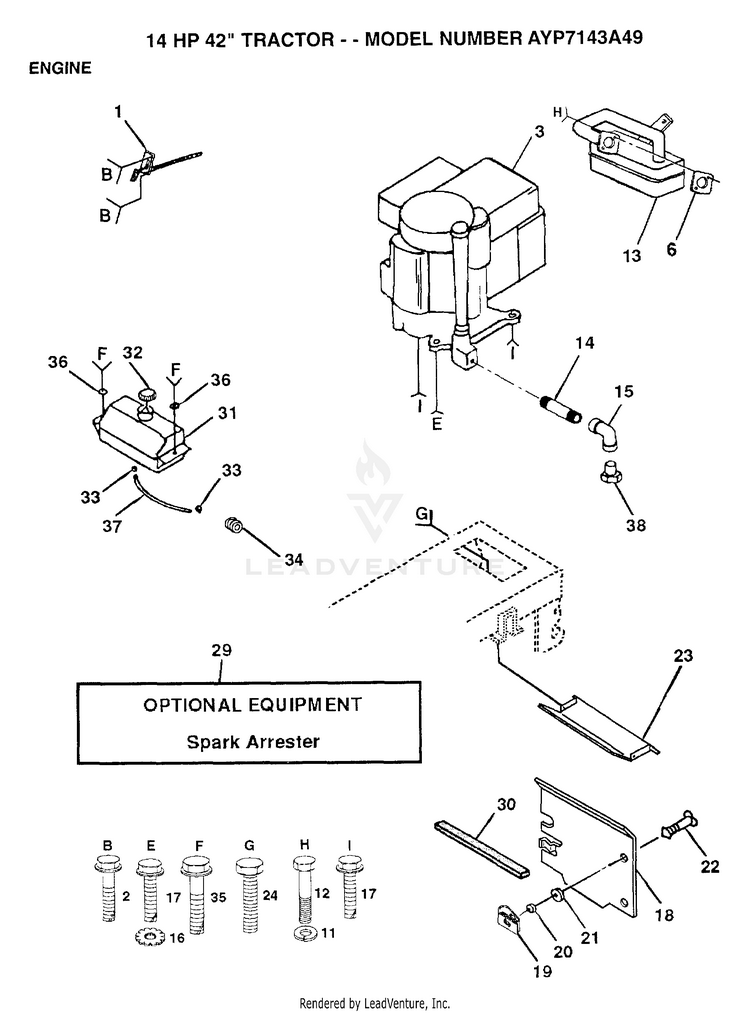

ENGINE

...
...
1
SUB= 918132759 HUS-132759
...
2
SCREW LT HUS-17720410
...
6
SUB= 272293 HUS-125593X
...
11
LOCKWASHER HUS-10040500
...
12
SCREW HUS-71070512
...
13
MUFFLER HUS-137352
...
14
PIPE NIPPLE HUS-13280324
...
15
ELBOW HUS-13200300
...
16
LOCKWASHER HUS-11050600
...
17
SCREW HUS-17490620
...
18
SHIELD HEAT HUS-136718
...
19
RECEPTACLE LT HUS-105839X
...
20
RETAINER LT HUS-105838X
...
21
WASHER HUS-19091016
...
22
STUD.1/4.TURN HUS-123650X
...
23
HEAT SHIELD HUS-128953
...
24
SCREW HUS-17021008
...
29
SUB= 532137180 HUS-137180
...
30
SUB= 532127057 HUS-127057X
...
31
TANK.FUEL.LT. HUS-109202X
...
32
SUB= 158990 HUS-123549X
...
33
HOSE CLAMP HUS-123487X
...
34
SUB= 532124028 HUS-124028X
...
35
SCREW HEX CRT HUS-17490412
...
36
WASHER HUS-19091416
...
37
FUEL LINE T HUS-8548R
