Husqvarna AYP7143A49 (1994) Tractor

Model: AYP7143A49 (1994)

Back To Assemblies

Save Part Not Listed?
product name

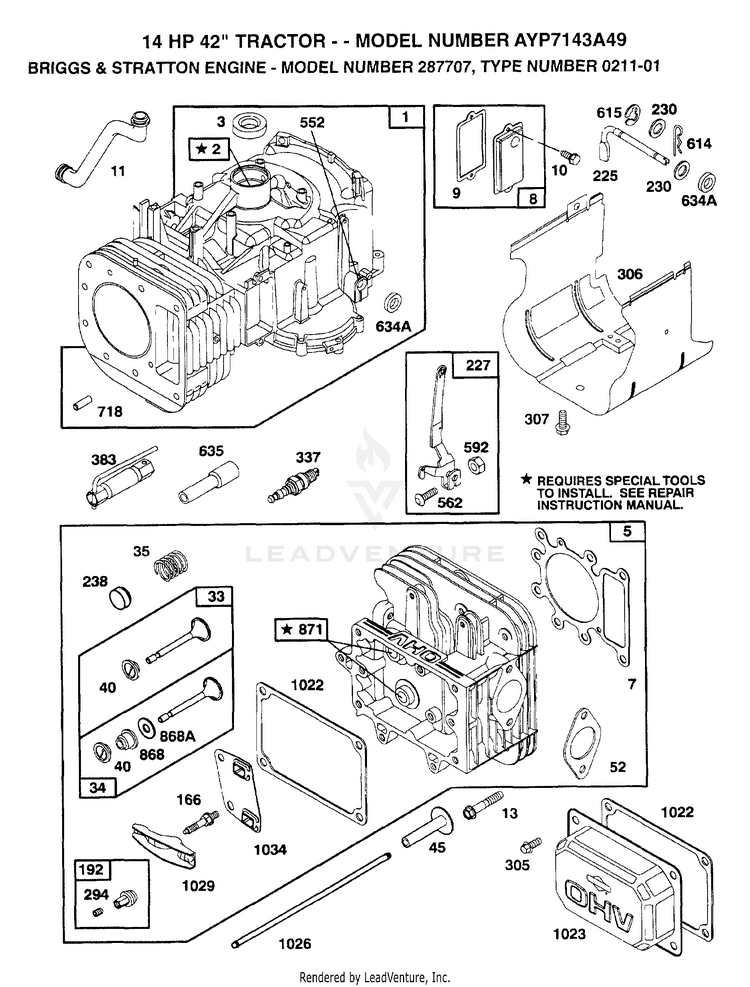

ENGINE/B&S

...
...
1
CYLINDER ASSY HUS-496412
...
2
P/N CONFLICT - CHECK WITH SUPPLIER HUS-399265
...
3
SEAL, OIL HUS-391086
...
5
HEAD, CYLINDER HUS-495858
...
7
GASKET, CYLINDER HEAD HUS-272614
...
8
BREATHER ASSY HUS-495735
...
9
GASKET, VALVE COVER HUS-27803
...
10
SCREW, STEMS HUS-94621
...
11
TUBE, BREATHER HUS-281246
...
12
GASKET, CRANKCASE COVER 1/64" HUS-271916
...
xx
GASKET, CRANKCASE COVER .005" HUS-271997
...
xx
GASKET, CRANKCASE COVER .009" HUS-271996
...
13
SCREW, CYLINDER HEAD HUS-94728
...
15
PLUG, OIL DRAIN HUS-94239
...
16
CRANKSHAFT HUS-495162
...
xx
KEY, TIMING GEAR HUS-94196
...
18
BASE, ENGINE HUS-494238
...
20
SEAL, OIL HUS-291675
...
22
SCREW, SEMS, BASE MOUNTING HUS-94624
...
23
FLYWHEEL & RING GEAR ASSY, MAGNETO HUS-492326
...
24
KEY, FLYWHEEL HUS-222698
...
25
PISTON ASSY, STANDARD SIZE HUS-495860
...
xx
PISTON ASSY .010" OVERSIZE HUS-495977
...
xx
PISTON ASSY .020" OVERSIZE HUS-495978
...
xx
PISTON ASSY .030" OVERSIZE HUS-495979
...
26
RING SET, PISTON, STANDARD SIZE HUS-495854
...
xx
RING SET, PISTON, .010" OVERSIZE HUS-495852
...
xx
RING SET, PISTON, .020" OVERSIZE HUS-495851
...
xx
RING SET, PISTON, .030" OVERSIZE HUS-495855
...
27
LOCK, PISTON PIN HUS-260924
...
28
PIN ASSEMBLY, PISTON, STANDARD HUS-299691
...
xx
PIN ASSEMBLY, PISTON .005" OVER HUS-391286
...
29
ROD ASSY, CONNECTING HUS-494504
...
xx
ROD ASSY, CONNECTING HUS-495490
...
33
VALVE, EXHAUST HUS-495856
...
32
SCREW HUS-94695
...
32A
SCREW HUS-94648
...
34
VALVE, INTAKE HUS-495857
...
35
SPRING, VALVE HUS-262811
...
37
GUARD, FLYWHEEL HUS-224502
...
40
RETAINER, VALVE SPRING HUS-224641
...
45
TAPPET, VALVE HUS-262411
...
46
GEAR CAM HUS-494433
...
51
GASKET, CARBURETOR (CARBURETOR TO ELBOW) HUS-272465
...
52
GASKET, CARBURETOR HUS-272569
...
53
STUD, CARBURETOR MOUNTING HUS-94637
...
75
WASHER, SPRING HUS-224061
...
78
SCREW, SEMS HUS-94626
...
95
SCREW, THROTTLE HUS-94098
...
98
SCREW, IDLE SPEED HUS-495800
...
104
PIN, FLOAT HINGE HUS-231789
...
105
VALVE ASSY, INLET NEEDLE HUS-231855
...
106
INLET VALVE SEAT HUS-231854
...
108
VALVE, CHOKE HUS-224540
...
117
JET, NEEDLE VALVE HUS-231858
...
118
VALVE, NEEDLE HUS-495932
...
121
IN CARBURETOR OVERHAUL KIT HUS-495799
...
123
SCREW, ELBOW MOUNTING HUS-94616
...
125
CARBURETOR ASSEMBLY HUS-495935
...
130
VALVE, THROTTLE HUS-224539
...
131
SHAFT & LEVER, THROTTLE HUS-494379
...
133
FLOAT, CARBURETOR HUS-494381
...
137
GASKET, FLOAT BOWL HUS-281165
...
138
WASHER, FLOAT BOWL SCREW HUS-281164
...
141
SHAFT & LEVER, CHOKE HUS-495931
...
142
NOZZLE, CARBURETOR HUS-231859
...
147
PILOT, JET HUS-231794
...
164
ELBOW CARB HUS-214053
...
166
STUD, ROCKER ARM HUS-94555
...
171
P/N CONFLICT - CHECK WITH SUPPLIER HUS-281051
...
187
HOSE (CUT TO SUIT) HUS-393815
...
188
SCREW, HEX HEAD HUS-93535
...
192
SCREW ASSY, ROCKER ARM HUS-492160
...
201
LINK, GOVERNOR HUS-262767
...
209
SPRING, GOVERNOR HUS-260695
...
216
LINK, CHOKE HUS-262766
...
219
GOVERNOR GEAR HUS-490815
...
222
PLATE, GOVERNOR CONTROL HUS-495611
...
224
SCREW, SEMS, HEX HEAD HUS-94729
...
225
CRANK, GOVERNOR HUS-231058
...
227
LEVER ASSY, GOVERNOR HUS-493935
...
230
WASHER, GOVERNOR CRANK, 1/4" I.D. HUS-94742
...
232
SPRING, GOVERNOR LINK HUS-262785
...
238
CAP, VALVE HUS-262836
...
240
FILTER, FUEL HUS-394358
...
265
CLAMP HUS-221535
...
284
SCREW, AIR CLEANER HUS-94326
...
284A
SCREW, HEX HEAD HUS-94073
...
294
SCREW, SET HUS-810068
...
304
HOUSING, BLOWER HUS-496281
...
305
SCREW, SEMS, AIR CLEANER HUS-94513
...
305A
SCREW HUS-94734
...
306
SHIELD CYLINDER HUS-224696
...
307
SCREW, SEMS, CYLINDER SHIELD MTG. HUS-94623
...
xx
MOTER AND DRIVE ASSY. HUS-394805
...
xx
BOLT HUS-94003
...
xx
BRUSH ASSEMBLY HUS-395538
...
333
ARMATURE, MAGNETO HUS-495859
...
334
SCREW, SEM, ARMATURE MOUNTING HUS-93381
...
337
PLUG, SPARK HUS-491055
...
346
SUB= 69485 HUS-93705
...
356
WIRE ASSEMBLY HUS-496070
...
358
GASKET SET HUS-495993
...
363
PULLER, FLYWHEEL HUS-19203
...
383
WRENCH SPARK PLUG HUS-89838
...
423
SCREW, HEX HEAD HUS-94073
...
445
CARTRIDGE, AIR CLEANER HUS-493909
...
455
CUP, SCREEN MOUNTING HUS-222561
...
467
KNOB, AIR CLEANER HUS-493903
...
468
SCREEN, FLUSH ROTATING HUS-224948
...
474
STATOR, ALTERNATOR, DUAL CIRCUIT HUS-393474
...
482
SCREW, SEMS HUS-93621
...
xx
STARTER DRIVE GROUP HUS-495878
...
523
CAP AND DIPSTICK, OIL FILLER HUS-495230
...
524
SEAL, FILLER TUBE HUS-68838
...
525
TUBE, OIL FILLER HUS-496113
...
535
ELEMENT, AIR CLEANER HUS-272403
...
537
O-RING, AIR CLEANER HUS-281106
...
xx
ARRMATURE ASSEMBLY HUS-390837
...
552
BUSHING, GOVERNOR CRANK, 1/4" I.D. HUS-231597
...
562
BOLT, GOVERNOR LEVER HUS-92613
...
592
NUT, HEX HUS-231082
...
601
CLAMP, HOSE, GREEN HUS-93053
...
611
ELBOW, FUEL PIPE HUS-493496
...
614
COTTER, HAIR PIN HUS-93306
...
615
RETAINER, E-RING HUS-93307
...
618
SPRING, CHOKE RETURN HUS-262803
...
634
SEAL, CHOKE SHAFT HUS-281168
...
634A
SEAL, GOVERNOR HUS-491323
...
634B
WASHER, THROTTLE SHAFT HUS-281167
...
635
ELBOW, SPARK PLUG HUS-280872
...
646
BRACE, AIR CLEANER HUS-224546
...
657
SCREW, SEMS HUS-93496
...
668
SPACER HUS-280848
...
718
PIN, DOWEL HUS-230192
...
726
GEAR, RING HUS-392134
...
727
COVER, STARTER HUS-490324
...
741
GEAR, TIMING HUS-262932
...
757
LINK, COUNTERWEIGHT HUS-213998
...
758
COUNTERWEIGHT ASSY HUS-399891
...
759
PIN ASSY, PISTON, STD HUS-298909
...
761
SCREW, COUNTERWEIGHT HUS-94593
...
xx
CAP, DRIVE HUS-394856
...
xx
END CAP ASS'Y. COMMUTATOR HUS-395537
...
xx
HOUSING ASSEMBLY HUS-398159
...
842
SEAL, OIL FILLER CAP HUS-270920
...
847
P/N CONFLICT - CHECK WITH SUPPLIER HUS-496415
...
851
TERMINAL, IGNITION CABLE HUS-224110
...
868
SEAL ASSEMBLY, VALVE HUS-494435
...
868A
GASKET, VALVE HUS-272610
...
871
BUSHING, GUIDE (INTAKE & EXHAUST) HUS-262835
...
872
COVER, AIR CLEANER HUS-281104
...
875
BODY, AIR CLEANER HUS-495862
...
877
DIODE & CONNECTOR ASSY HUS-393456
...
947
SOLENOID HUS-495739
...
965
LOCKNUT, AIR CLEANER MOUNTING HUS-94108
...
975
BOWL ASSEMBLY, CARBURETOR HUS-495933
...
977
CARBURETOR GASKET KIT HUS-494385
...
987
SEAL, THROTTLE SHAFT HUS-281166
...
1005
FAN, FLYWHEEL HUS-281355
...
1006
RETAINER, FAN HUS-224413
...
1022
GASKET, COVER HUS-272475
...
1023
COVER, ROCKER ARM HUS-224552
...
1026
ROD, PUSH, INTAKE HUS-494432
...
xx
ROD, PUSH, EXHAUST HUS-495136
...
1029
ARM, ROCKER HUS-224554
...
1033
VALVE OVERHAUL KIT HUS-495992
...
1034
GUIDE ASSEMBLY, PUSH ROD HUS-495248
...
1044
SCREW, SHOULDER, HEX HEAD HUS-94673
...
1054
TIE, CABLE HUS-270723
