Husqvarna AYP7122B29 (1992) Tractor

Model: AYP7122B29 (1992)

Back To Assemblies

Save Part Not Listed?
product name

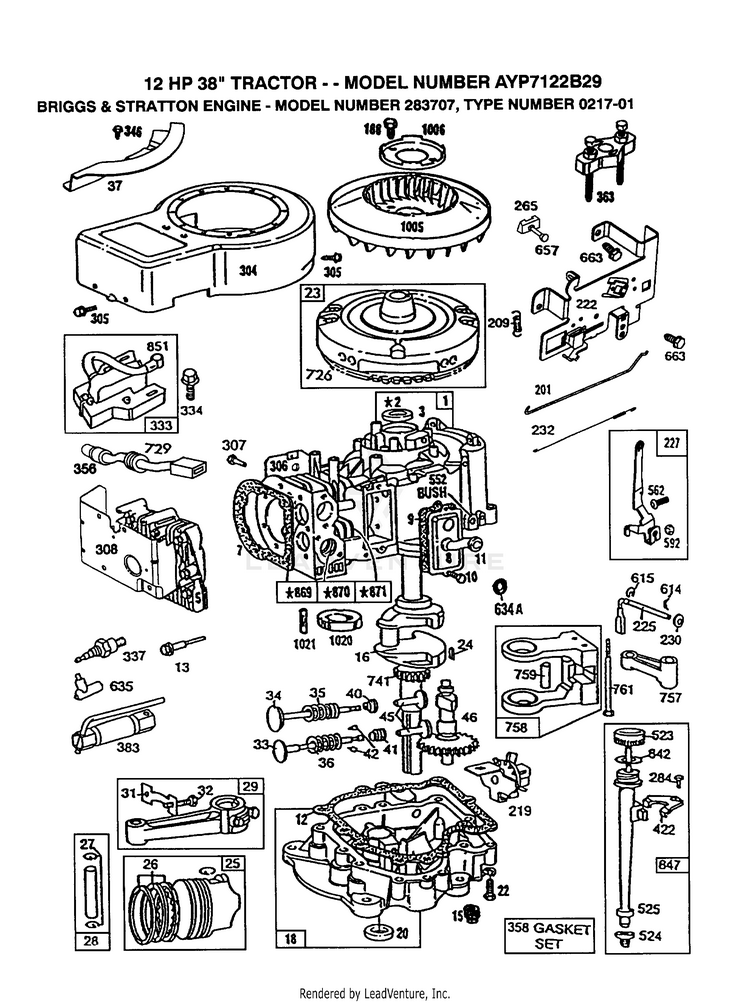

ENGINE/B&S

...
...
1
CYLINDER ASSEMBLY HUS-490450
...
2
P/N CONFLICT - CHECK WITH SUPPLIER HUS-399265
...
3
SEAL, OIL HUS-391086
...
5
HEAD, CYLINDER HUS-494240
...
7
GASKET, CYLINDER HEAD HUS-271866
...
8
BREATHER ASSEMBLY HUS-391406
...
9
GASKET, VALVE COVER HUS-27803
...
10
SCREW, SEMS, BREATHER, MOUNTING HUS-93394
...
11
TUBE, BREATHER HUS-280100
...
12
GASKET, CRANKCASE COVER 1/64" HUS-271916
...
12A
GASKET, CRANKCASE COVER .005" HUS-271997
...
12B
GASKET, CRANKCASE COVER .009" HUS-271996
...
13
SCREW, CYLINDER HEAD 3" HUS-93723
...
15
PLUG, OIL DRAIN HUS-94239
...
16
CRANKSHAFT HUS-490466
...
16A
KEY, TIMING GEAR HUS-94196
...
18
BASE, ENGINE HUS-494238
...
20
SEAL, OIL HUS-291675
...
22
SCREW, SEMS, BASE MOUNTING HUS-94305
...
23
FLYWHEEL & RING GEAR ASSY, MAGNETO HUS-492326
...
24
KEY, FLYWHEEL HUS-222698
...
25
PISTON ASSEMBLY, STANDARD HUS-394661
...
25A
PISTON ASSEMBLY .010" OVERSIZE HUS-394662
...
25B
PISTON ASSEMBLY .020" OVERSIZE HUS-394663
...
25C
PISTON ASSEMBLY .030" OVERSIZE HUS-394664
...
26
RING SET, PISTON, STANDARD HUS-391780
...
26A
RING SET, PISTON, STANDARD SIZE HUS-392331
...
26B
RING SET, PISTON .010" OVERSIZE HUS-391781
...
26C
RING SET, PISTON .020" OVERSIZE HUS-391782
...
26D
RING SET, PISTON .030" OVERSIZE HUS-391783
...
27
LOCK, PISTON PIN HUS-260924
...
28
PIN ASSEMBLY, PISTON, STANDARD HUS-299691
...
28A
PIN ASSEMBLY, PISTON .005" OVER HUS-391286
...
29
ROD ASSEMBLY, CONNECTING HUS-490348
...
29A
ROD ASSEMBLY, CONNECTING .020" UNDERSIZE CRANKPIN HUS-490469
...
31
LOCK, CONNECTING ROD SCREW HUS-222299
...
32
SCREW, CONNECTING ROD HUS-92909
...
33
VALVE, EXHAUST HUS-262246
...
34
VALVE, INTAKE HUS-262247
...
35
SPRING, INTAKE VALVE HUS-65906
...
36
SPRING, EXHAUST VALVE HUS-26828
...
37
GUARD, FLYWHEEL HUS-223752
...
40
RETAINER, INTAKE VALVE HUS-221596
...
41
RETAINER, EXHAUST VALVE HUS-292260
...
42
RETAINER, EXHAUST VALVE ROTOCOIL(2) HUS-93630
...
45
TAPPET-VALVE HUS-262248
...
46
GEAR, CAM HUS-212897
...
188
SCREW, HEX HEAD HUS-93535
...
201
LINK, GOVERNOR HUS-262767
...
209
SPRING, GOVERNOR HUS-260871
...
219
GOVERNOR GEAR HUS-490815
...
222
PLATE, GOVERNOR CONTROL HUS-494887
...
225
CRANK, GOVERNOR HUS-231058
...
227
LEVER ASSY, GOVERNOR HUS-493935
...
230
WASHER, GOVERNOR LEVER HUS-222450
...
232
SPRING, GOVERNOR LINK HUS-262785
...
265
CLAMP HUS-221535
...
284
SCREW, CLAMP MOUNTING HUS-94419
...
284A
SCREW, AIR CLEANER HUS-94326
...
304
HOUSING, BLOWER HUS-494269
...
305
SCREW, SEMS HUS-94608
...
306
SHIELD, CYLINDER HUS-224545
...
307
SCREW, SEMS HUS-93949
...
308
COVER, CYLINDER HEAD HUS-491490
...
333
ARMATURE, MAGNETO HUS-492341
...
334
SCREW, SEM, ARMATURE MOUNTING HUS-93381
...
337
PLUG, SPARK HUS-802592
...
346
SUB= 69485 HUS-93705
...
356
WIRE, GROUND HUS-494328
...
358
GASKET SET HUS-494241
...
363
PULLER, FLYWHEEL HUS-19203
...
383
WRENCH SPARK PLUG HUS-89838
...
422
CLAMP, OIL FILLER TUBE HUS-223721
...
xx
STARTER DRIVE GROUP HUS-490421
...
523
CAP AND DIPSTICK, OIL FILLER HUS-490327
...
524
SEAL, FILLER TUBE HUS-68838
...
525
TUBE, OIL FILLER HUS-280741
...
xx
ARRMATURE ASSEMBLY HUS-390837
...
552
BUSHING, GOVERNOR CRANK, 1/4" I.D. HUS-231597
...
562
BOLT, GOVERNOR LEVER HUS-92613
...
592
NUT, HEX HUS-231082
...
614
COTTER, HAIR PIN HUS-93306
...
615
RETAINER, E-RING HUS-93307
...
634A
SEAL, GOVERNOR HUS-491323
...
635
ELBOW, SPARK PLUG HUS-66538
...
657
SCREW, SEMS HUS-93496
...
663
SCREW, HEX HEAD HUS-94620
...
726
GEAR, RING HUS-392134
...
729
CLIP, LEAD WIRE HUS-281159
...
741
GEAR, TIMING HUS-262135
...
757
LINK, COUNTERWEIGHT HUS-212359
...
758
COUNTERWEIGHT ASSY HUS-399891
...
759
PIN ASSY, PISTON, STD HUS-298909
...
761
SCREW, COUTENWEIGHT HUS-93875
...
xx
END CAP ASS'Y. COMMUTATOR HUS-395537
...
842
SEAL, OIL FILLER CAP HUS-270920
...
847
FILL GROUP, OIL HUS-490474
...
851
TERMINAL, IGNITION CABLE HUS-221798
...
869
SEAT, INTAKE VALVE, STANDARD HUS-261463
...
870
SEAT, EXHAUST VALVE, STANDARD HUS-213316
...
1005
FAN, FLYWHEEL HUS-280687
...
1006
RETAINER, FAN HUS-224413
...
1020
ECCENTRIC HUS-262243
...
1021
PIN, ECCENTRIC HUS-94160
