Husqvarna AYP3209A49 (1994) Tiller

Model: AYP3209A49 (1994)

Back To Assemblies

Save Part Not Listed?
product name

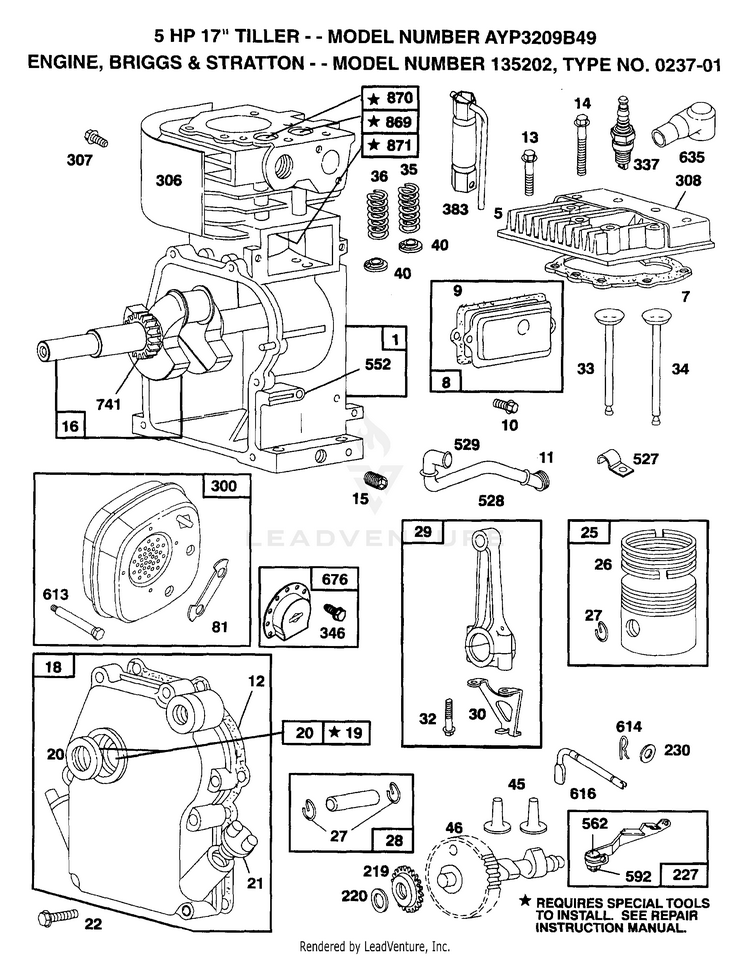

ENGINE

...
...
1
CYLINDER ASSEMBLY HUS-395990
...
2
BUSHING, CYLINDER HUS-297565
...
3
SEAL, OIL HUS-299819
...
5
HEAD, CYLINDER HUS-214040
...
7
GASKET, CYLINDER HEAD HUS-272157
...
8
BREATHER ASSEMBLY HUS-495774
...
9
GASKET, VALVE COVER HUS-27549
...
10
SCREW, STEMS HUS-94621
...
11
GROMMET, BREATHER TUBE HUS-66578
...
12
GASKET CRANKCASE STANDARD .015" HUS-270080
...
xx
GASKET, CRANKCASE .005" THICK HUS-270125
...
xx
GASKET, CRANKCASE .009" THICK HUS-270126
...
13
SCREW, CYLINDER HEAD 2-3/32" HUS-94221
...
14
SCREW, CYLINDER HEAD 2-15/32" HUS-94679
...
15
PLUG, PIPE, HEX SOCKET HUS-93448
...
xx
PLUG OIL DRAIN HUS-94387
...
16
CRANKSHAFT HUS-492088
...
xx
CRANKSHAFT GEAR PIN HUS-230978
...
18
COVER ASSEMBLY, CRANKCASE HUS-494044
...
19
BUSHING, CRANKCASE COVER HUS-495660
...
20
SEAL, OIL HUS-294606
...
21
PLUG, OIL FILLER HUS-66768
...
22
SCREW HUS-94682
...
xx
STUD, CRANKCASE COVER HUS-94666
...
23
FLYWHEEL, MAGNETO HUS-399673
...
24
KEY, FLYWHEEL HUS-222698
...
25
PISTON ASSEMBLY, STANDARD HUS-298904
...
xx
PISTON ASSEMBLY .010" OVERSIZE HUS-298905
...
xx
PISTON ASSEMBLY .020" OVERSIZE HUS-298906
...
xx
PISTON ASSEMBLY .030" OVERSIZE HUS-298907
...
26
RING SET, PISTON, STANDARD HUS-298982
...
xx
RING SET, PISTON, CHROME, STANDARD HUS-299742
...
xx
RING SET, PISTON .010" OVERSIZE HUS-298983
...
xx
RING SET, PISTON .020" OVERSIZE HUS-298984
...
xx
RING SET, PISTON .030" OVERSIZE HUS-298985
...
27
LOCK, PISTON PIN HUS-26026
...
28
PIN ASSY, PISTON, STD HUS-298909
...
xx
PIN ASSEMBLY, PISTON .005" OVERSIZE HUS-298908
...
29
ROD ASSEMBLY, CONNECTING HUS-299430
...
xx
ROD ASSEMBLY, CONNECTING HUS-390459
...
30
DIPPER, CONNECTING ROD HUS-221890
...
32
SCREW, CONNECTING ROD HUS-94745
...
33
VALVE, EXHAUST HUS-211119
...
34
VALVE, INTAKE HUS-261044
...
35
SPRING, INTAKE VALVE HUS-260552
...
36
SPRING, EXHAUST VALVE HUS-26478
...
37
GUARD, FLYWHEEL HUS-222443
...
40
RETAINER, VALVE SPRING HUS-93312
...
45
TAPPET, VALVE HUS-260642
...
46
GEAR, CAM HUS-212733
...
52
GASKET, CARBURETOR MOUNTING (2) HUS-272585
...
55
HOUSING, REWIND STARTER HUS-494846
...
56
PULLEY, REWIND STARTER HUS-493824
...
57
SPRING, REWIND STARTER HUS-262594
...
58
ROPE, REWIND STARTER HUS-280406
...
59
INSERT, HANDLE HUS-396892
...
60
HANDLE, REWIND STARTER HUS-393152
...
65
SCREW, HOUSING MOUNTING HUS-94686
...
69
WASHER HUS-280973
...
69A
WASHER HUS-224322
...
73
SCREEN, ROTATING HUS-224883
...
81
LOCK, SCREW HUS-222263
...
90
CARBURETOR ASSEMBLY HUS-495426
...
95
SCREW HUS-93499
...
96
THROTTLE, CARBURETOR HUS-223793
...
97
SHAFT AND LEVER THROTTLE HUS-490048
...
108
VALVE AND SHAFT GROUP, CHOKE HUS-491177
...
118
VALVE, NEEDLE HUS-231533
...
121
CARBURETOR OVERHAUL KIT HUS-495606
...
124
SCREW, ELBOW MOUNTING HUS-94616
...
127
PLUG, WELCH HUS-220352
...
127A
PLUG, WELCH HUS-223789
...
149
SPRING, NEEDLE VALVE HUS-26336
...
152
SPRING, THROTTLE ADJUSTMENT HUS-260575
...
153
SCREW AND COLLAR HUS-490589
...
154
SCREW, MACHINE, ROUND HEAD HUS-93527
...
163
GASKET, AIR CLEANER MOUNTING HUS-271935
...
180
TANK ASSEMBLY, FUEL HUS-495391
...
181
CAP, FUEL TANK HUS-494559
...
190
SCREW, FUEL TANK HUS-94712
...
190A
SCREW, FUEL TANK MOUNTING1-3/4" HUS-94677
...
191
GASKET, FUEL TANK TO CARBURETOR HUS-272489
...
200
GUIDE, AIR HUS-223886
...
201
LINK, GOVERNOR HUS-262280
...
202
LINK, THROTTLE HUS-262270
...
202A
LINK, CONTROL HUS-262470
...
203
BELL CRANK HUS-280720
...
204
BUSHING, GOVERNOR LEVER, FLAT HUS-222962
...
205
SCREW, SHOULDER HUS-231520
...
208
ROD, SPEED CONTROL HUS-262279
...
209
SPRING, GOVERNOR HUS-262282
...
216
LINK, CHOKE HUS-262359
...
219
GEAR, GOVERNOR HUS-494845
...
220
WASHER THRUST HUS-221551
...
222
PANEL, CONTROL HUS-490649
...
223
LEVER, GOVERNOR CONTROL HUS-223455
...
224
RIVET, GOVERNOR CONTROL LEVER MOUNTING HUS-93491
...
227
LEVER ASSEMBLY, GOVERNOR HUS-490374
...
230
WASHER, GOVERNOR LEVER HUS-222450
...
256
CRANK, BELL HUS-223813
...
300
MUFFLER, EXHAUST HUS-393615
...
304
HOUSING, BLOWER HUS-495759
...
305
SCREW, SEMS, BLOWER, HOUSING MOUNTING HUS-94619
...
306
SHIELD, CYLINDER HUS-224820
...
307
SCREW, CYLINDER SHIELD HUS-94680
...
308
COVER, CYLINDER HEAD HUS-224738
...
332
NUT, FLYWHEEL HUS-92284
...
333
ARMATURE GROUP HUS-397358
...
334
SCREW, ARMATURE MOUNTING HUS-93414
...
337
PLUG, SPARK HUS-802592
...
346
SUB= 69485 HUS-93705
...
356
WIRE, GROUND HUS-398808
...
358
GASKET SET HUS-495603
...
363
PULLEY, FLYWHEEL HUS-19069
...
373
NUT, HEX HUS-92987
...
383
WRENCH SPARK PLUG HUS-89838
...
392
SPRING, FUEL PUMP DIAPHRAGM HUS-262328
...
394
DIAPHRAGM HUS-272650
...
414
WASHER HUS-220982
...
432
CAP, SPRING HUS-221377
...
433
PIN, DIAPHRAGM COVER HUS-93265
...
434
COVER, DIAPHRAGM HUS-213963
...
435
SCREW, DIAPHRAGM HUS-93141
...
455
CUP, STARTER HUS-224250
...
456
RETAINER, REWIND STARTER HUS-224321
...
459
PAWL, STARTER HUS-492833
...
461
PIN, STARTER HUS-262626
...
467
KNOB, CONTROL HUS-280715
...
515
SPRING, TORSION HUS-262625
...
526
SCREW,SEMS,TANK BRACKET MOUNT HUS-94659
...
527
CLAMP BREATHER TUBE HUS-223786
...
528
TUBE, BREATHER HUS-231550
...
529
GROMMET, BREATHER TUBE HUS-67838
...
542
SCREW HUS-93572
...
552
BUSHING, GOVERNOR CRANK HUS-231079
...
562
BOLT, GOVERNOR LEVER HUS-92613
...
592
NUT, HEX HUS-231082
...
608
STARTER ASSEMBLY, REWIND HUS-495766
...
611
FUEL PIPE AND CLIP ASSEMBLY HUS-391813
...
613
SCREW, HEX HEAD HUS-93935
...
614
COTTER, HAIR PIN HUS-93306
...
616
CRANK, GOVERNOR HUS-231077
...
621
SWITCH, STOP HUS-396847
...
634
WASHER, THROTTLE SHAFT, FOAM HUS-271853
...
635
ELBOW, SPARK PLUG HUS-66538
...
676
DEFLECTOR, EXHAUST, SIDE OUTLET HUS-393757
...
679
WASHER, FOAM HUS-270382
...
680
WASHER, BRASS HUS-221839
...
74
GEAR, TIMING HUS-261696
...
851
TERMINAL, IGNITION CABLE HUS-221798
...
869
SEAT, INTAKE VALVE, STANDARD HUS-211787
...
870
SEAT, INTAKE VALVE, STANDARD HUS-211172
...
871
GUIDE, EXHAUST VALVE HUS-262001
...
xx
GUIDE, INTAKE VALVE HUS-63709
...
916
RACK, GEAR CONTROL HUS-280321
...
966
BASE, AIR CLEANER HUS-492797
...
967
SUB= 3364 HUS-491588
...
968
COVER, AIR CLEANER HUS-495872
...
969
SCREW, COVER MOUNTING HUS-490073
...
971
SCREW, AIR CLEANER HUS-94018
...
987
SEAL, THROTTLE SHAFT HUS-398970
...
995
LEVER, BRACKET ASSEMBLY HUS-491577
...
1012
RETAINER, LINK HUS-490507
...
1016
COVER, REWIND STARTER HUS-224278
