Husqvarna AYP1184A69 (1996) Tractor

Model: AYP1184A69 (1996)

Back To Assemblies

Save Part Not Listed?
product name

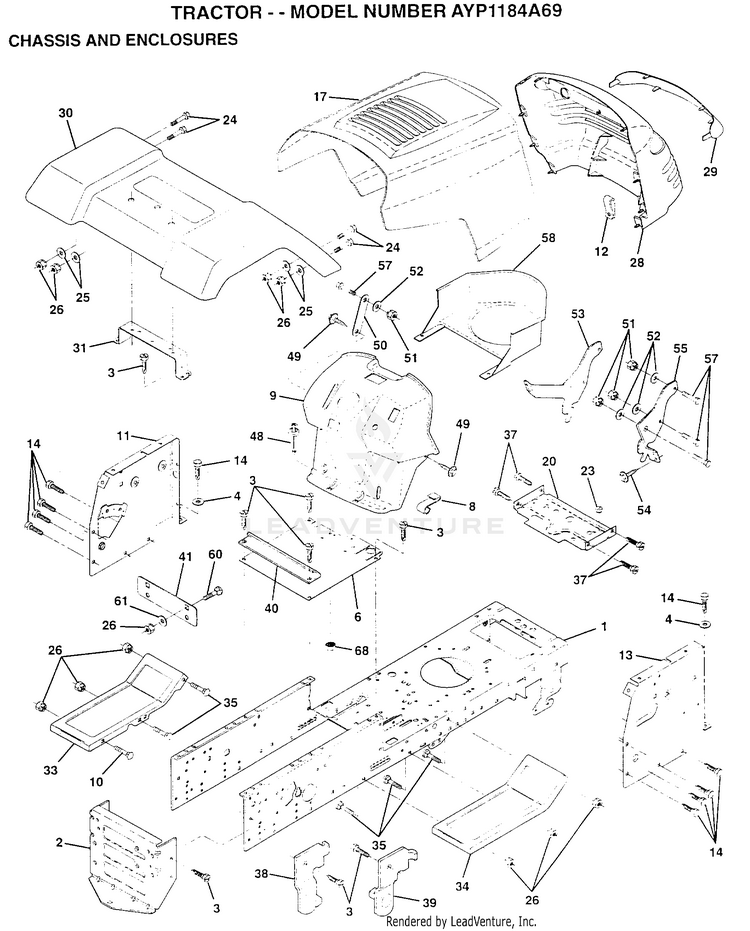

CHASSIS AND ENCLOSURES

...
...
1
CHASSIS.WLD.11GA HUS-145501
...
2
SUB= 145009 HUS-140356
...
3
SCREW HUS-17490612
...
4
WASHER HUS-19131216
...
6
SUB= 155924X015 HUS-145208X016
...
8
"CLIP,INSULATOR" HUS-126471X
...
9
SUB= 532142465 HUS-140072
...
10
SUB= 72110608 HUS-72140608
...
11
PANEL.DASH.LH. HUS-146965
...
12
CLIP.TINNERMAN HUS-145660
...
13
PANEL.DASH.RH HUS-146959
...
14
SCREW LT HUS-17490608
...
17
SUB= 159639X505 HUS-139394X505
...
20
SUB= 140281X431 HUS-140281
...
23
SUB= 532124028 HUS-124028X
...
24
BOLT HUS-74780616
...
25
WASHER HUS-19131312
...
26
NUT HUS-73800600
...
28
GRILL.BLK HUS-140434
...
29
LENS GRILLE HUS-140273
...
30
FENDER HUS-109872X505
...
31
BRACKET SUPT FEND HUS-139976
...
33
FOOTREST LH HUS-105476X505
...
34
FOOTREST RH HUS-105475X505
...
35
BOLT HUS-72110606
...
37
SCREW LT HUS-17490508
...
38
BRACKET ASM LH HUS-139886
...
37
BRACKET ASM RH HUS-139887
...
40
SPACER FENDER LT HUS-139977
...
41
PLATE EXTEN FEND HUS-139978
...
48
RIVET.PUSH.PLATE HUS-138096
...
49
SCREW HEX CRT HUS-17490412
...
50
BRACE SUPT DASH HUS-142779
...
51
NUT HUS-73800400
...
52
WASHER HUS-19091416
...
53
BRACKET.GRILLE.LH HUS-144697
...
54
SUB= 91817030814 HUS-17030814
...
55
BRACKET.GRILLE.RH HUS-144696
...
57
SUB= 74780414 HUS-74780412
...
58
DUCT.AIR.B&S.18HP HUS-140547
...
60
BOLT HUS-72140606
...
61
WASHER HUS-19171416
...
68
NUT HUS-73510400
...
xx
PLUG BUTTON T HUS-5479J
...
xx
PLUG DOME HUS-134014
