Husqvarna AYP1184A69 (1996) Tractor

Model: AYP1184A69 (1996)

Back To Assemblies

Save Part Not Listed?
product name

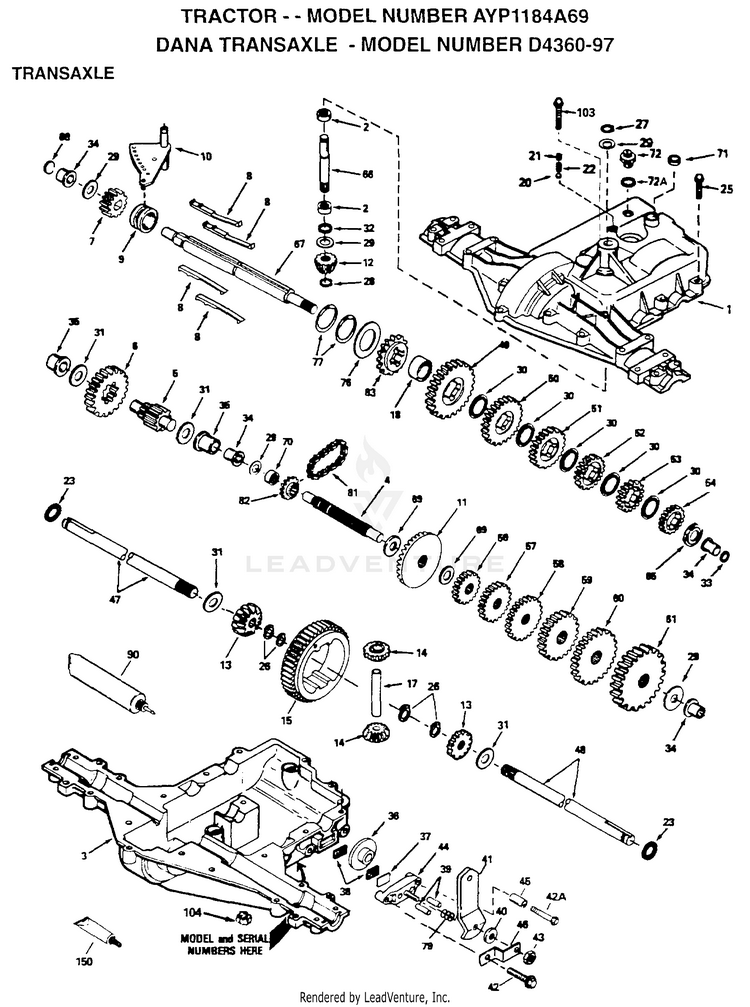

TRANSAXLE

...
...
1
HARNESS.IGNITION HUS-132671
...
2
SUB= 74760412 HUS-2274J
...
3
SUB= 68003 HUS-134400
...
4
"SPRING, DETENT LT" HUS-105904X
...
5
"SCREW, SET LT" HUS-105905X
...
6
SHIFTER.ASM.KIT. HUS-134788
...
7
SHIFTER BOOT HUS-134399
...
8
PUCK T HUS-120951X
...
9
SUB= 105911X HUS-148266
...
10
RETAINING RING LT HUS-2225J
...
11
ASM KIT SHIM 4689 HUS-134793
...
12
PLUG.PLASTIC HUS-143679
...
13
WASHER T HUS-120415X
...
14
KEY WOODRUFF-DANA HUS-142674
...
15
SUB= 167148 HUS-106846X
...
16
SUB= 95-8060-6F HUS-106095X
...
17
"RING,RETAINING LT" HUS-105909X
...
18
"CHAIN,24 PTCH LT" HUS-105910X
...
19
BEARING.FLNG.5510 HUS-105911X
...
20
GEAR SPUR 14 TTH HUS-142675
...
21
COLLAR CLUTCH HUS-138246
...
22
KIT.ASM.CLTCH KEY HUS-138238
...
23
BEARING.FLNG.5511 HUS-148268
...
24
SHAFT INTER 5404 HUS-143673
...
25
WOODRUFF KEY HUS-2244J
...
26
"RING,RETAINING LT" HUS-105916X
...
27
SPROCKET 18T T HUS-120470X
...
28
SPACER YT HUS-110070X
...
29
GEAR SPUR 37 TTH HUS-142677
...
30
GEAR SPUR 35 TTH HUS-142681
...
31
GEAR SPUR 30T HUS-124644X
...
32
GEAR 25T LT HUS-108980X
...
33
GEAR SPUR 22 TT HUS-120406X
...
34
SPUR GEAR 19T HUS-134796
...
35
"WASHER, PLAIN LT" HUS-105925X
...
36
WASHER 025 HUS-2232J
...
37
SPACER HUS-108978X
...
38
ASSM GEAR COMB HUS-110079X
...
39
SHAFT IDLER HUS-124639X
...
40
SPACER T HUS-120472X
...
41
SPROCKET 9T LT HUS-105928X
...
42
SUB= 167148 HUS-106605X
...
43
ASM KIT SHIM HUS-134394
...
44
SHAFT T HUS-120473X
...
45
"SCREW, TAPPING LT" HUS-106596X
...
46
GEAR SPUR 12 TTH HUS-142678
...
47
SUB= 124641X HUS-120407X
...
48
"GEAR, SPUR 25T LT" HUS-106589X
...
49
GEAR 28T T HUS-120408X
...
50
"GEAR, SPUR 31T LT" HUS-105937X
...
51
WASHER 060 HUS-2226J
...
52
NEOPRENE WASHER HUS-134401
...
53
WASHER 031 HUS-2264J
...
54
SUB= 154658 HUS-120474X
...
55
GEAR 15T T HUS-110081X
...
56
"RING,RETAINING LT" HUS-105941X
...
57
SUB= 120478X HUS-110071X
...
58
SHAFT T HUS-120952X
...
59
"GEAR,MITER 15T YT" HUS-106592X
...
60
SUB= 154659 HUS-120475X
...
61
HOUSING LOWER TNS HUS-142680
...
62
PUCK T HUS-120961X
...
63
BRAKE DISC. T HUS-7294J
...
64
SPACER LT HUS-108989X
...
65
SUB= 918120953X HUS-120953X
...
66
PIN T HUS-120954X
...
67
TAP SCREW HUS-134799
...
68
SUB= 108992X HUS-138244
...
69
WASHER LT HUS-108996X
...
70
NLA HUS-120956X
...
71
NUT.LOCK.5/16-24 HUS-73810500
...
72
SEAL.OIL.DAN.5508 HUS-148269
...
73
SUB= 126976X HUS-120416X
