Husqvarna AY1236A (1999 & Before) Tractor

Model: AY1236A (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

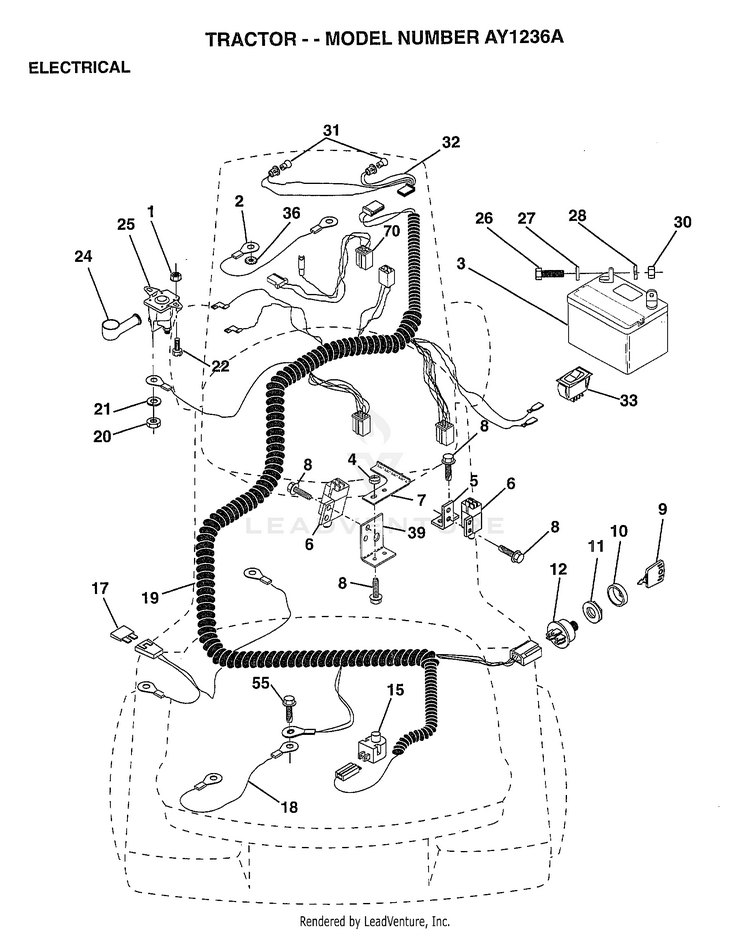

ELECTRICAL

...
...
1
NUT HXKEP 1/4X20 HUS-73640400
...
2
CABLE ASM. HUS-108423X
...
3
SUB= 123888X HUS-146138
...
4
LOCKNUT HUS-69180
...
5
BRACKET LT HUS-108236X
...
6
SWITCH INTERLOCKT HUS-109553X
...
7
KEEPER.ACTUAT.LR. HUS-146374
...
8
SCREW HUS-17021008
...
9
KEY MLD GEN DELTA HUS-140401
...
10
COVER KEY SWITCH HUS-141226
...
11
SUB= 145774 HUS-140400
...
12
SUB= 163088 HUS-144921
...
15
SWITCH SEAT HUS-121305X
...
17
FUSE HYT HUS-108824X
...
18
CABLE ASSY HUS-128353
...
19
HARNESS.IGN.LR. HUS-146064
...
20
NUT HUS-73350400
...
21
SUB= 10040400 HUS-10090400
...
22
BOLT HXHD FIN HUS-71110408
...
24
SUB= 154336 HUS-131563
...
25
SUB= 146154 HUS-145673
...
26
BOLT LT HUS-74760412
...
27
WASHER HUS-19091016
...
28
LOCKWASHER HUS-10040400
...
30
SUB= 50675 HUS-73220400
...
31
HEADLAMP BULB HUS-4152J
...
32
"HARNESS,LIGHT SOC" HUS-136850
...
33
SWITCH LT HUS-110712X
...
36
LOCKWASHER HUS-11150400
...
39
BRACKET SWT CLUTC HUS-141735
...
55
SCREW LT HUS-17490508
...
70
HARNESS ENG DUAL HUS-140413
