Husqvarna AUTOMOWER G2 (2003-2006) Robotic Lawn Mower

Model: AUTOMOWER G2 (2003-2006)

Back To Assemblies

Save Part Not Listed?
product name

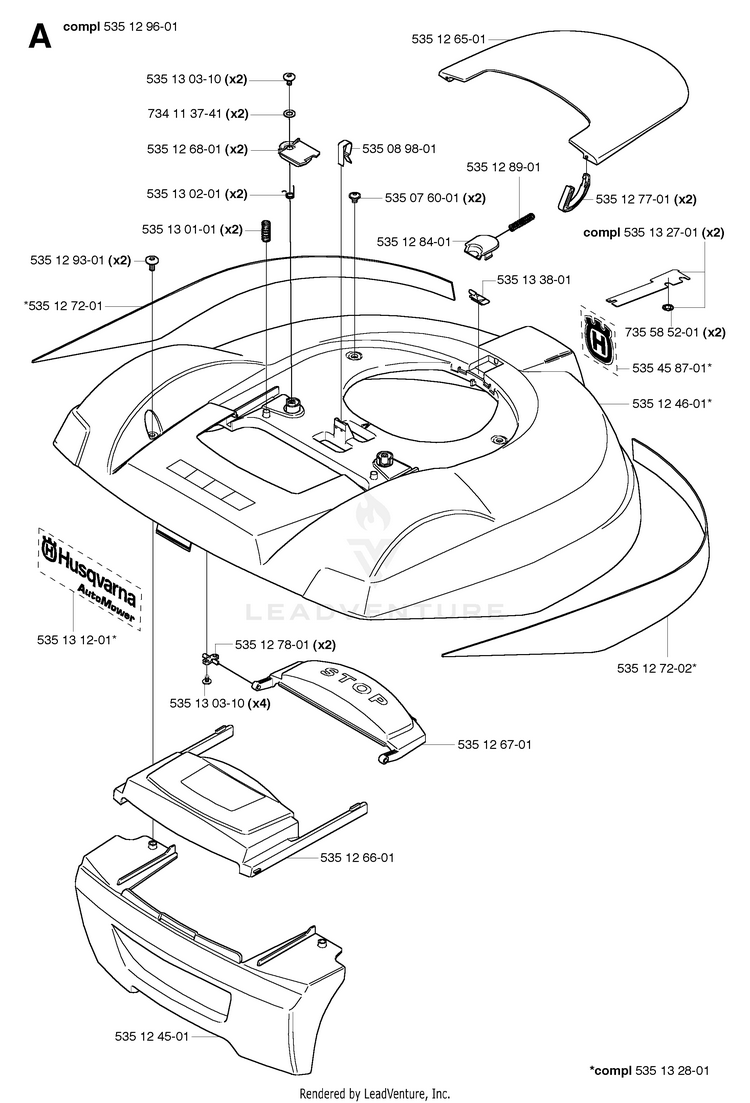

COVER 4

...
...
535 12 72-02
LIST HUS-535127202
...
535 13 12-01
DECAL HUS-535131201
...
535 13 01-01
SPRING HUS-535130101
...
535 12 45-01
CHASSIS HUS-535124501
...
535 12 84-01
RETAINER HUS-535128401
...
535 12 89-01
HUS-535128901
...
535 12 78-01
SHAFT HUS-535127801
...
535 12 67-01
KNOB HUS-535126701
...
735 58 52-01
HUS-735585201
...
535 13 02-01
SPRING HUS-535130201
...
535 12 72-01
LIST HUS-535127201
...
535 12 96-01
CHASSIS HUS-535129601
...
535 13 38-01
HUS-535133801
...
535 08 98-01
CLIP RETAINER HUS-535089801
...
535 12 68-01
LOOP HUS-535126801
...
535 12 93-01
SCREW HUS-535129301
...
535 12 46-01
CHASSIS HUS-535124601
...
535 12 65-01
DOOR HUS-535126501
...
535 13 27-01
ASSY HUS-535132701
...
535 07 60-01
SCREW HUS-535076001
...
535 13 03-10
SCREW HUS-535130310
...
535 12 77-01
HINGE HUS-535127701
...
535 13 03-10
SCREW HUS-535130310
...
734 11 37-41
WASHER HUS-734113741
...
535 45 87-01
DECAL HUS-535458701
...
535 12 66-01
COVER HUS-535126602
