Husqvarna AUTOMOWER G2 (2003-2006) Robotic Lawn Mower

Model: AUTOMOWER G2 (2003-2006)

Back To Assemblies

Save Part Not Listed?
product name

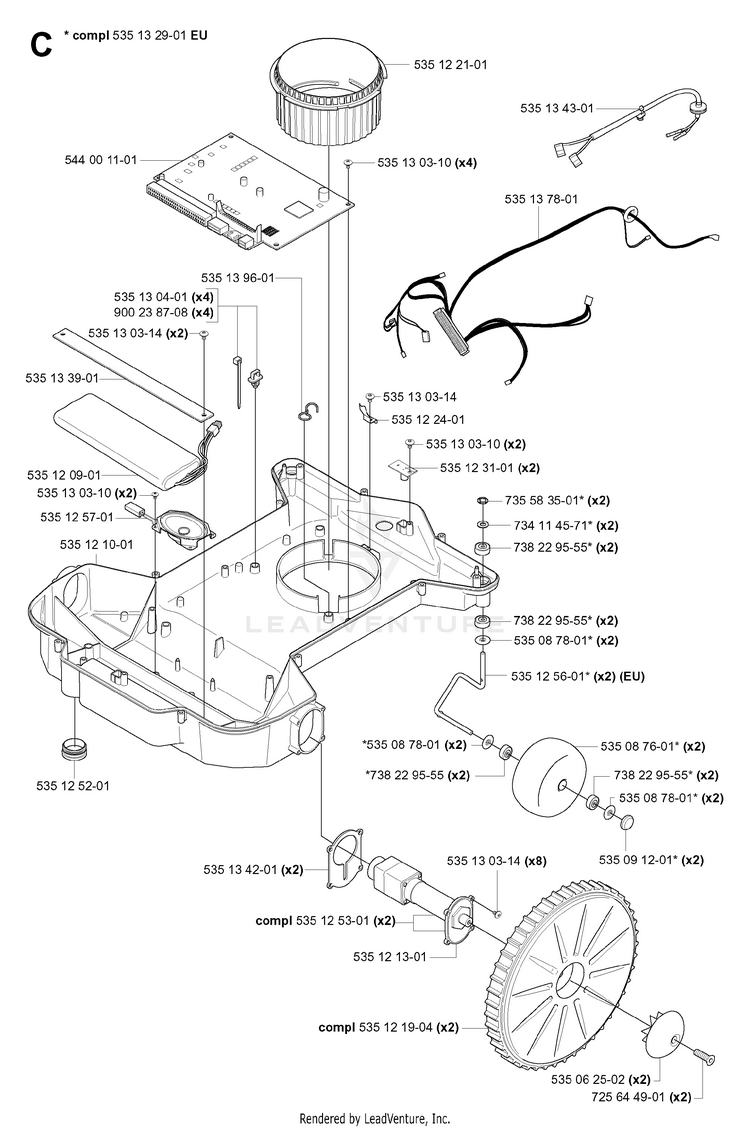

CHASSIS LOWER 3

...
...
535 13 04-01
BRACKET FOR BAND HUS-535130401
...
738 22 95-55
BEARING HUS-738229555
...
535 12 52-01
PLUG HUS-535125201
...
535 13 03-14
SCREW HUS-535130314
...
535 12 10-01
CHASSIS HUS-535121001
...
535 12 31-01
Circuits HUS-592852201
...
535 13 03-10
SCREW HUS-535130310
...
535 13 78-01
CABLE ASSY HUS-535137801
...
725 64 49-01
BOLT REAR WHEEL HUS-725644901
...
535 13 39-01
HOLDER HUS-535133901
...
535 13 03-10
SCREW HUS-535130310
...
535 08 78-01
WASHER, SEALING HUS-535087801
...
544 00 11-01
%HEAD CARD HUS-544001101
...
535 12 19-04
WHEEL HUS-535121904
...
535 12 24-01
SPRING HUS-535122401
...
734 11 45-71
Washer 0 5.3 HUS-734114571
...
535 12 09-01
BATTERY HUS-535120902
...
535 13 43-01
NEEDS DESCRIPTION HUS-535134301
...
535 12 56-01
BRACKET EU HUS-535125601
...
535 13 96-01
HOLDER HUS-535139601
...
535 12 21-01
NUT HUS-535122101
...
535 12 13-01
HUS-535121301
...
900 23 87-08
BAND HUS-900238708
...
535 13 42-01
GASKET HUS-535134201
...
535 06 25-02
WASHER HUS-535062502
...
735 58 35-01
CLIP HUS-735583501
...
535 12 53-01
MOTOR HUS-535125301
...
535 13 03-14
SCREW HUS-535130314
...
535 08 76-01
WHEEL, FRONT HUS-575231701
...
535 13 29-01
WHEEL EU HUS-535132901
...
535 12 57-01
LOUD SPEAKER HUS-535125701
...
535 09 12-01
RETAINER, AXLE CAP HUS-535091201
...
535 13 03-14
SCREW HUS-535130314
