Husqvarna AUTOMOWER 550H Robotic Lawn Mower

Model: AUTOMOWER 550H

Back To Assemblies

Save Part Not Listed?
product name

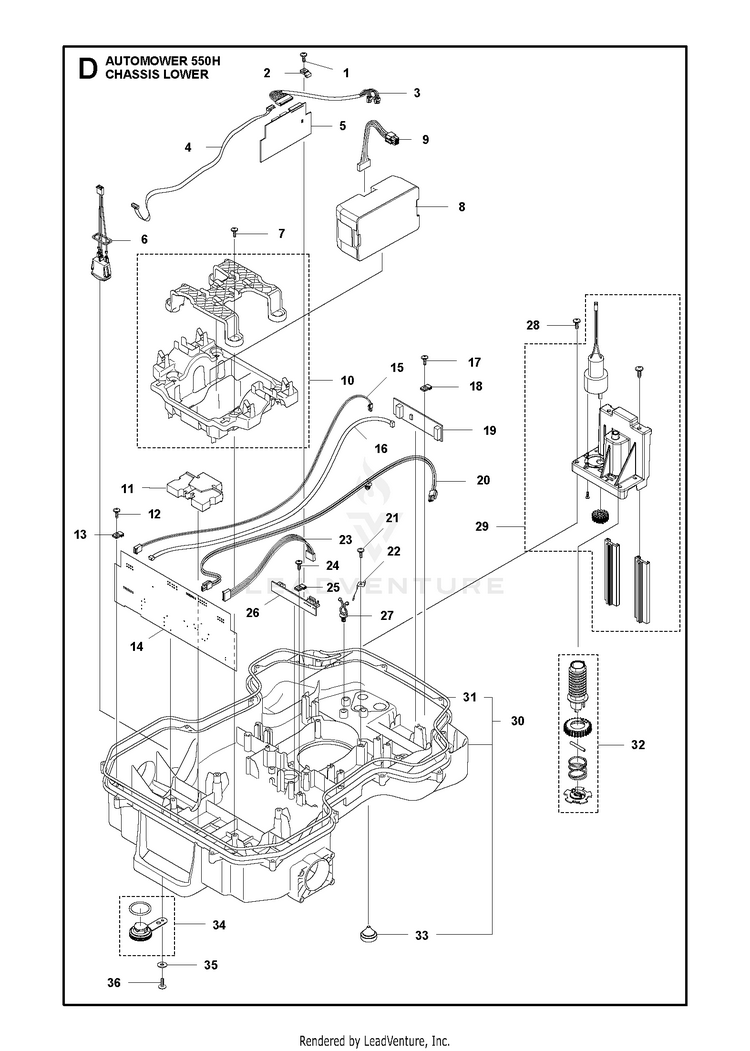

CHASSIS LOWER

...
...
36
SCREW ITXPANT HUS-574450101
...
4
LOOM AUX AUX Cable HUS-579708601
...
8
BATTERY HUS-593247401
...
20
WIRING ASSY CHARGING LINK AWG1 Charging Cable HUS-534156602
...
16
LOOM LOOP SENSOR Sensor Cable HUS-579708201
...
23
LOOM HEIGHT ADJUSTMENT Height Adjustment Wiring HUS-579708001
...
22
SPRING GUIDE HEIGHT ADJUSTMENT HUS-581556101
...
11
WEIGHT 470G Weight 470g HUS-589366201
...
28
SCREW 14MM HUS-575543314
...
35
WASHER HUS-734113741
...
34
PLUG KIT HUS-581621202
...
12
SCREW 14MM HUS-575543314
...
21
SCREW 14MM HUS-575543314
...
27
HOLDER TWIST LOCK Holder Twist Lock HUS-580682901
...
32
SCREW KIT HUS-581621601
...
7
SCREW ITXPANT HUS-574450101
...
15
WIRING ASSY LED LIGHT EXTENSIO LED-Extension Wiring HUS-588818402
...
3
Wires US-Extension Wiring HUS-580614402
...
9
WIRING ASSY BATTERY CABLE BASI HUS-535018401
...
30
CHASSIS KIT SPARE PART LOWER - HUS-596503102
...
25
CLAMP PCB HUS-579529401
...
14
PRINTED CIRCUIT ASSY PCBA MAIN Main Board HUS-592852601
...
5
PRINTED CIRCUIT ASSY ULTRASONI PCBA US HUS-578285703
...
18
CLAMP PCB HUS-579529401
...
24
SCREW 14MM HUS-575543314
...
13
CLAMP PCB HUS-579529401
...
31
SEALING STRIP 1 pcs, diam 5 mm HUS-574874705
...
29
MOTOR ASSY HEIGHT MOTOR HUS-501068301
...
6
LOOM ON/ OFF Switch On-Off HUS-579708701
...
26
PRINTED CIRCUIT ASSY PCBA CUTT PCBA Height Adjustment HUS-579728502
...
2
CLAMP PCB HUS-579529401
...
1
SCREW 14MM HUS-575543314
...
19
PRINTED CIRCUIT ASSY LOOP SENS PCBA Loop Sensor HUS-592852701
...
17
SCREW 14MM HUS-575543314
...
10
HOLDER KIT BATTERY Holder Kit HUS-596494701
...
33
GROMMET M16 HUS-584897501
Schematic Image Zoomed
