Husqvarna AUTOMOWER 550H EPOS Robotic Lawn Mower

Model: AUTOMOWER 550H EPOS

Back To Assemblies

Save Part Not Listed?
product name

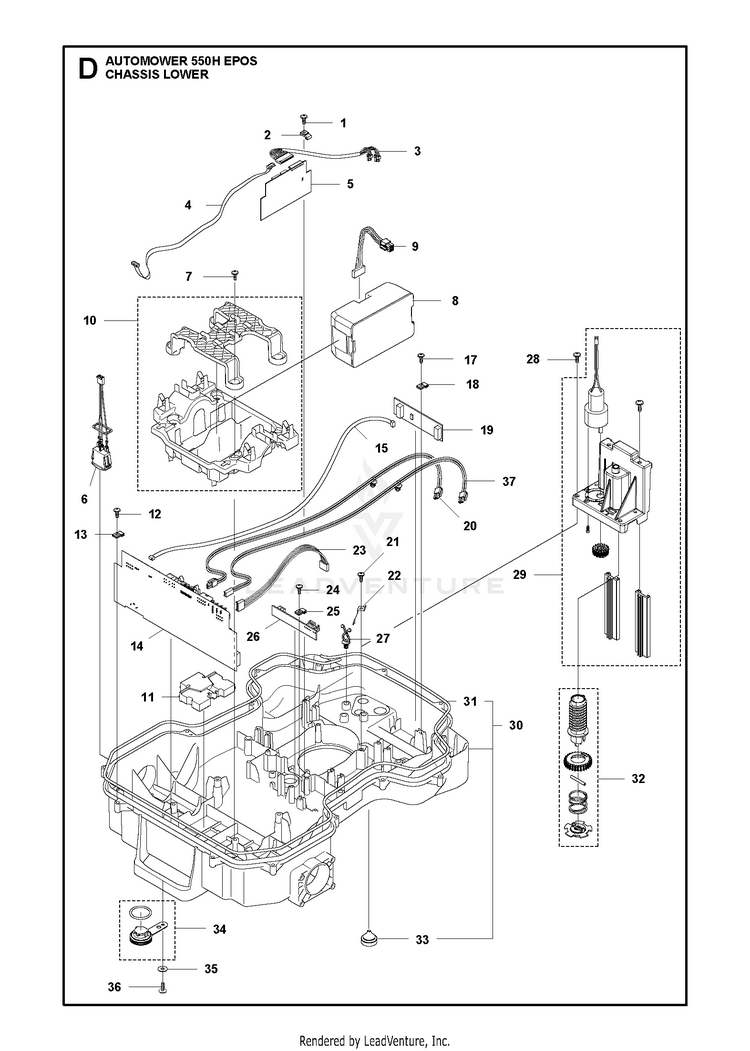

CHASSIS LOWER

...
...
2
CLAMP PCB Clamp HUS-579529401
...
1
SCREW 14MM Screw HUS-575543314
...
25
CLAMP PCB Clamp HUS-579529401
...
3
Wires US-Extension Wiring HUS-580614402
...
6
LOOM ON/ OFF Switch On-Off HUS-579708701
...
4
LOOM AUX HUS-579708601
...
34
PLUG KIT Plug KIT HUS-581621202
...
31
SEALING STRIP Sealing Strip (1 pcs, Ø5 mm) HUS-574874705
...
24
SCREW 14MM Screw HUS-575543314
...
21
SCREW 14MM Screw HUS-575543314
...
37
WIRING ASSY LED LIGHT EXTENSIO LED-Extension Wiring HUS-588818402
...
20
WIRING ASSY CHARGING LINK AWG1 Charging table HUS-534156602
...
12
SCREW 14MM Screw HUS-575543314
...
33
GROMMET M16 Grommet HUS-584897501
...
27
HOLDER TWIST LOCK Holder Twist Lock HUS-580682901
...
15
LOOM LOOP SENSOR Sensor Cable HUS-579708201
...
17
SCREW 14MM Screw HUS-575543314
...
35
WASHER Washer HUS-734113741
...
30
CHASSIS KIT SPARE PART LOWER - Chassis Kit HUS-596503102
...
8
BATTERY Battery HUS-593247401
...
18
CLAMP PCB Clamp HUS-579529401
...
32
SCREW KIT Gear KIT HUS-581621601
...
7
SCREW ITXPANT Screw HUS-574450101
...
36
SCREW ITXPANT Screw HUS-574450101
...
22
SPRING GUIDE HEIGHT ADJUSTMENT Spring HUS-581556101
...
13
CLAMP PCB Clamp HUS-579529401
...
9
WIRING ASSY BATTERY CABLE BASI Battery HUS-535018401
...
23
LOOM HEIGHT ADJUSTMENT Height Adjustment Wiring HUS-579708001
...
11
WEIGHT 470G Weight 470g HUS-589366201
...
29
MOTOR ASSY HEIGHT MOTOR Motor KIT HUS-501068301
...
10
HOLDER KIT BATTERY Holder Kit HUS-596494701
...
14
PRINTED CIRCUIT ASSY PCBA MAIN Main board HUS-593830601
...
26
PRINTED CIRCUIT ASSY PCBA CUTT Printed Circuit Height Adjustment HUS-579728502
...
28
SCREW 14MM Screw HUS-575543314
...
19
PRINTED CIRCUIT ASSY LOOP SENS Printed Circuit Loop Sensor HUS-592852701
...
5
PRINTED CIRCUIT ASSY ULTRASONI Printed Circuit Ultrasonic HUS-578285703
