Husqvarna AUTOMOWER 550H EPOS Robotic Lawn Mower

Model: AUTOMOWER 550H EPOS

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

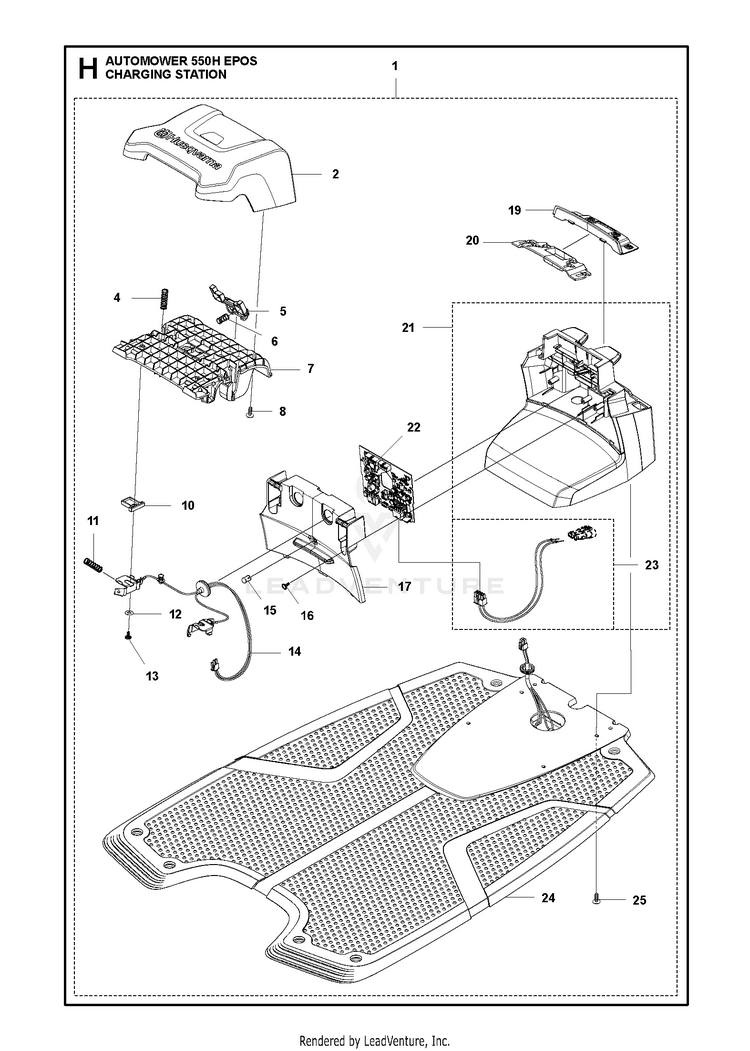

CHARGING STATION

...
...
15
LENS DIODE Lens HUS-590217201
...
2
CAP CHARGING STATION Cap HUS-579448203
...
4
SPRING SPRING CAP Spring HUS-580511401
...
12
WASHER Washer HUS-734113741
...
8
SCREW 14MM Screw HUS-575543314
...
16
SCREW 14MM Screw HUS-575543314
...
6
SPRING STOP BUTTON Spring HUS-574487001
...
19
PANEL CHARGING STATION NO TERM Panel HUS-579459805
...
17
LID CHARGING STATION 320, ONE Lid HUS-579459704
...
10
NEEDS DESCRIPTION Distance HUS-579460502
...
7
FRAME CHARGING STATION Frame HUS-579458004
...
11
SPRING SPRING CAP Spring HUS-580511401
...
14
WIRING ASSY Loom Charging Contact HUS-531242201
...
22
PRINTED CIRCUIT ASY, P2 CHARGE Printed Circuit PCBA Charging station HUS-599947510
...
23
CABLE KIT GENERATOR BOARD SPAR Cable KIT HUS-588478902
...
24
BASE ASSY CHARGING STATION Charging Plate HUS-590094001
...
21
HOUSING KIT 550H EPOS Housing KIT High-Cut HUS-531032201
...
13
SCREW 14MM Screw HUS-575543314
...
20
HOLDER CHARGING STATION Holder HUS-579459901
...
1
CHARGING STATION 550Z HI-CUT N High-Cut HUS-598914202
...
5
BUTTON CHARGING STATION, RELEA Button - Release HUS-579462402
...
25
SCREW 14MM Screw HUS-575543314
