Husqvarna AUTOMOWER 550H EPOS Robotic Lawn Mower

Model: AUTOMOWER 550H EPOS

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

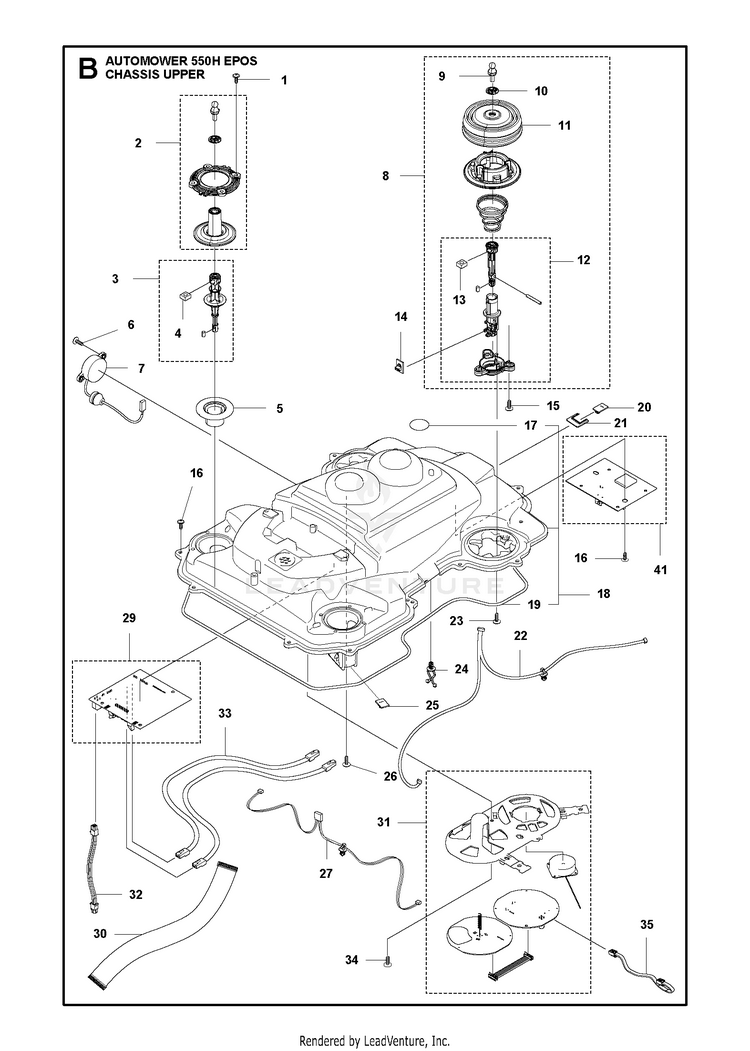

CHASSIS UPPER

...
...
29
PRINTED CIRCUIT ASSY PCBA APPL PCB Application Board HUS-597977401
...
18
CHASSIS KIT UPPER 550 EPOS / 5 Chassis KIT HUS-529564201
...
25
PRINTED CIRCUIT ASSY COLLISION PCBA Collision Sensor HUS-592852401
...
21
CLIP COLLISION BOARD Clip HUS-587834901
...
5
MOVEMENT LIMITER Deflection Limiter HUS-535143201
...
22
WIRING ASSY LIFT SENSOR L1=670 Wiring Assy Lift Sensor HUS-579705902
...
8
JOYSTICK KIT Joystick KIT Front HUS-581620903
...
20
PRINTED CIRCUIT ASSY COLLISION PCBA Collision Sensor HUS-592852401
...
12
JOYSTICK KIT Joystick KIT HUS-587448802
...
23
SCREW ITXPANT Screw HUS-574450101
...
7
BUZZER ASSY Buzzer HUS-579706302
...
1
SCREW ITXPANT Screw HUS-574450101
...
14
PRINTED CIRCUIT ASSY PCBA LIFT PCBA Lift sensor HUS-592852301
...
26
SCREW ITXPANT Screw HUS-574450101
...
33
WIRING ASSY MODULAR JACK 6/6 R Modular Cable HUS-589350805
...
24
HOLDER TWIST LOCK Holder Twist Lock HUS-580682901
...
13
NUT Square Nut HUS-503226601
...
34
SCREW 14MM Screw HUS-575543314
...
32
WIRING ASSY HMI CABLE 4P L=33 HMI Cable 4P HUS-591203102
...
19
SEALING STRIP Sealing Strip (1 pcs, Ø5 mm) HUS-574874705
...
6
SCREW 14MM Screw HUS-575543314
...
17
KIT AIR FILTER KIT 305 - 10 PC Air Filter 10 pcs HUS-577753701
...
9
STUD SNAPLOC Stud HUS-580526701
...
4
NUT Square Nut HUS-503226601
...
41
NEEDS DESCRIPTION AM Connect, KIT US/CA HUS-586662311
...
2
JOYSTICK KIT REAR Joystick KIT Rear HUS-501061301
...
11
BELLOWS LIFT-COLLISION Bellows HUS-579474601
...
35
WIRING ASSY Modular Jack HUS-536253903
...
31
HOLDER ASSY ANTENNA MODULE 915 Holder Assy Antenna Module 915Mhz HUS-599308602
...
3
JOYSTICK KIT REAR Joystick Column KIT HUS-501122602
...
16
SCREW ITXPANT Screw HUS-574450101
...
15
SCREW 14MM Screw HUS-575543314
...
10
WASHER JOYSTICK Washer HUS-579525701
...
30
LOOM MMI Wiring HUS-579706201
...
27
WIRE ASSEMBLY COLLISION SENSOR Wiring ASSY Collision Sensor HUS-581660902
