Husqvarna AUTOMOWER 550H EPOS Robotic Lawn Mower

Model: AUTOMOWER 550H EPOS

Back To Assemblies

Save Part Not Listed?
product name

WHEELS & TIRES

...
...
15
LOCKWASHER PUSH-ON TYPE P 8 BV Lock Washer HUS-576019302
...
11
WHEEL RUBBER TYRE Tire HUS-574449801
...
13
NEEDS DESCRIPTION Tube 50 pcs HUS-597795601
...
1
LOCKWASHER PUSH-ON TYPE P 8 BV Lock Washer HUS-576019302
...
13
BALL BEARING SINGLE ROW S688 Ball Bearing HUS-580605101
...
8
SEALING 12X18X3 Sealing HUS-580487101
...
12
O-RING 2,62X15,54 O-Ring HUS-580445101
...
26
WASHER WASHER REAR WHEEL 16X40 Washer HUS-586210601
...
28
HUB CAP REAR WHEEL NO CENTER P Hub Cap HUS-579505502
...
5
WASHER FRONT WHEEL CENTER HOLE Washer HUS-535087803
...
3
NEEDS DESCRIPTION Tube 50 pcs HUS-597795601
...
6
WASHER DIN 988 13X8X0.5 Washer HUS-580764601
...
7
SHIELD KIT Shield KIT HUS-581621501
...
27
HEXAGON THIN NUT Thin Nut HUS-731432401
...
20
O-RING LIGHT GREY O-Ring HUS-580443902
...
4
NEEDS DESCRIPTION Tube 50 pcs HUS-597795601
...
4
BALL BEARING SINGLE ROW S688 Ball Bearing HUS-580605101
...
18
SPINDLE Spindle HUS-580336102
...
14
WASHER DIN 988 13X8X0.5 Washer HUS-580764601
...
2
WASHER DIN 988 13X8X0.5 Washer HUS-580764601
...
3
BALL BEARING SINGLE ROW S688 Ball Bearing HUS-580605101
...
9
BALL BEARING SINGLE ROW S688 Ball Bearing HUS-580605101
...
9
NEEDS DESCRIPTION Tube 50 pcs HUS-597795601
...
16
WHEEL FRONT WHEEL OUTSIDE Wheel Outside HUS-579457201
...
17
SCREW 14MM Screw HUS-575543314
...
25
WHEEL ASSY D249 HVA LIGHT GREY Rear Wheel HUS-582280201
...
10
WHEEL FRONT WHEEL INSIDE Wheel Inside HUS-579457101
...
21
MOTOR KIT DRIVE WHEEL P2 Wheel Motor ASSY HUS-581621307
...
22
SCREW ITXPANT Screw HUS-574450101
...
19
Wheels Front Wheel KIT HUS-581621402

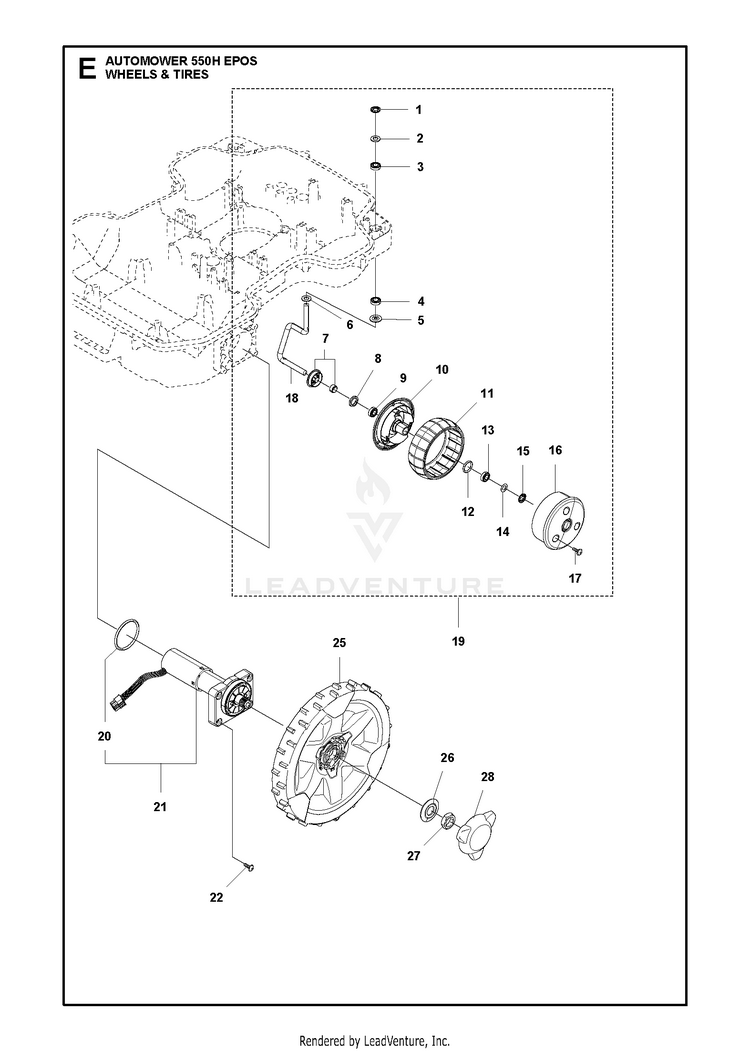

Schematic Image Zoomed
