Husqvarna AUTOMOWER 550H EPOS Robotic Lawn Mower

Model: AUTOMOWER 550H EPOS

Back To Assemblies

Save Part Not Listed?
product name

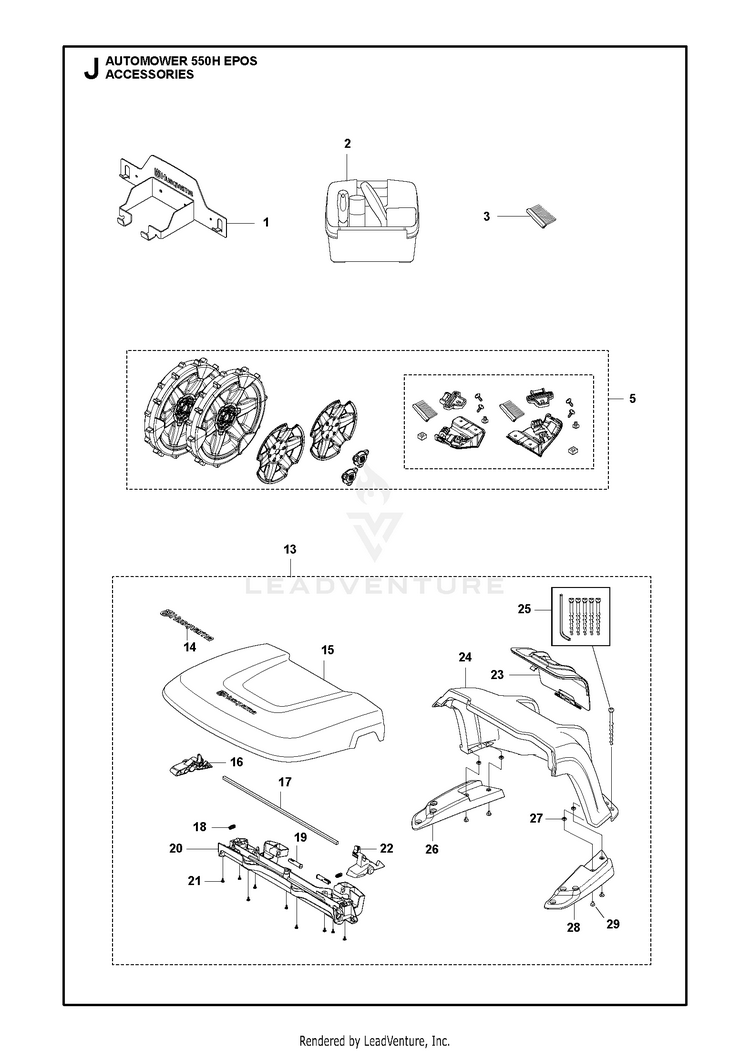

ACCESSORIES

...
...
26
SUPPORT BASE LEFT Support Base Left HUS-585323802
...
16
HANDLE RELEASE LEFT Handle Left HUS-585324002
...
21
SCREW 14MM Screw HUS-575543314
...
19
HINGE PIN Hinge Pin HUS-585341501
...
17
ROD Rod HUS-585324101
...
13
COVER House KIT HUS-597635201
...
24
NEEDS DESCRIPTION Cover Base HUS-597635701
...
1
HANGER Wall Hanger HUS-598411101
...
27
NUT Square Nut HUS-503226601
...
29
SCREW IHPANM M6X25 4.6 ZP-BC Screw HUS-535129303
...
3
WHEEL BRUSH REFILL KIT Brush, 6pcs HUS-581982002
...
23
HATCH P2 GREY Hatch HUS-585323602
...
5
AUTOMOWER ACCY Rear Wheel Kit incl Brush Kit HUS-581889711
...
20
BEAM Beam HUS-585341601
...
25
Screws 6 pcs+Key HUS-597435801
...
2
CLG Maintenance and Cleaning KIT HUS-590855102
...
28
SUPPORT BASE RIGHT Support Base Right HUS-585323801
...
18
SPRING SPRING CAP Spring HUS-580511401
...
14
DECAL Decal HUS-577062001
...
22
HANDLE RELEASE RIGHT Handle Right HUS-585324001
