Husqvarna AUTOMOWER 550 EPOS Robotic Lawn Mower

Model: AUTOMOWER 550 EPOS

Back To Assemblies

Save Part Not Listed?
product name

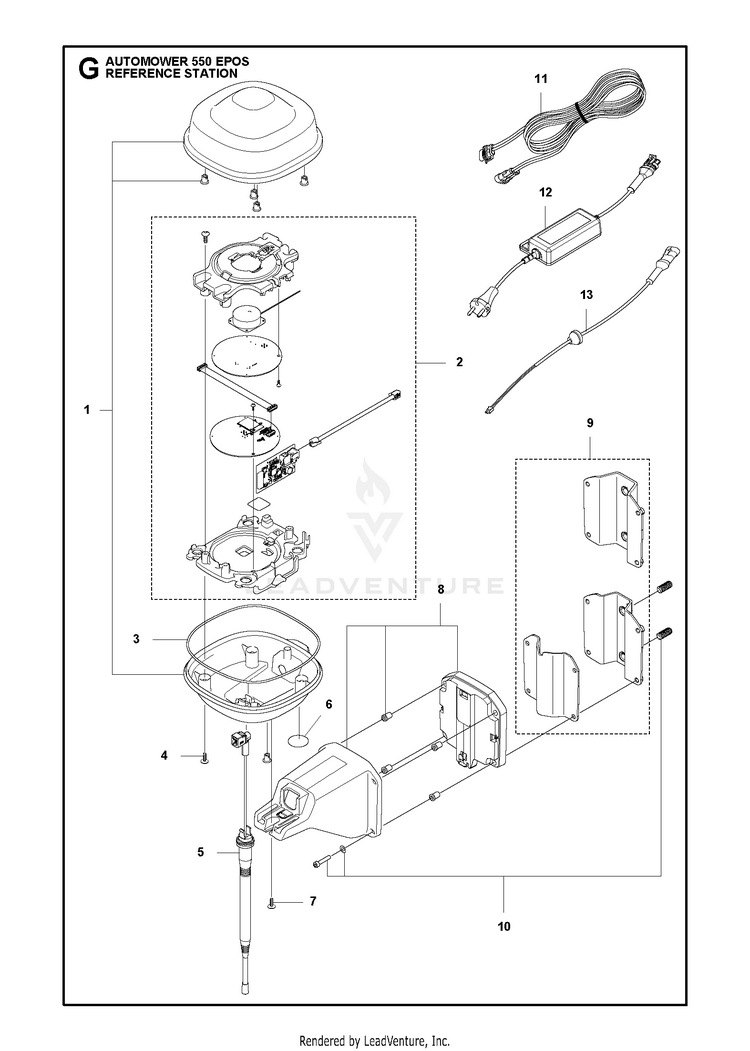

REFERENCE STATION

...
...
13
WIRING ASSY POWER REFERENCE ST Power Cable HUS-598936501
...
8
ARM ARM ASSY Link Arm kit HUS-529413201
...
5
ANTENNA ANT ELEV FEED 1/2 DIPO Antenna HUS-598960502
...
12
NEEDS DESCRIPTION Power Supply Unit CH HUS-590442203
...
11
CABLE ASSY LOW VOLTAGE CABLE Low Voltage Cable, 3 m HUS-579825103
...
10
PACKING ASSY POST FIXINGS KIT Fixing Kit HUS-599661501
...
11
CABLE ASSY LOW VOLTAGE CABLE Low Voltage Cable, 10 m HUS-579825102
...
11
CABLE ASSY LOW VOLTAGE CABLE Low Voltage Cable, 5 m HUS-579825104
...
12
POWER SUPPLY 1.3A US, CA Power Supply Unit US HUS-529532604
...
6
AIR FILTER P3 SPARES KIT (10) Air Filter, Goretext 14mm 10 pcs HUS-577753702
...
12
POWER UNIT SUPPLY 1.3A EU Power Supply Unit EU HUS-529532601
...
2
NEEDS DESCRIPTION RTK module EU HUS-599139801
...
11
CABLE ASSY LOW VOLTAGE CABLE Low Voltage Cable, 20 m HUS-579825101
...
2
PRINTED CIRCUIT ASSY RTK module US HUS-599139804
...
1
HOUSING ASSY ENCLOSURE SPARES Enclosure Kit HUS-529440101
...
4
SCREW ITXPANM PAN HEAD EPDM SE Screw HUS-599631901
...
9
BRACKET POST FIXING KIT Post Bracker Kit HUS-529650701
...
3
SEAL EPDM LOOP REFERENCE STATI EPDM Seal HUS-599911801
...
7
SCREW ITXPANM M4X12 A2-70 PAT Screw HUS-588222201
...
12
NEEDS DESCRIPTION Power Supply Unit UK HUS-590442202
...
12
NEEDS DESCRIPTION Power Supply Unit AU/NZ HUS-590442205
