Husqvarna AUTOMOWER 535 AWD Robotic Lawn Mower

Model: AUTOMOWER 535 AWD

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

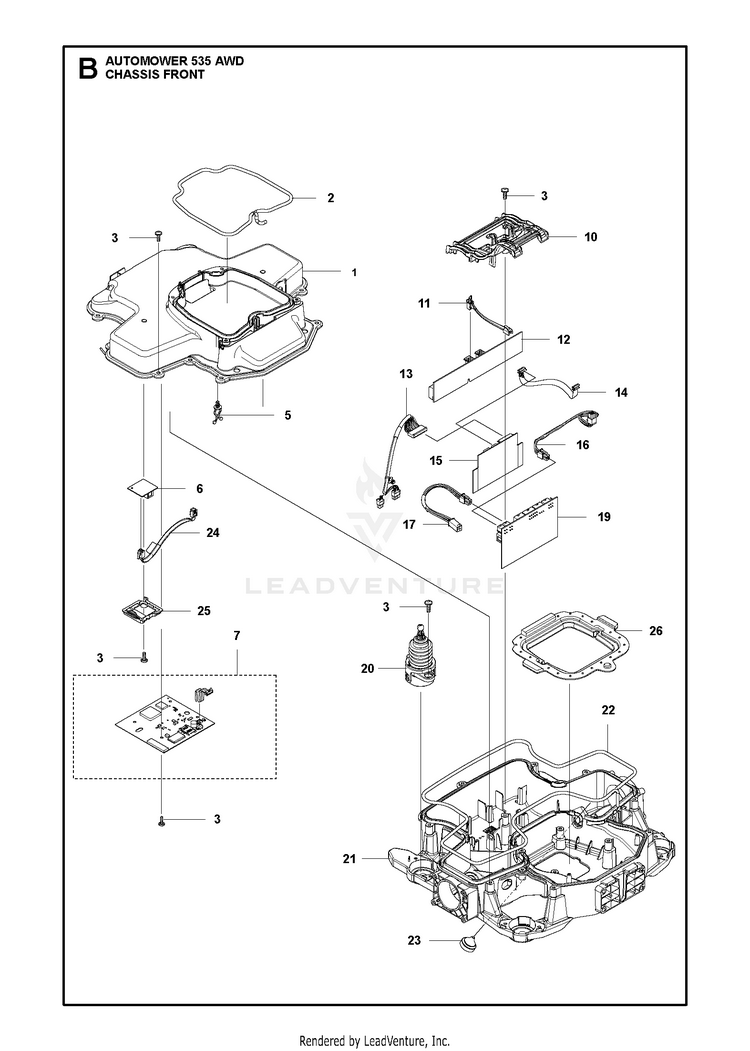

CHASSIS

...
...
19
Circuits Motor Controler Board HUS-591125601
...
2
Seals Chassis Upper Front HUS-574874714
...
5
HOLDER TWIST LOCK Twist lock HUS-580682901
...
11
WIRING ASSY Modular Jack HUS-536253903
...
25
Holders Magnetic Sensor Board HUS-591494301
...
1
Chassis Upper front HUS-592743401
...
22
Seals Chassis Lower Front HUS-574874712
...
6
Circuits Magnetic Sensor HUS-591125501
...
21
Chassis Lower front HUS-592743601
...
24
WIRING ASY MODULAR JACK 250MM Modular Jack HUS-536253908
...
7
NEEDS DESCRIPTION AM Connect, KIT, UK,IE,CH,IT,ES,PT,DE,FR,AT,NL,BE,LUX,SI,SE,NO,DK,FI HUS-586662309
...
10
Holders PCB front HUS-592743701
...
17
Wires Main Cable Adapter 4P HUS-591203301
...
26
DUST SEAL FOR CUTTING SYSTEM HUS-598369701
...
7
NEEDS DESCRIPTION AM Connect, KIT, AU,NZ HUS-586662308
...
13
Wires Ultra Sonic Extension HUS-580614402
...
23
GROMMET M16 HUS-584897501
...
16
NEEDS DESCRIPTION HMI cable 4P HUS-591203103
...
14
Wires AUX HUS-579708602
...
7
NEEDS DESCRIPTION AM Connect, KIT, US,CA HUS-586662311
...
3
SCREW 14MM HUS-575543314
...
7
NEEDS DESCRIPTION AM Connect, KIT, CZ,PL,SK,HU,UA,RO,GR,HR,TR,BG,RU,LT,LV,EE,ZA,BR,CL,UY,PY,AR,CO,EC,PE,CR HUS-586662311
...
20
Joystick Assy HUS-592736301
...
15
PRINTED CIRCUIT ASSY ULTRASONI Ultra Sonic Board HUS-578285703
...
12
PRINTED CIRCUIT ASSY Loop Receiver Board HUS-591125704
