Husqvarna AUTOMOWER 535 AWD Robotic Lawn Mower

Model: AUTOMOWER 535 AWD

Back To Assemblies

Save Part Not Listed?
product name

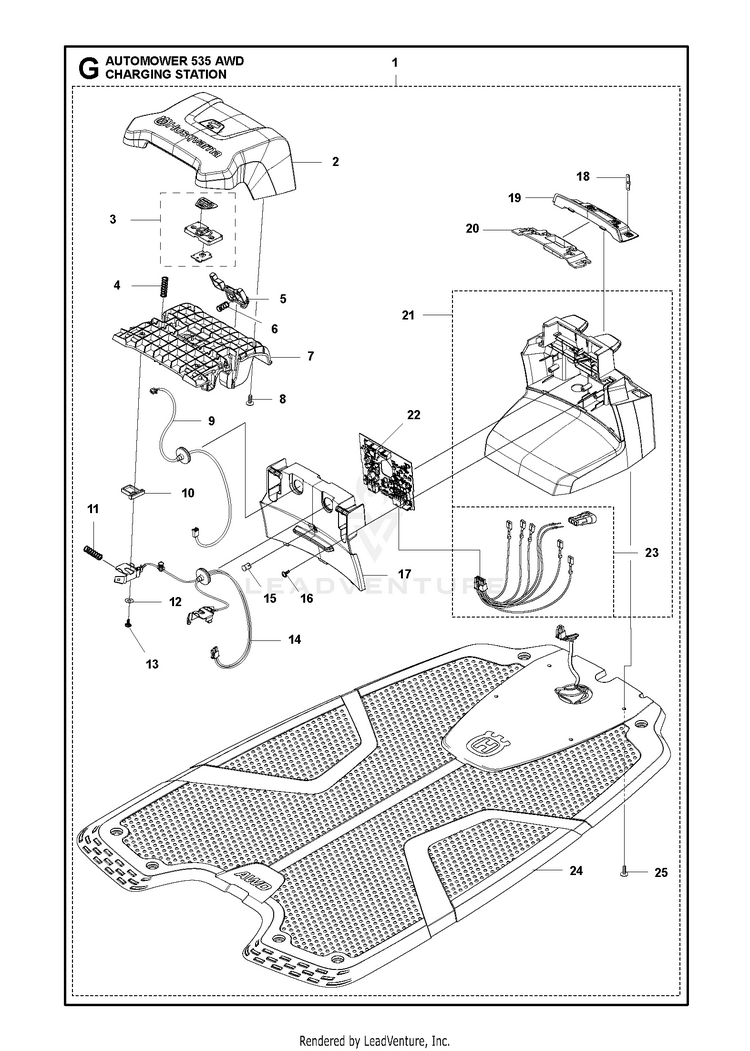

CHARGING STATION

...
...
16
SCREW 14MM HUS-575543314
...
2
CAP CHARGING STATION WITHOUT H With park button HUS-579448204
...
14
WIRING ASSY Loom Charging Contact HUS-531242201
...
24
Bases Charging Plate HUS-595283601
...
17
LID CHARGING STATION 320, ONE 1 hole HUS-579459704
...
5
BUTTON CHARGING STATION, RELEA Button-Release HUS-579462402
...
19
PANEL CHARGING STATION 340, TH HUS-579459803
...
12
WASHER HUS-734113741
...
10
NEEDS DESCRIPTION HUS-579460502
...
22
PRINTED CIRCUIT ASSY, AUTOMOWE PCBA Charging Station HUS-592894503
...
17
LID CHARGING STATION 330, TWO 2 holes HUS-579459703
...
11
SPRING SPRING CAP HUS-580511401
...
21
HOUSING ASSY CHARGING STATION Kolla samma P2 HUS-588188801
...
2
CAP CHARGING STATION Without Park button HUS-579448203
...
25
SCREW 14MM HUS-575543314
...
3
BUTTON KIT HOME Home Button Kit HUS-501065901
...
18
TERMINAL TERMINAL CHARGING STA HUS-580504101
...
9
LOOM HOME BUTTON Home Button Wiring HUS-579708301
...
23
CABLE KIT GENERATOR BOARD Wiring CS HUS-588478901
...
1
Charging Station Universal P25 3 guides with parkbutton HUS-595310102
...
15
LENS DIODE HUS-590217201
...
20
HOLDER CHARGING STATION HUS-579459901
...
13
SCREW 14MM HUS-575543314
...
4
SPRING SPRING CAP HUS-580511401
...
7
FRAME CHARGING STATION HUS-579458004
...
6
SPRING STOP BUTTON HUS-574487001
...
8
SCREW 14MM HUS-575543314
