Husqvarna AUTOMOWER 520H Robotic Lawn Mower

Model: AUTOMOWER 520H

Back To Assemblies

Save Part Not Listed?
product name

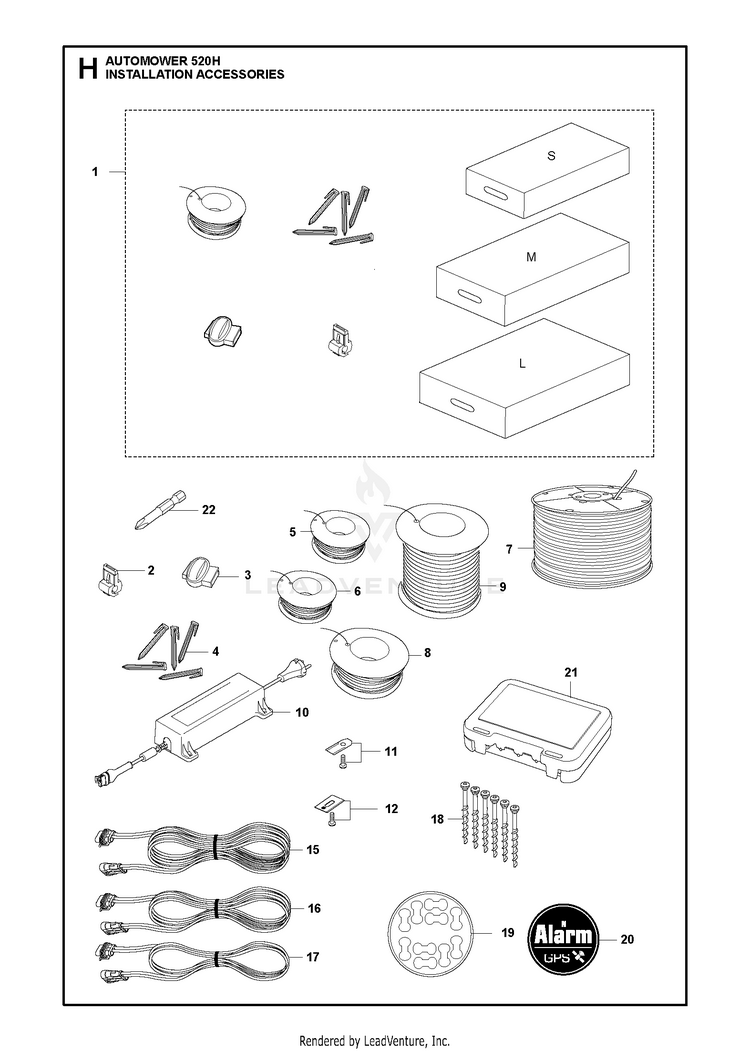

INSTALLATION ACCESSORIES

...
...
15
CABLE LOW VOLTAGE CABLE P2 5-7 Low Voltage Cable, 20 m HUS-588765004
...
10
POWER UNIT 2.2A USA/CA Power Supply Unit 2.2A US HUS-599628504
...
11
HUS BLADE SET 9 PCS Long Life Safety Blade, Blister Pack 9 pcs HUS-596287201
...
3
HUS COUPLER SPLICER 100 PCS Coupler, 100 pcs HUS-596287001
...
16
CABLE LOW VOLTAGE CABLE P2 5-7 Low Voltage Cable, 10 m HUS-588765005
...
4
HUS AM STAPLE 100 PCS Staple Blister Pack 100 pcs HUS-596281901
...
5
WIRE 50M STANDARD Ø2.7MM,BLIST Wire, Blister Pack 50 m HUS-577864302
...
2
HUS CONNECTOR 5 PCS, BLISTER Loop Wire Connector HUS-596290401
...
11
HUS BLADE SET 45 PCS Long Life Safety Blade, 45 pcs HUS-596287301
...
1
HUS MED INSTALL KIT AM M Wire 250 m, Staples 400 pc, Connectors 3 pcs, Couplers 5 pcs HUS-967944602
...
5
HUS AM BOUND WIRE 150M STD Wire, 150 m HUS-596286801
...
8
HUS AM BOUND WIRE 500M HD Wire, 500 m, diam 3,4mm HUS-596286701
...
20
Decals Label Alarm HUS-594054801
...
12
BLADE SET ENDURANCE 45 PCS Endurance Blade, 45 pcs HUS-595084412
...
1
HUS SMALL INSTALL KIT AM S Wire 150 m, Staples 300 pc, Connectors 3 pcs, Couplers 5 pcs HUS-967944601
...
18
Screws 6 pcs HUS-597435801
...
3
HUS COUPLER SPLICER 5 PCS Coupler, Blister Pack 5 pcs HUS-596287101
...
17
CABLE LOW VOLTAGE CABLE P2 5-7 Low Voltage Cable, 3 m HUS-588765006
...
19
STICKER CABLE MARKERS KIT 3 GU Cable Markers, 10 pcs HUS-586277902
...
5
HUS AM BOUND WIRE 150M STD Wire, Blister Pack 150 m HUS-596286801
...
18
Screws Blister Pack, 3 pcs HUS-597435801
...
4
HUS AM STAPLE 100 PCS 100 pcs HUS-596281901
...
2
CONNECTOR 100 PCS Loop Wire Connector, Blister Pack 100 pcs HUS-535129002
...
1
LG INSTALL KIT BLACK WIRE S Wire 400 m, Staples 600 pc, Connectors 5 pcs, Couplers 5 pcs HUS-967972302
...
22
WRENCH BITS CHANGING ROBOTIC B Bit for Robotic Blades HUS-596339801
...
3
HUS COUPLER SPLICER 5 PCS Coupler HUS-596287101
...
6
WIRE 250M Wire, 250 m HUS-580662001
...
9
HUS STD WIRE 800M X 2.7MM Wire, 800 m HUS-596286601
...
7
NEEDS DESCRIPTION Wire Pro, 300 m HUS-593297701
...
21
CLG Cable Connector Protection HUS-590855002
...
11
HUS BLADE SET 300 PCS Long Life Safety Blade, 300 pcs HUS-596287302
...
12
BLADE SET ENDURANCE 6PCS Endurance Blade, Blister Pack 6 pcs HUS-595084411
...
2
HUS CONNECTOR 5 PCS, BLISTER Loop Wire Connector, Blister Pack 5 pcs HUS-596290401
...
12
BLADE SET ENDURANCE 300 PCS Endurance Blade, 300 pcs HUS-595084413
