Husqvarna AUTOMOWER 520H Robotic Lawn Mower

Model: AUTOMOWER 520H

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

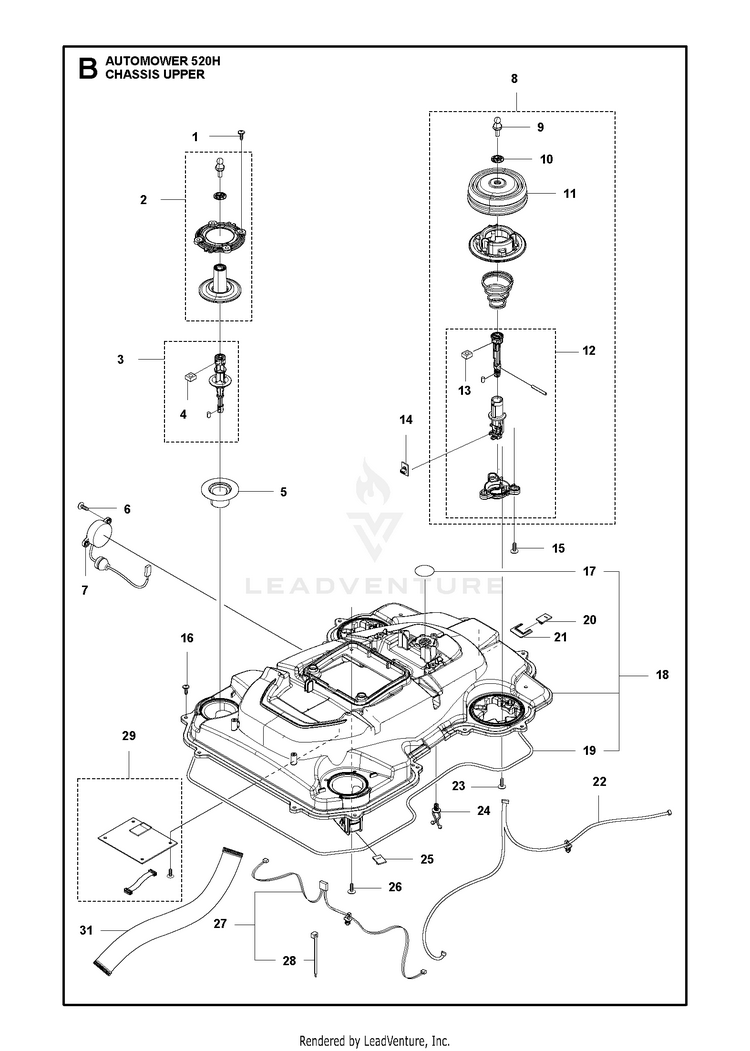

CHASSIS UPPER

...
...
15
SCREW 14MM Screw HUS-575543314
...
2
JOYSTICK KIT REAR Joystick KIT Rear HUS-501061301
...
18
CHASSIS KIT UPPER Chassis KIT HUS-581620802
...
21
CLIP COLLISION BOARD Clip HUS-587834901
...
27
LOOM KIT LIFT SENSOR Wiring KIT HUS-581621101
...
10
WASHER JOYSTICK Washer HUS-579525701
...
22
WIRE ASSEMBLY COLLISION SENSOR Wiring HUS-581660902
...
4
NUT Square Nut HUS-503226601
...
29
NEEDS DESCRIPTION Automower Connect KIT (CBT5 PROP65) HUS-586662311
...
17
KIT AIR FILTER KIT 305 - 10 PC Air Filter 10 pcs HUS-577753701
...
26
SCREW ITXPANT Screw HUS-574450101
...
16
SCREW ITXPANT Screw HUS-574450101
...
7
BUZZER ASSY Buzzer HUS-579706302
...
6
SCREW 14MM Screw HUS-575543314
...
8
JOYSTICK KIT Joystick KIT Front HUS-581620903
...
24
HOLDER TWIST LOCK Holder Twist Lock HUS-580682901
...
19
SEALING STRIP Sealing Strip (1 pcs, Ø5 mm) HUS-574874705
...
5
MOVEMENT LIMITER Deflection Limiter HUS-535143201
...
11
BELLOWS LIFT-COLLISION Bellows HUS-579474601
...
1
SCREW ITXPANT Screw HUS-574450101
...
28
BAND Tie Wrap HUS-900238708
...
20
PRINTED CIRCUIT ASSY COLLISION PCBA Collision Sensor HUS-592852401
...
31
LOOM MMI Wiring HUS-579706201
...
14
PRINTED CIRCUIT ASSY PCBA LIFT PCBA Lift Sensor HUS-592852301
...
12
JOYSTICK KIT Joystick KIT HUS-587448802
...
9
STUD SNAPLOC Stud HUS-580526701
...
13
NUT Square Nut HUS-503226601
...
3
JOYSTICK KIT REAR Column KIT HUS-501122602
...
23
SCREW ITXPANT Screw HUS-574450101
...
25
PRINTED CIRCUIT ASSY COLLISION PCBA Collision Sensor HUS-592852401
