Husqvarna AUTOMOWER 520 Robotic Lawn Mower

Model: AUTOMOWER 520

Back To Assemblies

Save Part Not Listed?
product name

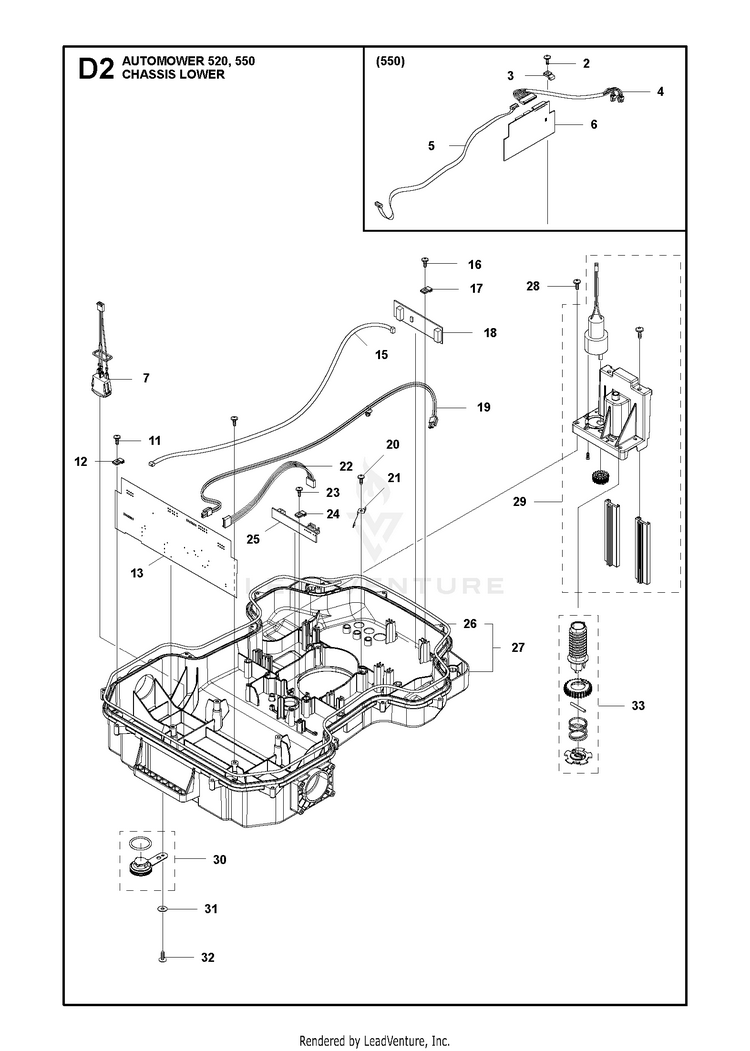

CHASSIS LOWER

...
...
25
PRINTED CIRCUIT ASSY PCBA CUTT Printed Circuit Height Adjustment HUS-579728502
...
16
SCREW 14MM Screw HUS-575543314
...
31
WASHER Washer HUS-734113741
...
3
CLAMP PCB Clamp HUS-579529401
...
6
PRINTED CIRCUIT ASSY ULTRASONI Printed Circuit Ultrasonic HUS-578285703
...
29
MOTOR ASSY HEIGHT MOTOR Motor KIT HUS-501068301
...
7
LOOM ON/ OFF Switch On-Off HUS-579708701
...
33
SCREW KIT Gear KIT HUS-581621601
...
9
SCREW ITXPANT Screw HUS-574450101
...
19
WIRING ASSY CHARGING LINK AWG1 Charging Cable HUS-534156602
...
11
SCREW 14MM Screw HUS-575543314
...
15
LOOM LOOP SENSOR Sensor Cable HUS-579708201
...
28
SCREW 14MM Screw HUS-575543314
...
24
CLAMP PCB Clamp HUS-579529401
...
23
SCREW 14MM Screw HUS-575543314
...
32
SCREW ITXPANT Screw HUS-574450101
...
30
PLUG KIT Plug KIT HUS-581621202
...
20
SCREW 14MM Screw HUS-575543314
...
26
SEALING STRIP Sealing Strip (1 pcs, Ø5 mm) HUS-574874705
...
17
CLAMP PCB Clamp HUS-579529401
...
5
LOOM AUX AUX Cable HUS-579708601
...
22
LOOM HEIGHT ADJUSTMENT Height Adjustment Wiring HUS-579708001
...
34
WIRING ASSY BATTERY CABLE BASI HUS-535018401
...
4
Wires US-Extension Wiring HUS-580614402
...
21
SPRING GUIDE HEIGHT ADJUSTMENT Spring HUS-581556101
...
12
CLAMP PCB Clamp HUS-579529401
...
27
CHASSIS KIT CHASSIS KIT AM520 HUS-581621702
...
13
PRINTED CIRCUIT ASSY PCBA MAIN Main Board HUS-592852601
...
18
PRINTED CIRCUIT ASSY LOOP SENS Printed Circuit Loop Sensor HUS-592852701
...
2
SCREW 14MM Screw HUS-575543314
