Husqvarna AUTOMOWER 450XH Robotic Lawn Mower

Model: AUTOMOWER 450XH

Back To Assemblies

Save Part Not Listed?
product name

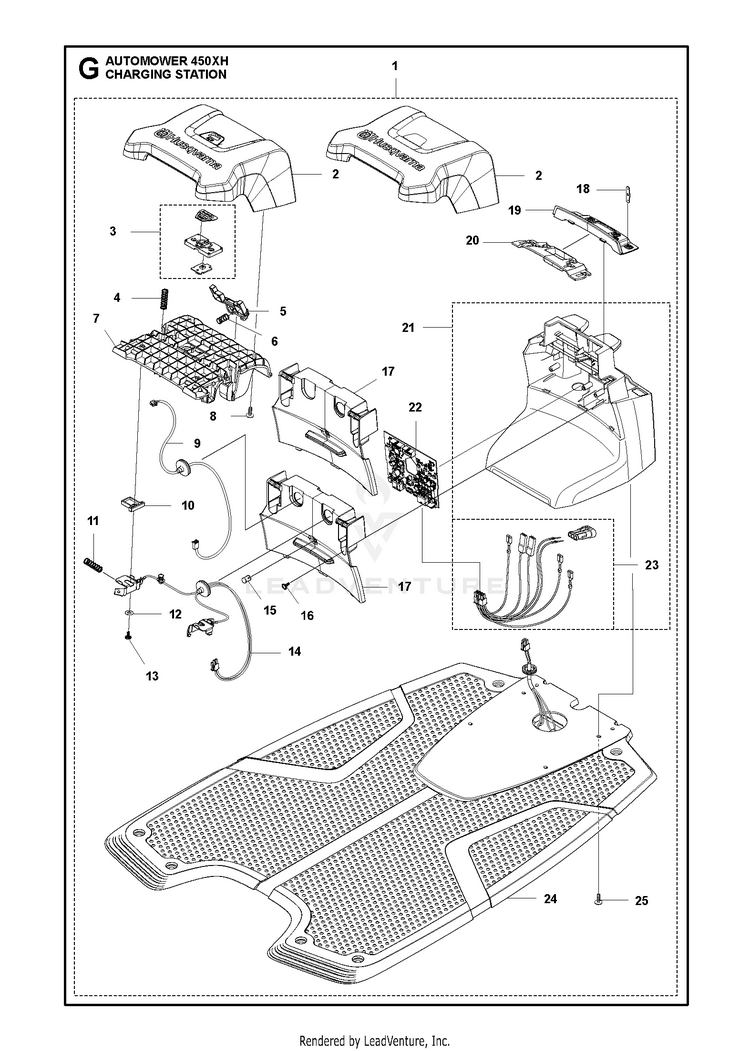

CHARGING STATION

...
...
25
SCREW 14MM HUS-575543314
...
6
SPRING STOP BUTTON HUS-574487001
...
13
SCREW 14MM HUS-575543314
...
1
CHARGING STATION UNIVER HI-CUT Universal High-Cut HUS-596537501
...
10
NEEDS DESCRIPTION HUS-579460502
...
3
BUTTON KIT HOME Home Button Kit HUS-501065901
...
22

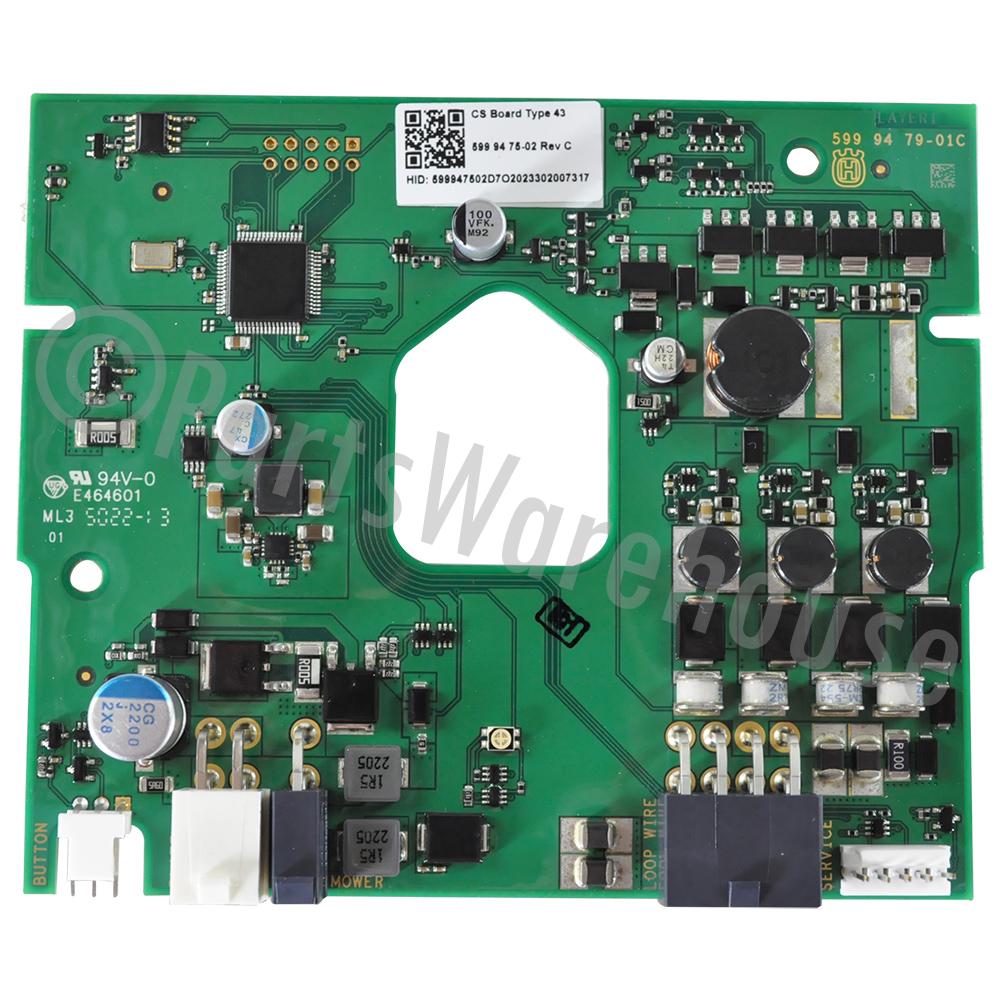

PRINTED CIRCUIT ASSY, AUTOMOWE PCBA Charging Station HUS-592894503
...
12
WASHER HUS-734113741
...
17
LID CHARGING STATION 320, ONE 1 hole (without park button) HUS-579459704
...
4
SPRING SPRING CAP HUS-580511401
...
21
HOUSING ASSY CHARGING STATION HUS-596496701
...
9
LOOM HOME BUTTON Home Button Wiring HUS-579708301
...
24
BASE ASSY CHARGING STATION Charging Plate HUS-590094001
...
8
SCREW 14MM HUS-575543314
...
15
LENS DIODE HUS-590217201
...
11
SPRING SPRING CAP HUS-580511401
...
16
SCREW 14MM HUS-575543314
...
19
PANEL CHARGING STATION 340, TH HUS-579459803
...
17
LID CHARGING STATION 330, TWO 2 holes (with park button) HUS-579459703
...
20
HOLDER CHARGING STATION HUS-579459901
...
23

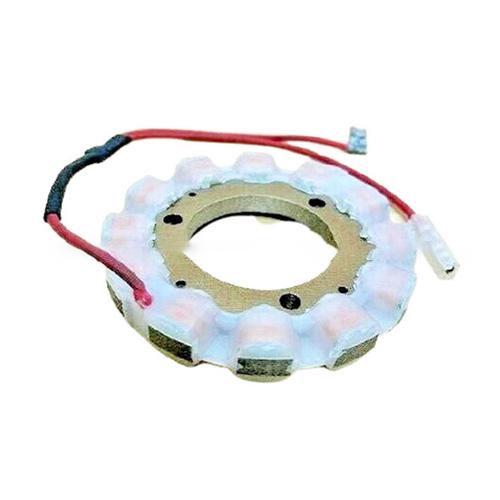

CABLE KIT GENERATOR BOARD Wiring CS HUS-588478901
...
5
BUTTON CHARGING STATION, RELEA Button-Release HUS-579462402
...
7
FRAME CHARGING STATION HUS-579458004
...
14
WIRING ASSY Loom Charging Contact HUS-531242201
...
2
CAP CHARGING STATION WITHOUT H With park button HUS-579448204
...
18
TERMINAL TERMINAL CHARGING STA HUS-580504101
...
2
CAP CHARGING STATION Without park button HUS-579448203
