Husqvarna AUTOMOWER 450XH Robotic Lawn Mower

Model: AUTOMOWER 450XH

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

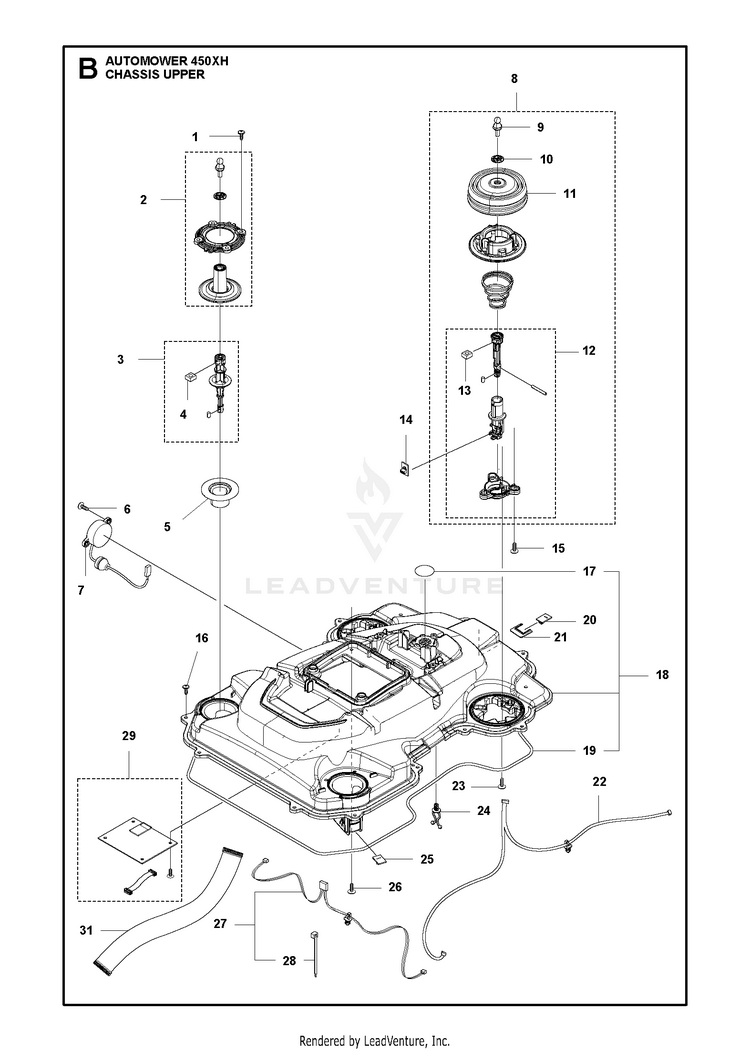

CHASSIS UPPER

...
...
9
STUD SNAPLOC HUS-580526701
...
25
PRINTED CIRCUIT ASSY COLLISION PCBA Collision Sensor HUS-592852401
...
27
LOOM KIT LIFT SENSOR Wiring HUS-581621101
...
29
NEEDS DESCRIPTION Automower Connect Kit HUS-586662311
...
3
JOYSTICK KIT REAR Column Kit HUS-501122602
...
26
SCREW 14MM Check this part HUS-575543314
...
15
SCREW 14MM HUS-575543314
...
19
SEALING STRIP 1 pcs, diam 5 mm HUS-574874705
...
13
NUT HUS-503226601
...
21
CLIP COLLISION BOARD HUS-587834901
...
28
BAND HUS-900238708
...
14
PRINTED CIRCUIT ASSY PCBA LIFT PCBA Lift Sensor HUS-592852301
...
22
WIRE ASSEMBLY COLLISION SENSOR Wiring HUS-581660902
...
4
NUT HUS-503226601
...
1
SCREW ITXPANT HUS-574450101
...
12
JOYSTICK KIT HUS-587448802
...
20
PRINTED CIRCUIT ASSY COLLISION PCBA Collision Sensor HUS-592852401
...
31
LOOM MMI Wiring HUS-579706201
...
16
SCREW ITXPANT HUS-574450101
...
23
SCREW 14MM Check this part HUS-575543314
...
5
MOVEMENT LIMITER HUS-535143201
...
18
CHASSIS KIT UPPER HUS-581620802
...
10
WASHER JOYSTICK HUS-579525701
...
2
JOYSTICK KIT REAR Rear HUS-501061301
...
8
JOYSTICK KIT Front HUS-581620903
...
7
BUZZER ASSY HUS-579706302
...
17
KIT AIR FILTER KIT 305 - 10 PC Air Filter 10 pcs HUS-577753701
...
11
BELLOWS LIFT-COLLISION HUS-579474601
...
6
SCREW 14MM HUS-575543314
...
24
HOLDER TWIST LOCK Holder Twist Lock HUS-580682901
