product name

Husqvarna AUTOMOWER 450XH Robotic Lawn Mower

Model: AUTOMOWER 450XH

Back To Assemblies

Save Part Not Listed?
product name

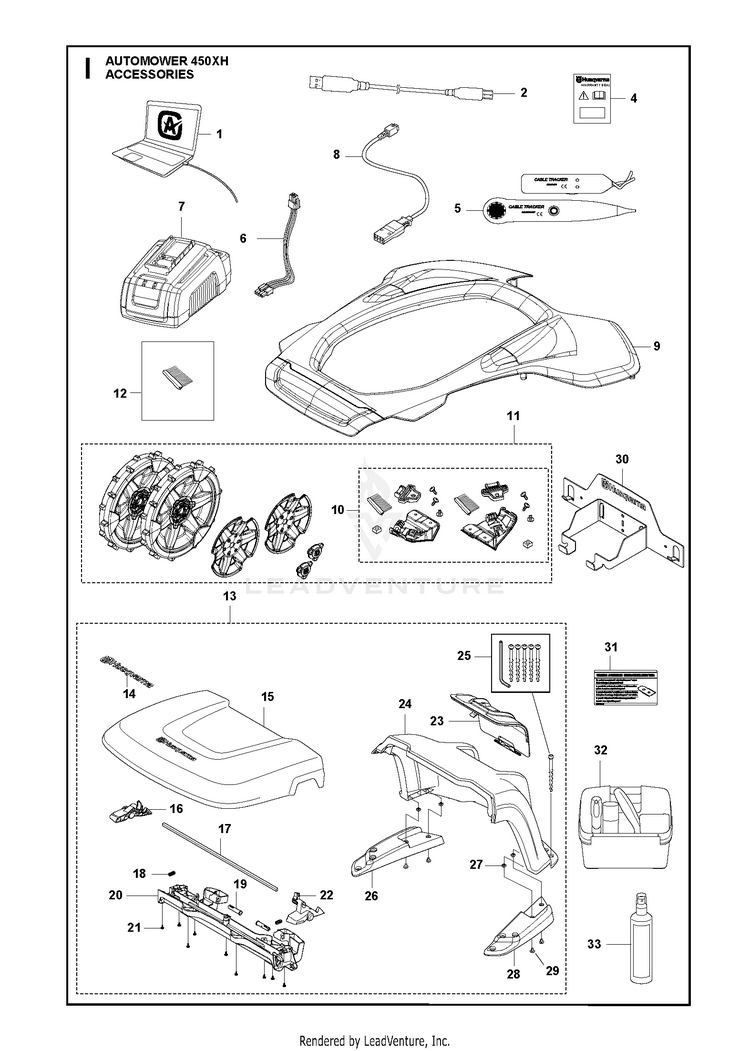

ACCESSORIES

...
...
24
NEEDS DESCRIPTION Cover Base HUS-597635701
...
29
SCREW IHPANM M6X25 4.6 ZP-BC Screw HUS-535129303
...
19
HINGE PIN Hinge Pin HUS-585341501
...
12
WHEEL BRUSH REFILL KIT Brush, 6 pcs HUS-581982002
...
14
DECAL DECAL HUS-577062001
...
26
SUPPORT BASE LEFT Support Base Left HUS-585323802
...
22
HANDLE RELEASE RIGHT Handle Right HUS-585324001
...
2
CABLE WHITE ALT GREY Service Cable USB HUS-577518102
...
9
COVER Top Cover White HUS-588799111
...
16
HANDLE RELEASE LEFT Handle Left HUS-585324002
...
31
DECAL WARNING ORIGINAL BLADE E Original Parts Sticker EN,ES,FR,IT HUS-591374103
...
18
SPRING SPRING CAP Spring HUS-580511401
...
33
AUTOMOWER ACCY HUS-593967901
...
10
WHEEL BRUSH KIT (4/500 NO AWD) Brush Kit, Incl. Brush 6 pcs HUS-581903112
...
7
CHARGER TEST CHARGER ROBOTICS Quick Charger with Battery Test HUS-588408402
...
11
AUTOMOWER ACCY Rear Wheel Kit, incl. Brush Kit HUS-581889711
...
32
CLG Maintenance and cleaning kit HUS-590855102
...
4
LABEL WARRANTY SEAL DEALER Warranty Seal, 1pcs HUS-580689502
...
27
NUT Square Nut HUS-503226601
...
23
HATCH P2 GREY Hatch HUS-585323602
...
8
CABLE ASSY QUICK CHARGER Cable Quick Charger HUS-588202601
...
6
WIRING ASSY BATTERY CABLE BASI Battery HUS-535018401
...
25
Screws Screw Kit HUS-597435801
...
17
ROD Steel Rod HUS-585324101
...
9
COVER Top Cover Orange HUS-588799112
...
21
SCREW 14MM Screw HUS-575543314
...
30
HANGER Wall hanger HUS-598411101
...
13
COVER House KIT HUS-597635201
...
5
TEST EQUIPMENT Interruption Detecter HUS-577606801
...
9
COVER Top Cover Grey HUS-588799110
...
28
SUPPORT BASE RIGHT Support Base Left HUS-585323801
...
20
BEAM Beam HUS-585341601
