Husqvarna AUTOMOWER 450X (2017-01) Robotic Lawn Mower

Model: AUTOMOWER 450X (2017-01)

Back To Assemblies

Save Part Not Listed?
product name

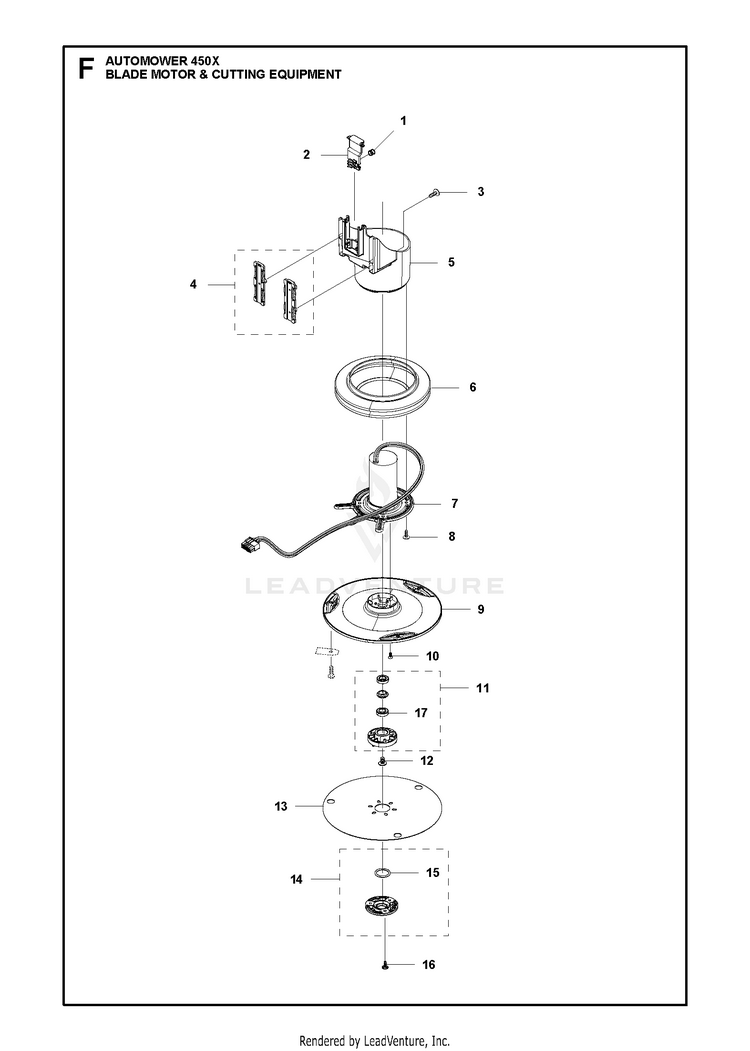

BLADE MOTOR & CUTTING EQUIPMENT

...
...
14
COVER KIT BEARING Bearing Cover ASSY HUS-587449601
...
16
SCREW 14MM Screw HUS-575543314
...
10
SCREW TORX M4X8 8.8 NYLON PATC Screw HUS-535130502
...
1
SPRING LINK Spring HUS-580624401
...
4
BEARING KIT Bearing KIT HUS-581621801
...
5
HOUSING CUTTING MOTOR Housing HUS-579564501
...
15
O-RING 20X2,5 MM O-Ring HUS-585297501
...
9
CUTTING DISC Cutting Disc HUS-587378101
...
2
LINK MOTOR HOUSING Link HUS-579564601
...
17
BALL BEARING 2 RS,TIGHT CLEAR HUS-535075703
...
7
MOTOR ASSY JE Cutting Motor ASSY HUS-587381401
...
13
SKID PLATE Skid Plate HUS-587378001
...
11
BEARING HOUSING ASSY Bearing Housing ASSY HUS-588421702
...
8
SCREW 14MM Screw HUS-575543314
...
17
BALL BEARING BALL BEARING 535 Tube 50 pcs HUS-593080801
...
6
BELLOWS CUTTING SYSTEM Bellows HUS-579666403
...
12
SCREW Screw HUS-535076001
...
3
SCREW 14MM Screw HUS-575543314
