Husqvarna AUTOMOWER 440 Robotic Lawn Mower

Model: AUTOMOWER 440

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

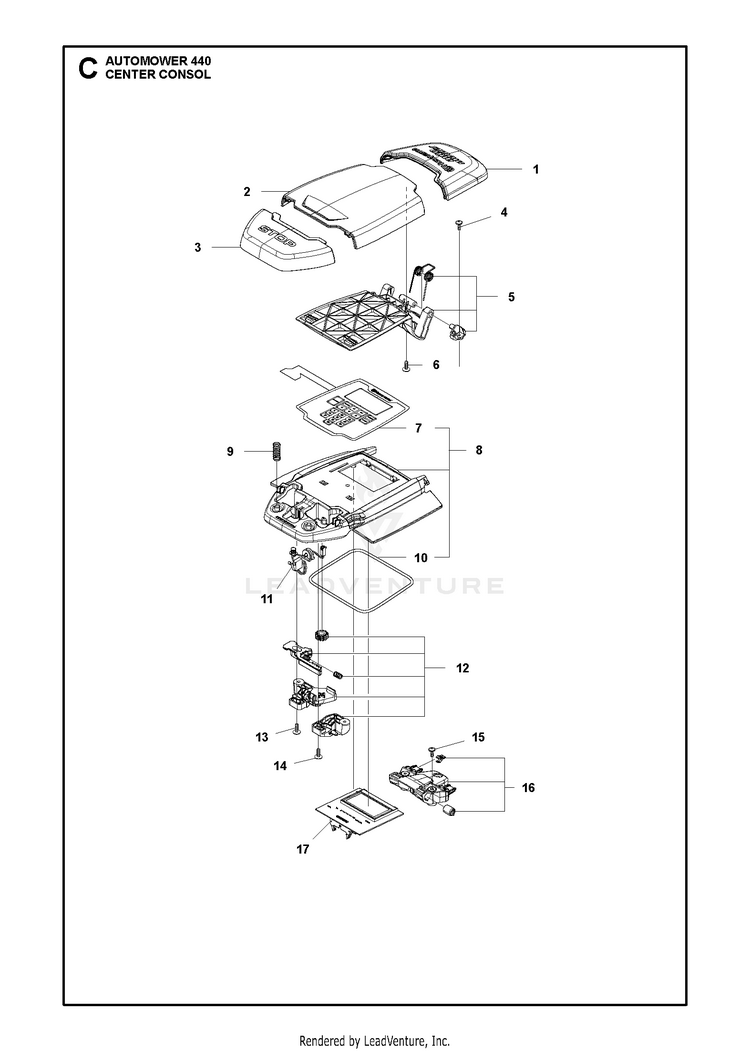

CENTER CONSOL

...
...
14
SCREW 14MM Screw HUS-575543314
...
3
BUTTON STOP Button HUS-579458101
...
2
HATCH ROBOTIC GREY Hatch HUS-579458501
...
6
SCREW 14MM Screw HUS-575543314
...
17
PRINTED CIRCUIT ASSY HMI BOARD For 2018 & 2017 Models HUS-592910401
...
15
SCREW 14MM Screw HUS-575543314
...
7
Keyboard HUS-579627901
...
1
NEEDS DESCRIPTION Cover HUS-588797506
...
4
SCREW 14MM Screw HUS-575543314
...
11
SWITCH STOP BUTTON NO ANCHOR Switch HUS-574480302
...
5
HINGE KIT KIT Hinge KIT HUS-501065801
...
12
LOCK KIT Locking Plate KIT HUS-501066001
...
9
SPRING Spring HUS-535130101
...
10
SEALING STRIP Sealing Strip (1 pcs, ¯5 mm) HUS-574874706
...
16
SUPPORT KIT FRONT Support KIT HUS-581620701
...
13
SCREW 14MM Screw HUS-575543314
...
17
PRINTED CIRCUIT ASSY HMI BOARD From 2019 Models HUS-592910401
...
8
Cover KIT HUS-581620601
