Husqvarna AUTOMOWER 440 (2017-01) Robotic Lawn Mower

Model: AUTOMOWER 440 (2017-01)

Back To Assemblies

Save Part Not Listed?
product name

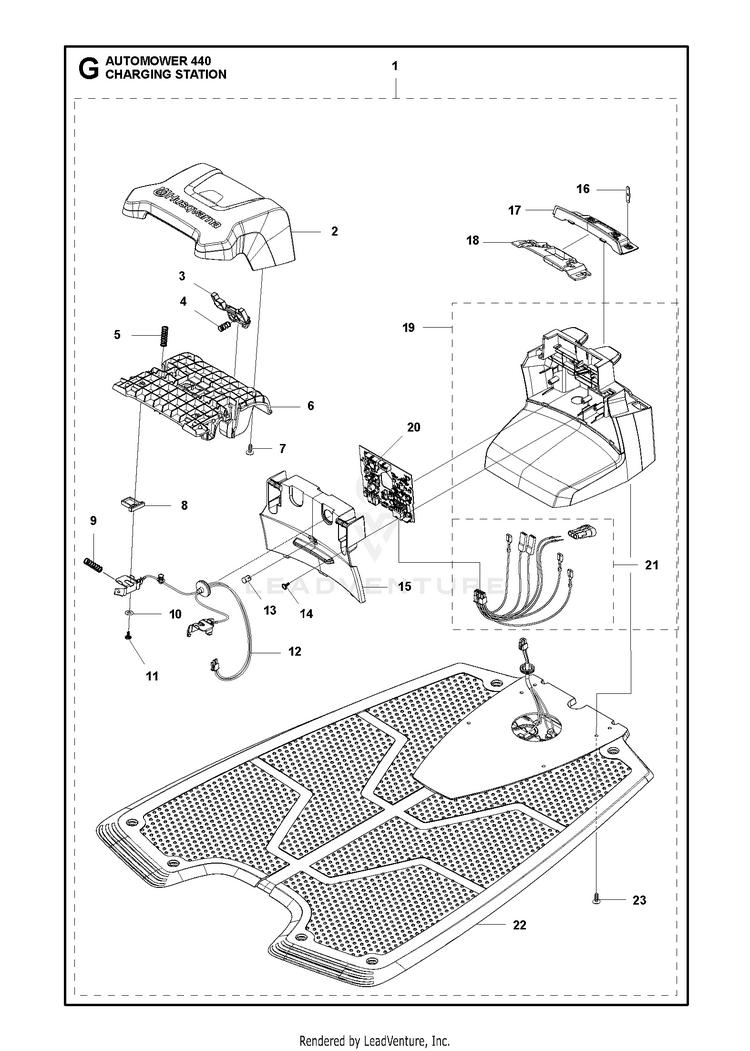

CHARGING STATION

...
...
18
HOLDER CHARGING STATION Holder HUS-579459901
...
17
PANEL CHARGING STATION 330, TW Panel HUS-579459802
...
15
LID CHARGING STATION 320, ONE Lid HUS-579459704
...
22
BASE ASSY CHARGING STATION Charging Plate HUS-590094001
...
6
FRAME CHARGING STATION Frame HUS-579458004
...
21
CABLE KIT GENERATOR BOARD Wiring CS HUS-588478901
...
12
WIRING ASSY Loom Charging Contact HUS-531242201
...
11
SCREW 14MM Screw HUS-575543314
...
14
SCREW 14MM Screw HUS-575543314
...
3
BUTTON CHARGING STATION, RELEA Button HUS-579462402
...
23
SCREW 14MM Screw HUS-575543314
...
2
CAP CHARGING STATION Cap HUS-579448203
...
5
SPRING SPRING CAP Spring HUS-580511401
...
10
WASHER Washer HUS-734113741
...
1
NEEDS DESCRIPTION Charging Station HUS-580765507
...
8
NEEDS DESCRIPTION Distance HUS-579460502
...
19
HOUSING ASSY CHARGING STATION Housing KIT HUS-588188801
...
4
SPRING STOP BUTTON Spring HUS-574487001
...
9
SPRING SPRING CAP Spring HUS-580511401
...
13
LENS DIODE Lens HUS-590217201
...
20
PCBA CS BOARD PCBA Charging Station HUS-589507802
...
7
SCREW 14MM Screw HUS-575543314
...
16
TERMINAL TERMINAL CHARGING STA Terminal HUS-580504101
Schematic Image Zoomed
