Husqvarna AUTOMOWER 440 (2017-01) Robotic Lawn Mower

Model: AUTOMOWER 440 (2017-01)

Back To Assemblies

Save Part Not Listed?
product name

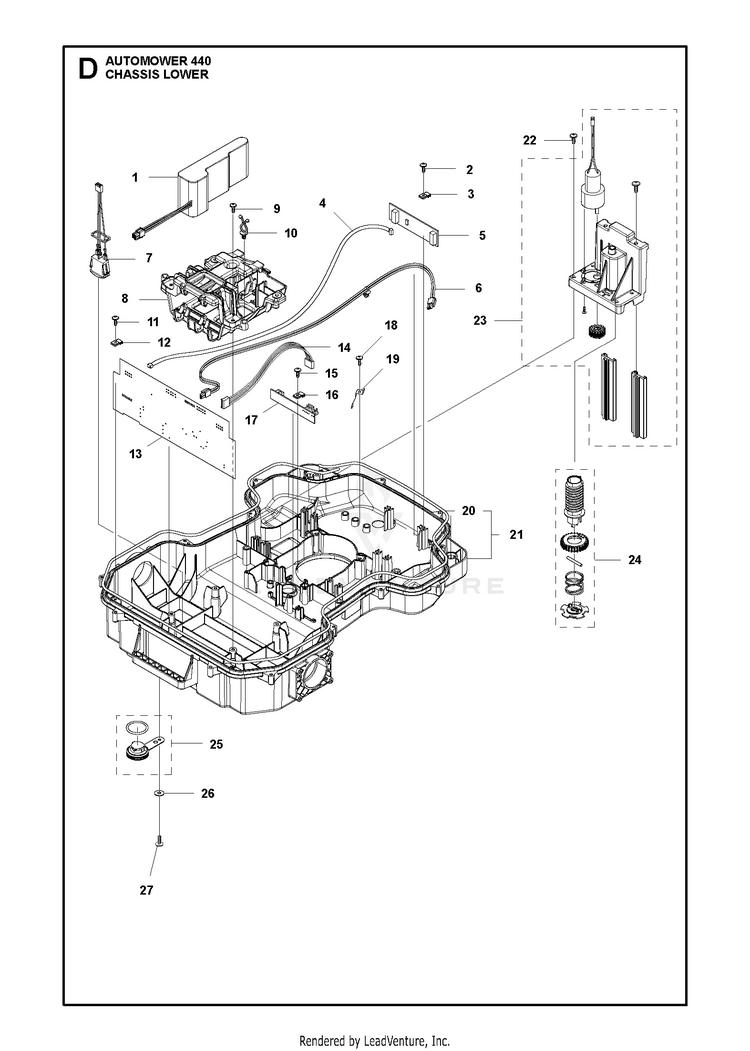

CHASSIS LOWER

...
...
24
SCREW KIT Screw KIT HUS-581621601
...
9
SCREW ITXPANT Screw HUS-574450101
...
13
PRINTED CIRCUIT ASSY PCBA MAIN Printed Circuit ASSY HUS-592852601
...
19
SPRING GUIDE HEIGHT ADJUSTMENT Spring HUS-581556101
...
26
WASHER Washer HUS-734113741
...
17
PRINTED CIRCUIT ASSY PCBA CUTT Printed Circuit ASSY HUS-579728502
...
27
SCREW ITXPANT Screw HUS-574450101
...
14
LOOM HEIGHT ADJUSTMENT Loom HUS-579708001
...
12
CLAMP PCB Clamp HUS-579529401
...
16
CLAMP PCB Clamp HUS-579529401
...
3
CLAMP PCB Clamp HUS-579529401
...
21
CHASSIS KIT Chassis KIT HUS-581621702
...
18
SCREW 14MM Screw HUS-575543314
...
25
PLUG KIT Plug KIT HUS-581621202
...
5
PRINTED CIRCUIT ASSY LOOP SENS Printed Circuit ASSY HUS-592852701
...
6
WIRING ASSY CHARGING LINK AWG1 Loom HUS-534156602
...
11
SCREW 14MM Screw HUS-575543314
...
15
SCREW 14MM Screw HUS-575543314
...
20
SEALING STRIP Sealing Strip (1 pcs, ¯5 mm) HUS-574874705
...
8
HOLDER BATTERY Holder HUS-580609602
...
22
SCREW 14MM Screw HUS-575543314
...
1
BATTERY KIT Battery HUS-529606802
...
10
HOLDER TWIST LOCK Holder HUS-580682901
...
23
MOTOR ASSY HEIGHT MOTOR Motor ASSY HUS-501068301
...
7
LOOM ON/ OFF Switch, On Off HUS-579708701
...
2
SCREW 14MM Screw HUS-575543314
...
4
LOOM LOOP SENSOR Loom HUS-579708201
