Husqvarna AUTOMOWER 435X AWD Robotic Lawn Mower

Model: AUTOMOWER 435X AWD

Back To Assemblies

Save Part Not Listed?
product name

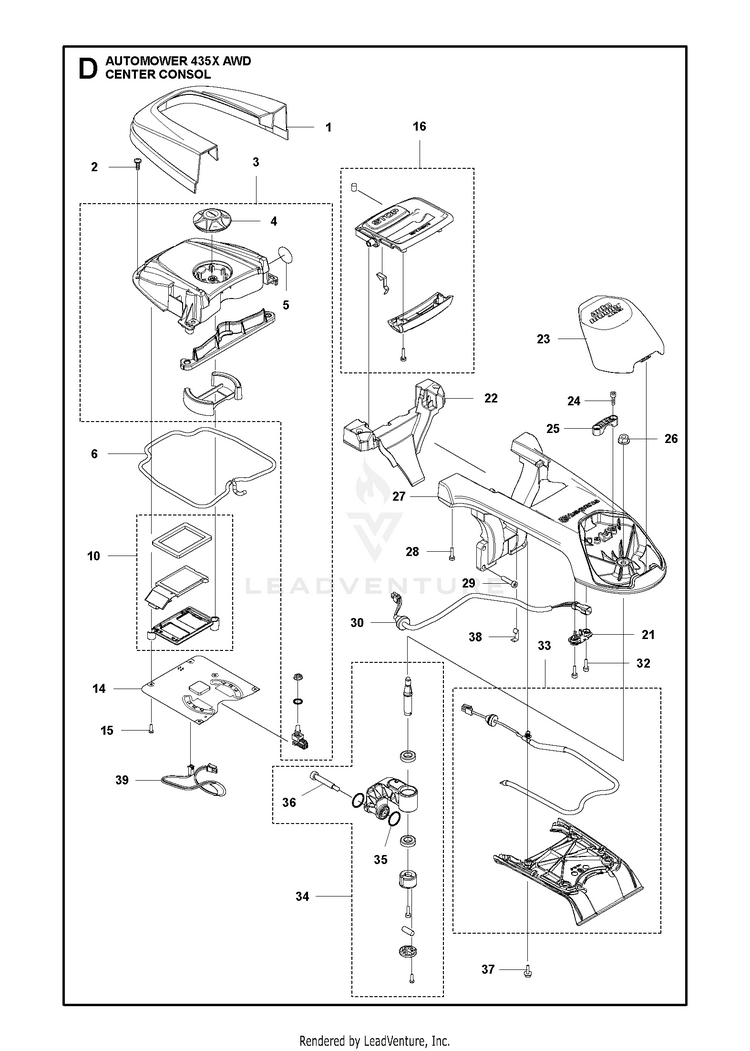

CENTER CONSOL

...
...
3
Covers HUS-597162201
...
5
KIT AIR FILTER KIT 305 - 10 PC Air Filter HUS-577753701
...
38
Clips HUS-597476101
...
32
SCREW HUS-586444901
...
14
Circuits Application Board HUS-591100201
...
2
SCREW ITXPANT ITXPANT HUS-574450101
...
25
CLAMP MAIN CABLE Main Cable HUS-593355202
...
24
SCREW HUS-586444901
...
6
Seals Chassis Upper Front HUS-574874714
...
27
LINK ARM FROM RV H HUS-590944202
...
10
Displays/Signs HUS-597166301
...
21
Clamps HUS-593355101
...
29
SCREW HUS-598570801
...
35
O-RING HUS-740431300
...
28
SCREW ITXSCT PW4.2X18 10.9 ZN HUS-580292901
...
30
Wires HUS-591203201
...
33
Switches HUS-592944002
...
23
Covers HUS-591487102
...
34
Pivots HUS-597166401
...
4
KNOB ASSY 4 Serie HUS-592614203
...
22
Handles HUS-591351701
...
36
Screws HUS-592629001
...
39
NEEDS DESCRIPTION HUS-591452202
...
1
Lids HMI HUS-592614501
...
15
SCREW HUS-503212813
...
37
SCREW ITXSCM WASHER M5X12 T27 HUS-525824401
...
26
NUT W/ WASHER Washer HUS-503220401
...
16
Handles HUS-597162101
