Husqvarna AUTOMOWER 430XH Robotic Lawn Mower

Model: AUTOMOWER 430XH

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

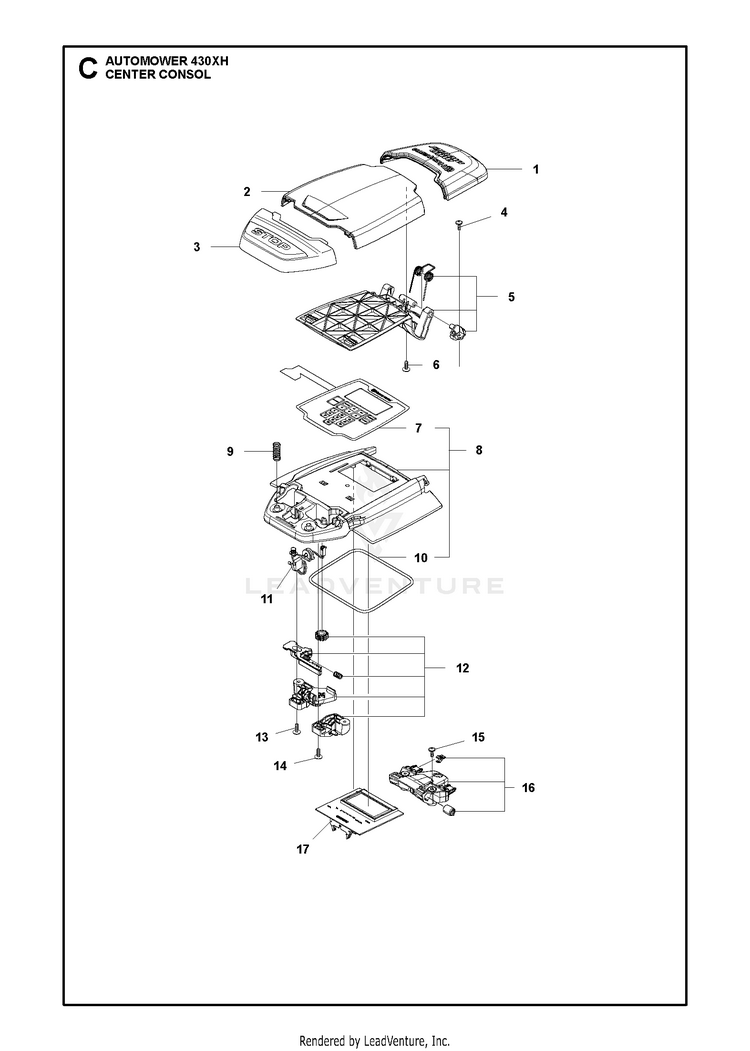

CENTER CONSOL

...
...
14
SCREW 14MM HUS-575543314
...
9
SPRING HUS-535130101
...
7
KEYBOARD 330X HUS-579627902
...
11
SWITCH STOP BUTTON NO ANCHOR Locking Plate Kit HUS-574480302
...
1
COVER FRONT 430XH BLACK HUS-588797507
...
17
PRINTED CIRCUIT ASSY HMI BOARD PCBA HMI HUS-592910401
...
13
SCREW 14MM HUS-575543314
...
6
SCREW 14MM HUS-575543314
...
10
SEALING STRIP 1 pcs, diam 5 mm HUS-574874706
...
15
SCREW 14MM HUS-575543314
...
4
SCREW 14MM HUS-575543314
...
8
COVER KIT DISPLAY 430XH,450XH HUS-583943702
...
12
LOCK KIT HUS-501066001
...
5
HINGE KIT KIT HUS-501065801
...
2
Hatch HUS-529347401
...
3
BUTTON STOP Stop Button HUS-594927301
...
16
SUPPORT KIT FRONT HUS-581620701
