Husqvarna AUTOMOWER 430XH Robotic Lawn Mower

Model: AUTOMOWER 430XH

Back To Assemblies

Save Part Not Listed?

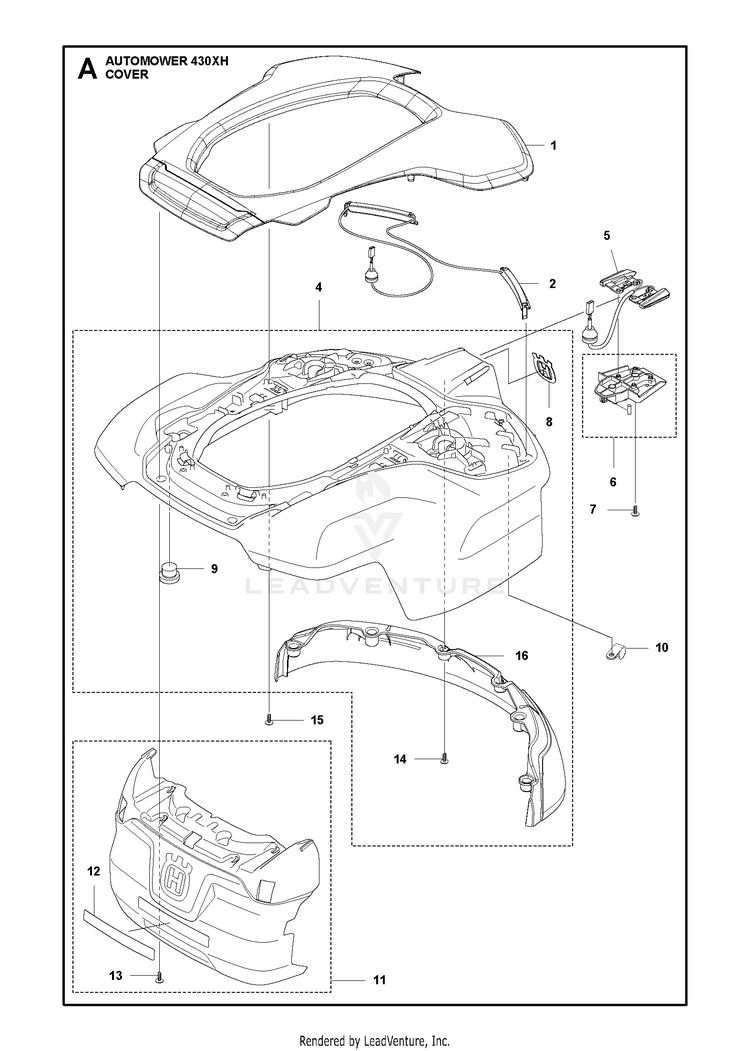

product name

COVER

...
...
13
SCREW ITXPANT HUS-574450101
...
4
BODY ASSY 430XH, 450XH High-Cut HUS-596485401
...
6
HOLDER ASSY 430XH, 450XH HUS-596489901
...
16
BUMPER FRONT HUS-593117401
...
9
CAP SNAPLOC Cap Snaploc HUS-580526801
...
1
COVER Top Cover White HUS-590877011
...
12
LABEL WARNING P15 Label Warning HUS-586359701
...
14
SCREW ITXPANT Front Bumper HUS-574450101
...
8
DECAL HUSQVARNA CROWN HEIGHT 5 Decal Crown HUS-587423501
...
2
WIRING ASSY LED LED Lights HUS-501065101
...
10
CLAMP P-CLIP Clips HUS-501610601
...
15
SCREW ITXPANT Top Cover HUS-574450101
...
11
BUMPER ASSY 430XH,450XH,550H HUS-596489701
...
1
COVER Top Cover Grey HUS-590877010
...
7
SCREW 14MM HUS-575543314
...
1
COVER Top Cover Orange HUS-590877012
...
5
WIRING ASSY CHARGING PLATE GRE Charging Plate Wiring HUS-531144701
